9.5.1 MCP ロードマップ:Server、Client、Capability

MCP は、tools、resources、prompt templates をより標準的に model applications へ接続する protocol layer です。Agent や tools を置き換えるものではなく、capabilities を一貫して expose/use しやすくします。

まず MCP boundary を見る

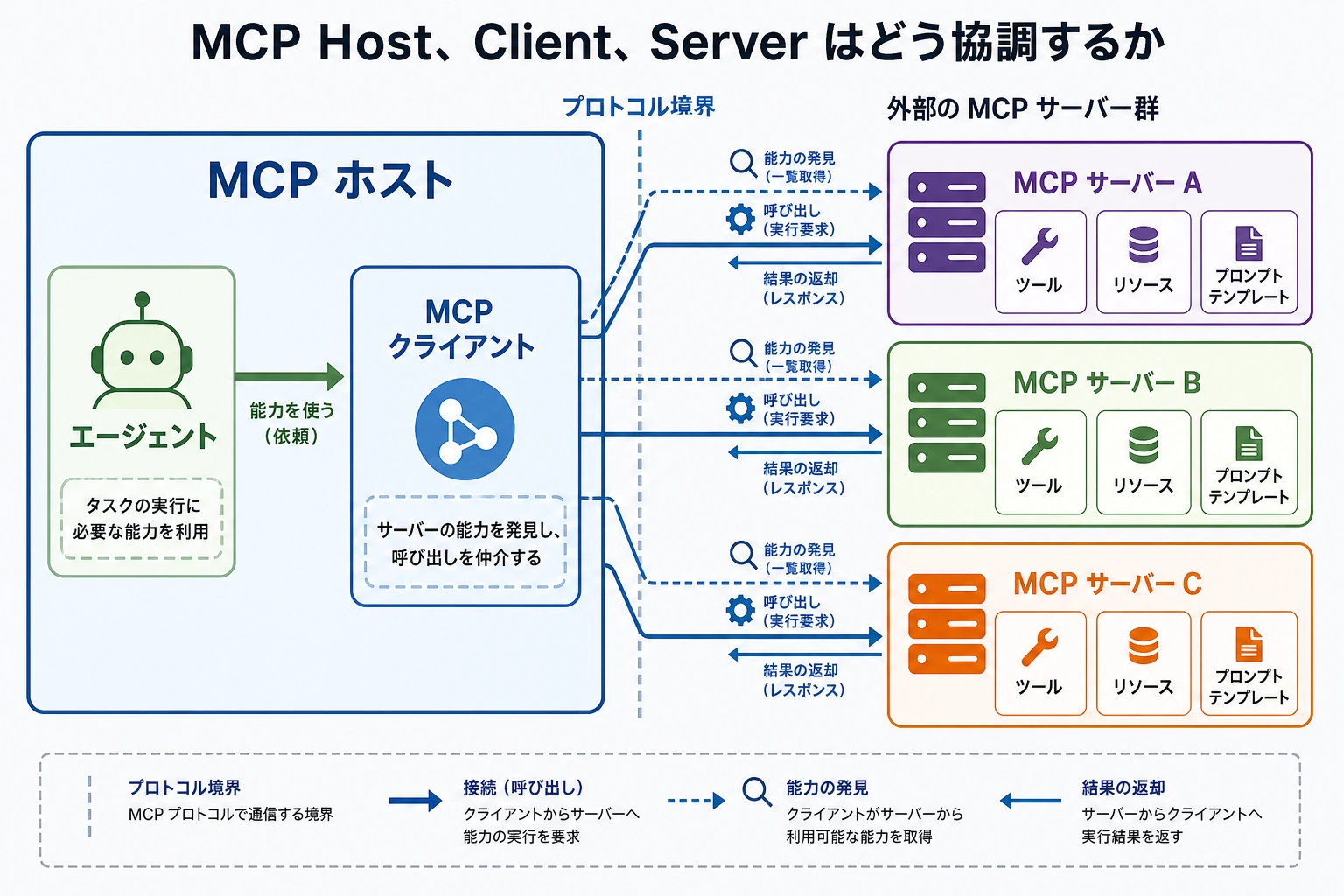

MCP Host Client Server architecture diagram

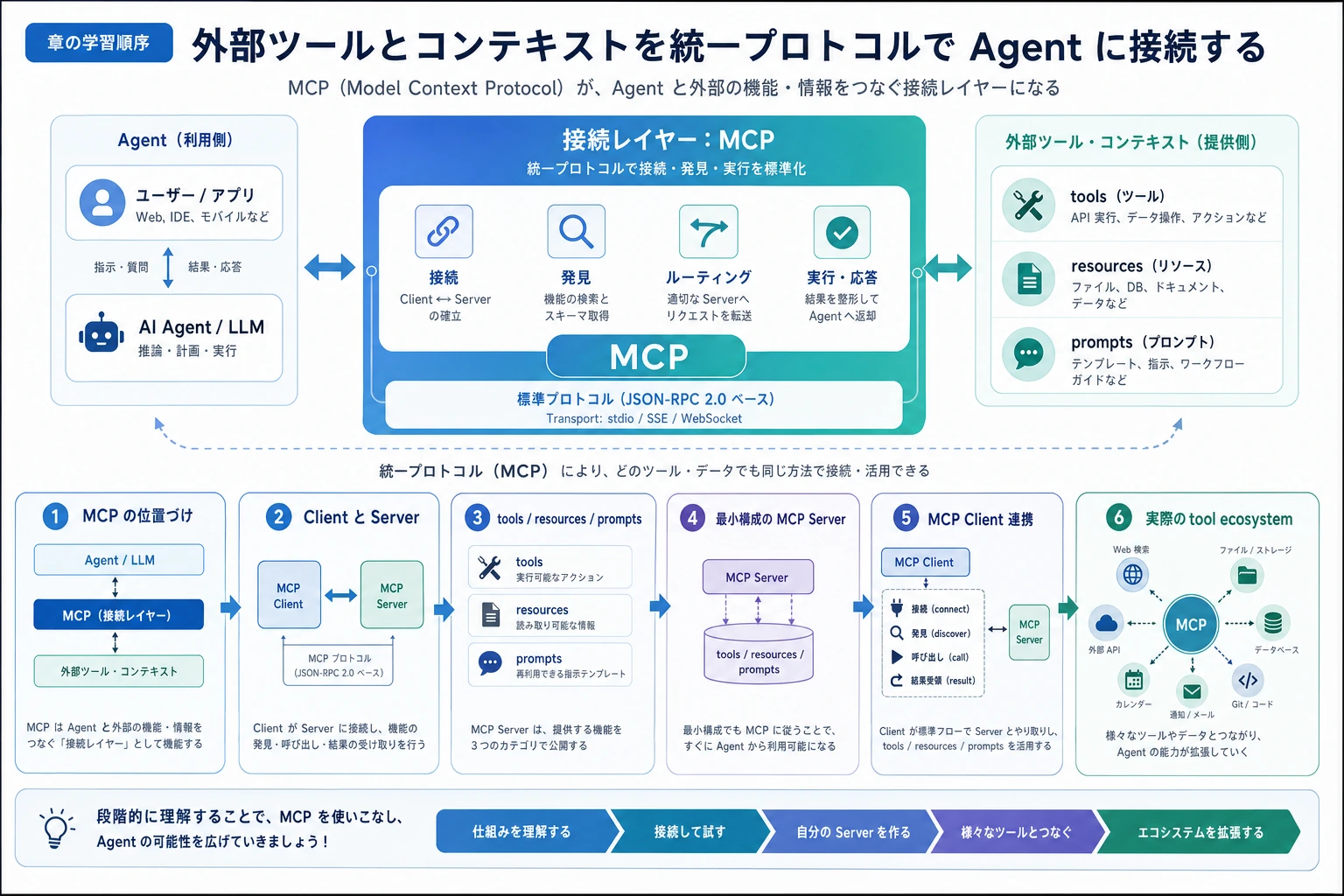

MCP 章の学習順序図

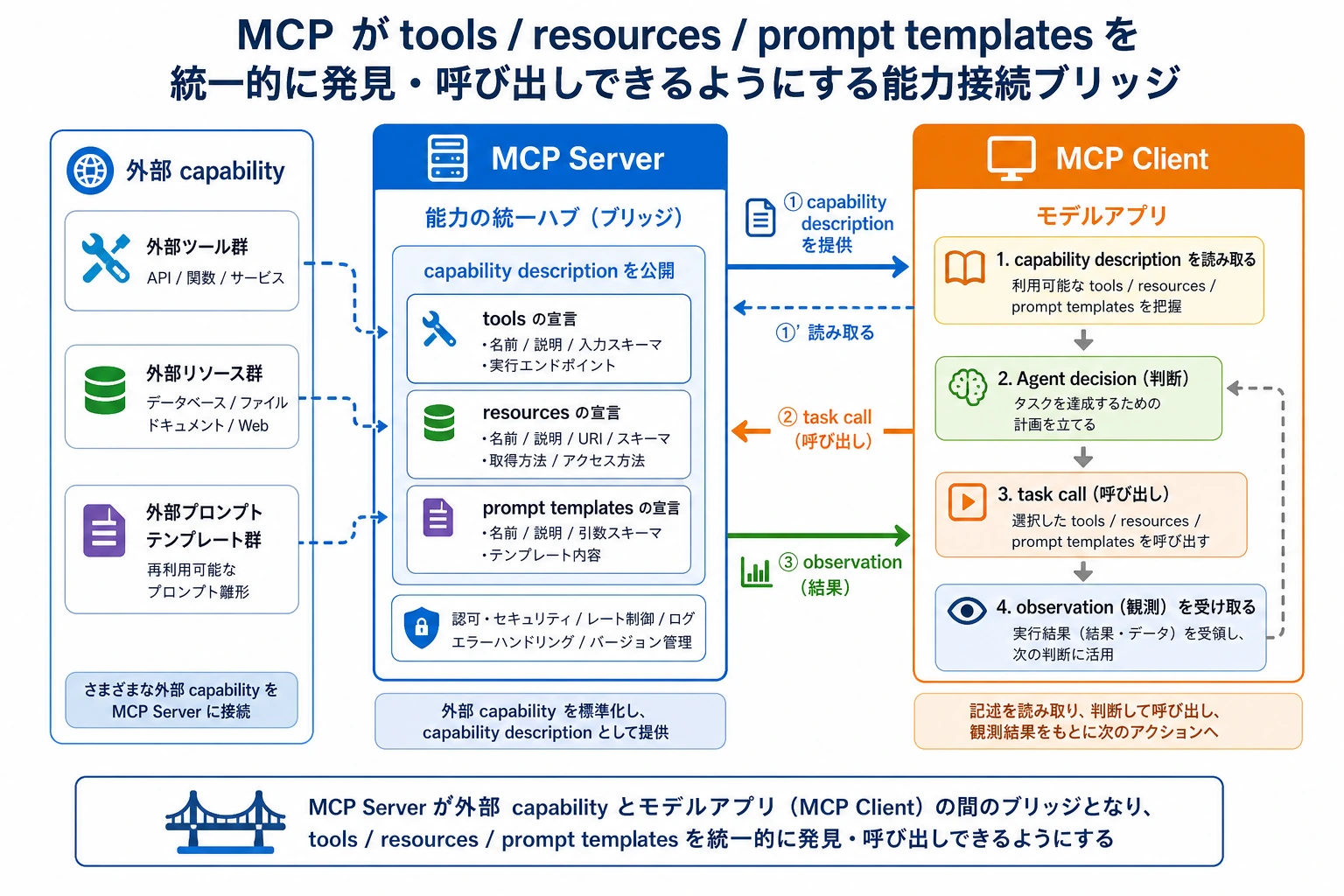

MCP capability access bridge diagram

Function Calling は structured calls に注目します。MCP は external capabilities が protocol を通じて discovered、described、called、governed される方法に注目します。

Capability registry check を動かす

本物の MCP Server を実装する前に、何を expose し、Client が何を call できるか列挙します。

server = {
"tools": ["search_docs"],
"resources": ["course://ch09-agent"],
"prompts": ["study_plan"],
}

client_request = "search_docs"

print("server_ready:", all(server.values()))
print("can_call:", client_request in server["tools"])
print("boundary:", "server exposes, client calls")

出力:

server_ready: True
can_call: True
boundary: server exposes, client calls

boundary が曖昧だと、permissions と debugging も曖昧になります。

この順番で学ぶ

手順読む内容実践アウトプット
1MCP conceptprotocol layer が integration の混乱を減らす理由を説明する
2MCP architectureHost、Client、Server、tools、resources、prompts を区別する
3Server development1 つの capability を明確な input、output、errors で包む
4Client integrationServer capabilities を安全に discover/call する
5EcosystemMCP を IDE、database、browser、knowledge base、Agent につなげる

合格ライン

Host-Client-Server 関係を描き、Server が何を expose し、Client が何を call し、permissions がどこで checked されるか説明できれば、この章は合格です。

出口ミニプロジェクトは course-materials MCP Server design です:1 つの search tool、1 つの resource URI pattern、1 つの prompt template、1 つの failure-handling rule を含めます。
