8 LLM Application Development and RAG

Chapter 7 explained how an LLM produces text. Chapter 8 turns that model into a useful application: connect documents, retrieve evidence, answer with citations, log failures, and improve with an evaluation set.

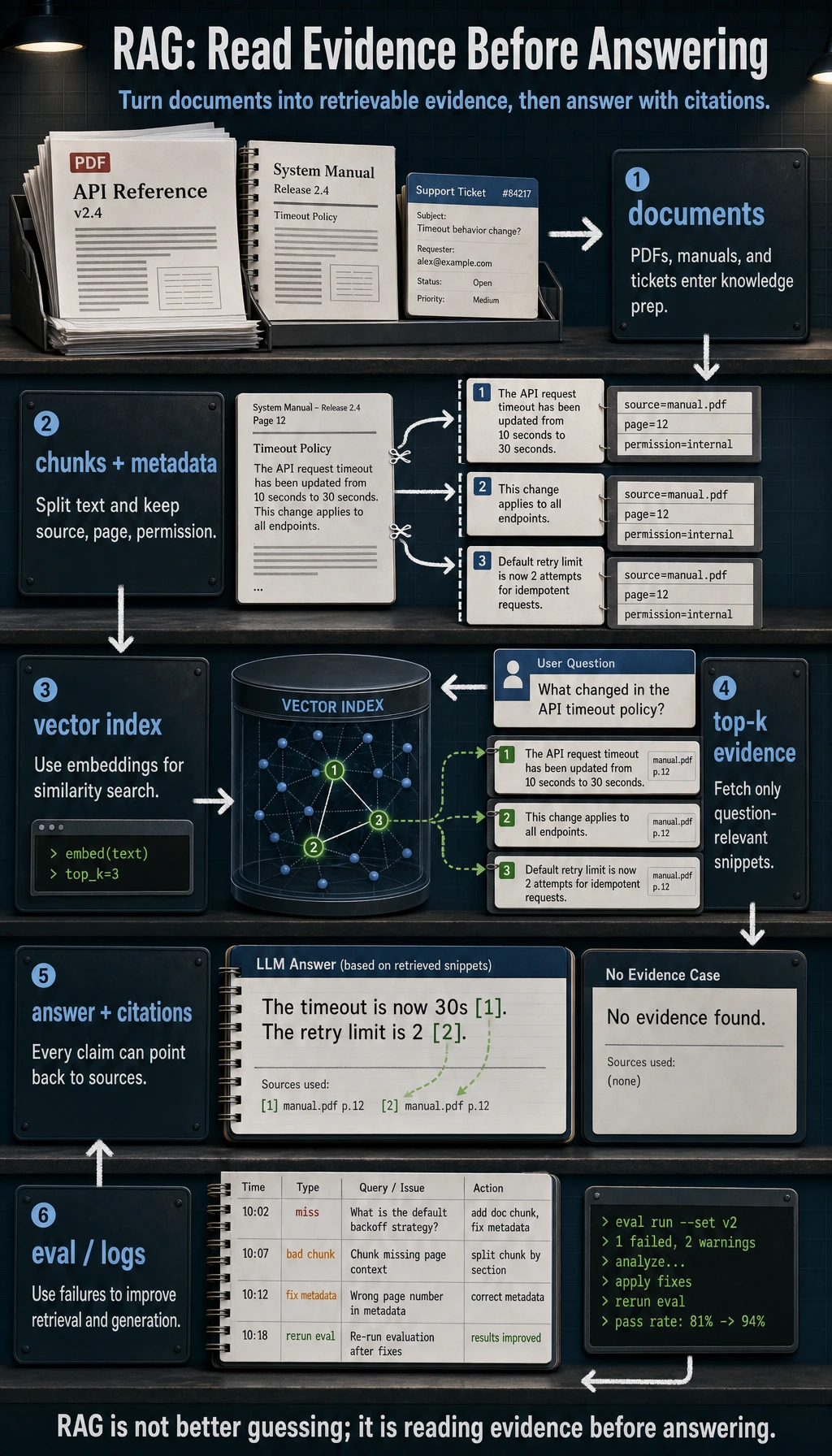

Think of RAG as "read before answering." The model should not guess from memory when the answer must come from your course notes, company documents, product manuals, or private knowledge base.

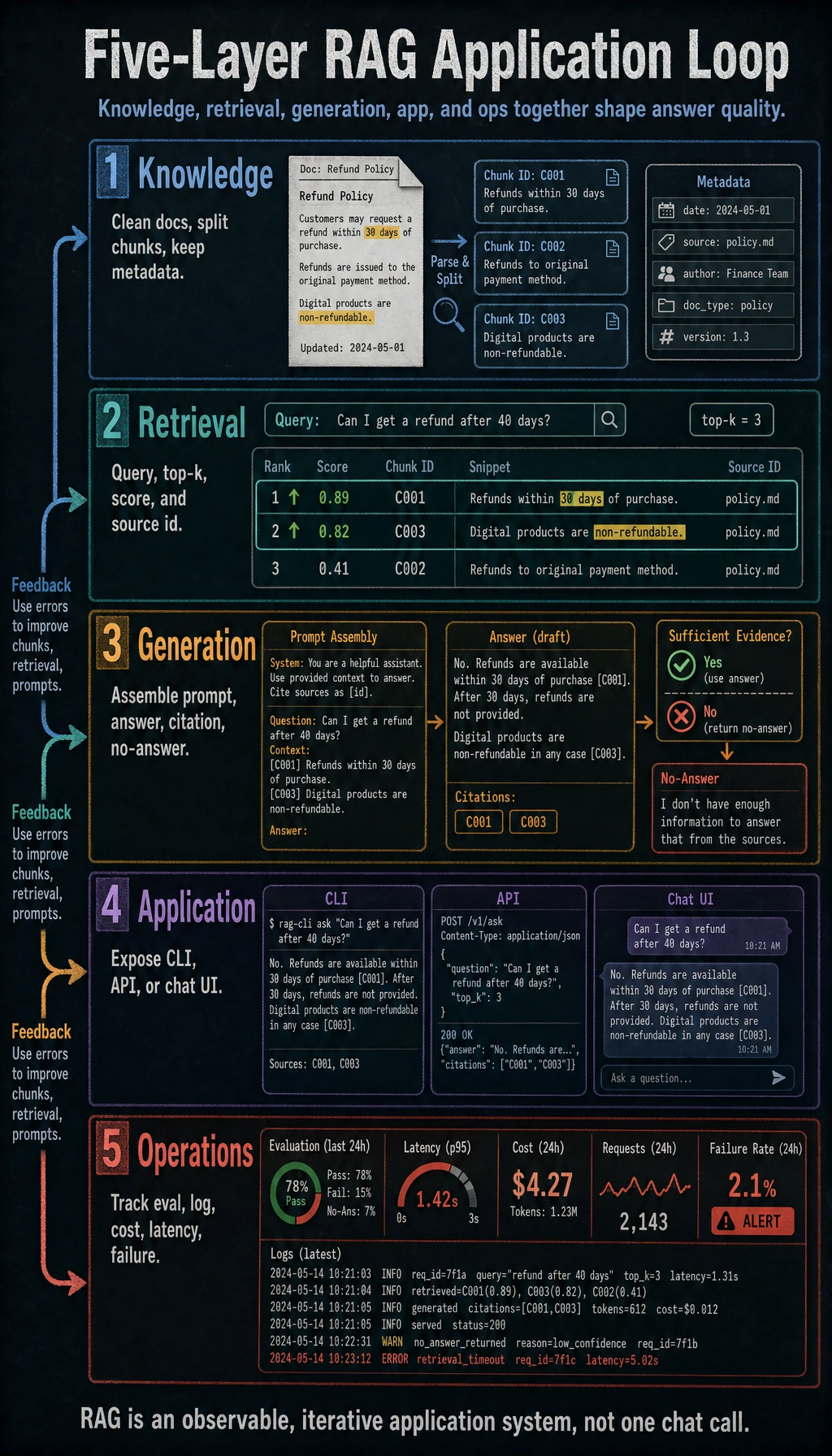

See the RAG Application Loop

Use this loop as the chapter map.

Layer	Job	What you should print or save
Knowledge	Parse documents, clean text, split chunks, keep metadata	chunks.jsonl, source, section, page, version
Retrieval	Find the chunks most relevant to a question	query, top-k chunks, scores, source IDs
Generation	Ask the LLM to answer only from retrieved context	final prompt, answer, citations, no-answer reason
Application	Wrap the flow as CLI, API, chat UI, or internal tool	request, response, error handling, user feedback
Operations	Compare quality, cost, latency, and failures over time	eval set, logs, token cost, latency, failure cases

Learning Order And Task List

Do the workshop after the basics. First make the retrieval chain visible; then replace simple parts with stronger components.

Step	Read	Do	Evidence to keep
8.1	RAG basics, document processing, retrieval, evaluation	Build a tiny document-to-answer loop	chunks, top-k output, cited answer
8.2	Deployment and unified APIs	Understand cloud API, local model, and unified calling layer	one calling note or config comparison
8.3	LLM app development	Wrap the RAG loop with API, tools, dialog, or document parsing	request/response sample and error path
8.4	Engineering practices	Add async, logging, monitoring, API design, or Docker notes	logs, config, deployment checklist
8.5	Stage project	Run 8.5.6 Hands-on: Full Chapter 8 RAG App Workshop	workshop output, one added doc, one added eval case

First Runnable Loop: Tiny RAG Without a Framework

Before LangChain, LlamaIndex, or a vector database, run the smallest possible chain. The goal is not a powerful retriever; the goal is to see every step.

Create ch08_tiny_rag.py and run it with Python 3.10 or later.

import re

docs = [
    {
        "id": "ragops",
        "source": "study-guide.md#ragops",
        "text": "A RAG app needs an evaluation set with fixed questions, expected sources, ideal answers, and failure labels.",
    },
    {
        "id": "chunking",
        "source": "rag-basics.md#chunking",
        "text": "A RAG app splits documents into chunks and keeps source metadata so answers can cite evidence.",
    },
    {
        "id": "agentops",
        "source": "agent-guide.md#trace",
        "text": "Agent systems record tool calls, observations, permissions, and recovery steps.",
    },
]

question = "Why does a RAG app need an evaluation set?"
STOPWORDS = {"a", "an", "the", "why", "does", "with", "and", "so", "can", "be"}


def tokenize(text: str) -> set[str]:
    return set(re.findall(r"[\w\u4e00-\u9fff\u3040-\u30ff]+", text.lower())) - STOPWORDS


query_tokens = tokenize(question)
ranked = sorted(
    (
        (len(query_tokens & tokenize(doc["text"])), doc)
        for doc in docs
    ),
    key=lambda item: item[0],
    reverse=True,
)

print("question:", question)
print("top chunks:")
for score, doc in ranked[:2]:
    print(f"- {doc['id']} score={score} source={doc['source']}")

best = ranked[0][1]
answer = (
    "Use a fixed evaluation set so every RAG change can be compared "
    f"against the same questions and expected sources. [{best['source']}]"
)
print("answer:", answer)

Expected output:

question: Why does a RAG app need an evaluation set?
top chunks:
- ragops score=4 source=study-guide.md#ragops
- chunking score=2 source=rag-basics.md#chunking
answer: Use a fixed evaluation set so every RAG change can be compared against the same questions and expected sources. [study-guide.md#ragops]

Operation tip: add one new document, ask one new question, and print the top-k chunks before reading the final answer. If the evidence is wrong, the answer cannot be trusted.

Depth Ladder

Level	What you can prove
Minimum pass	You can print chunks, top-k scores, answer, and citation for one question.
Project-ready	You can add metadata, handle empty retrieval with a no-answer response, and compare changes on a fixed eval set.
Deeper check	You can separate document, chunking, retrieval, reranking, generation, citation, latency, and cost failures.

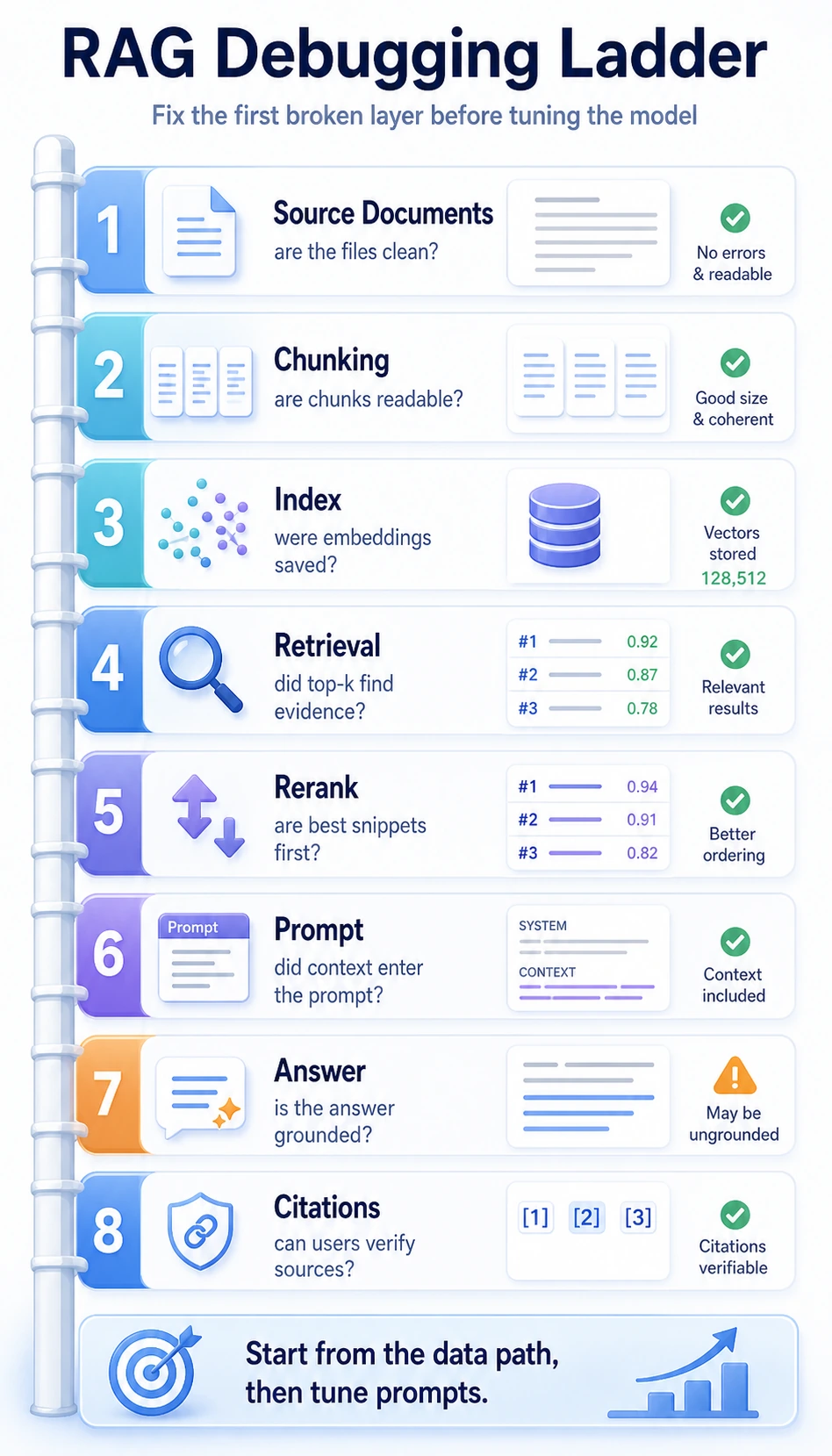

Debug Bad RAG Answers

When the answer is bad, locate the failing layer before changing the model.

Symptom	Print first	Likely fix
The answer has no source	final prompt and retrieved chunks	keep source IDs in chunks and require citations
The source document has the answer but retrieval misses it	original text search and chunk text	adjust chunk size, add keywords, use hybrid search
Many chunks are recalled but the best one is not first	top-k scores and manual relevance labels	add reranking or rule-based filtering
The answer uses old information	document version and index build time	rebuild index and add regression tests
You cannot tell whether quality improved	before/after answers on the same questions	create a fixed evaluation set

Common Failures

• Treating "connected a vector database" as "RAG is done." RAG quality also depends on document quality, chunking, ranking, Prompt, citations, and evaluation.
• Adding frameworks before understanding the chain. Frameworks are easier after you can print query, chunks, prompt, answer, and source.
• Letting the model answer when retrieval is empty. A useful RAG app must say "I do not know from the provided sources."
• Forgetting metadata. Without source, page, section, and version, citations and debugging become weak.
• Optimizing by feeling. Use the same evaluation questions every time you change chunking, retrieval, reranking, or Prompt.

Pass Check

Before entering Chapter 9, you should be able to:

• explain why RAG solves private, fresh, and citable knowledge problems;
• run the tiny RAG script and inspect top-k chunks before the answer;
• create chunks with source metadata and cite those sources in the answer;
• separate document, chunking, retrieval, generation, citation, and deployment failures;
• run the full Chapter 8 workshop, add one document, add one evaluation case, and record the result in a README.

For a printable checklist, use 8.0 Learning Checklist. For the guided project, start with 8.5.6 Hands-on: Full Chapter 8 RAG App Workshop.
