3.2.3 Array Indexing and Slicing
Learning Objectives
- Master basic indexing and slicing for 1D and multi-dimensional arrays
- Learn how to use boolean indexing for conditional filtering
- Understand Fancy Indexing
- Understand the difference between View and Copy
Indexing and Slicing 1D Arrays
Indexing in 1D arrays is basically the same as in Python lists:
import numpy as np
arr = np.array([10, 20, 30, 40, 50, 60, 70, 80])
# ===== Basic indexing =====
print(arr[0]) # 10 first element
print(arr[3]) # 40 fourth element
print(arr[-1]) # 80 last element
print(arr[-2]) # 70 second-to-last element
# ===== Slicing [start:stop:step] =====
print(arr[2:5]) # [30 40 50] indices 2 to 4
print(arr[:3]) # [10 20 30] first 3 elements
print(arr[5:]) # [60 70 80] from index 5 to the end
print(arr[::2]) # [10 30 50 70] take every other element
print(arr[::-1]) # [80 70 60 50 40 30 20 10] reverse
Indexing and Slicing 2D Arrays
2D arrays are accessed using [row, column]:
matrix = np.array([
[1, 2, 3, 4],
[5, 6, 7, 8],
[9, 10, 11, 12],
[13, 14, 15, 16]
])
Access a Single Element
print(matrix[0, 0]) # 1 row 0, column 0
print(matrix[1, 2]) # 7 row 1, column 2
print(matrix[-1, -1]) # 16 last row, last column
Access an Entire Row/Column
print(matrix[0]) # [1 2 3 4] row 0 (entire row)
print(matrix[0, :]) # [1 2 3 4] same as above, more explicit
print(matrix[:, 0]) # [ 1 5 9 13] column 0 (entire column)
print(matrix[:, -1]) # [ 4 8 12 16] last column
Row and Column Slicing
# Get the first 2 rows and first 3 columns
sub = matrix[:2, :3]
print(sub)
# [[1 2 3]
# [5 6 7]]
# Get rows 1~2 and columns 2~3
sub2 = matrix[1:3, 2:4]
print(sub2)
# [[ 7 8]
# [11 12]]
# Take every other row (rows 0 and 2)
sub3 = matrix[::2]
print(sub3)
# [[ 1 2 3 4]
# [ 9 10 11 12]]
Visual Guide to 2D Indexing
matrix =
Col 0 Col 1 Col 2 Col 3
Row 0 [ 1 2 3 4 ]
Row 1 [ 5 6 7 8 ]
Row 2 [ 9 10 11 12 ]
Row 3 [ 13 14 15 16 ]
matrix[1, 2] → 7 (row 1, column 2)
matrix[:2, :3] → [[1,2,3], [5,6,7]] (first 2 rows, first 3 columns)
matrix[:, 1] → [2, 6, 10, 14] (all rows, column 1)
Boolean Indexing: Conditional Filtering
This is one of NumPy's most powerful features — use conditional expressions to filter data directly!
Basic Idea
arr = np.array([15, 23, 8, 42, 31, 5, 19, 27])
# Step 1: a condition expression generates a boolean array
mask = arr > 20
print(mask) # [False True False True True False False True]
# Step 2: use the boolean array as an index to select elements where the value is True
result = arr[mask]
print(result) # [23 42 31 27]
# Usually combined into one line
print(arr[arr > 20]) # [23 42 31 27]
Common Filtering Examples
scores = np.array([85, 92, 78, 65, 95, 43, 88, 72, 55, 90])
# Passing scores (>= 60)
print(scores[scores >= 60]) # [85 92 78 65 95 88 72 90]
# Excellent scores (>= 90)
print(scores[scores >= 90]) # [92 95 90]
# Failing scores (< 60)
print(scores[scores < 60]) # [43 55]
# Scores between 60 and 80 (combine multiple conditions with &, and add parentheses around each condition)
print(scores[(scores >= 60) & (scores <= 80)]) # [78 65 72]
# Scores below 60 or above 90 (combine multiple conditions with |)
print(scores[(scores < 60) | (scores > 90)]) # [92 95 43 55]
# Negation (~)
print(scores[~(scores >= 60)]) # [43 55] equivalent to scores[scores < 60]
Syntax for Multiple Conditions
When combining conditions in NumPy, you cannot use Python's and / or. You must use:
&instead ofand(and)|instead ofor(or)~instead ofnot(not)- Parentheses are required around each condition
# ❌ Wrong
arr[arr > 5 and arr < 20]
# ✅ Correct
arr[(arr > 5) & (arr < 20)]
Boolean Indexing with 2D Arrays
matrix = np.array([
[85, 92, 78],
[65, 95, 43],
[88, 72, 90]
])
# Find all scores greater than 80
print(matrix[matrix > 80]) # [85 92 95 88 90]
# Note: the result becomes a 1D array!
# Change failing scores to 60 (conditional assignment)
matrix[matrix < 60] = 60
print(matrix)
# [[85 92 78]
# [65 95 60] ← 43 was changed to 60
# [88 72 90]]
Fancy Indexing
Fancy indexing lets you use an integer array as the index to retrieve multiple elements at specific positions at once:
Fancy Indexing in 1D
arr = np.array([10, 20, 30, 40, 50, 60, 70])
# Get elements at indices 1, 3, 5
print(arr[[1, 3, 5]]) # [20 40 60]
# Repeated selection is allowed
print(arr[[0, 0, 2, 2]]) # [10 10 30 30]
# Any order is allowed
print(arr[[6, 4, 2, 0]]) # [70 50 30 10]
Fancy Indexing in 2D
matrix = np.array([
[1, 2, 3, 4],
[5, 6, 7, 8],
[9, 10, 11, 12]
])
# Get row 0 and row 2
print(matrix[[0, 2]])
# [[ 1 2 3 4]
# [ 9 10 11 12]]
# Get specific positions: the three elements (0,1), (1,2), (2,3)
rows = [0, 1, 2]
cols = [1, 2, 3]
print(matrix[rows, cols]) # [ 2 7 12]

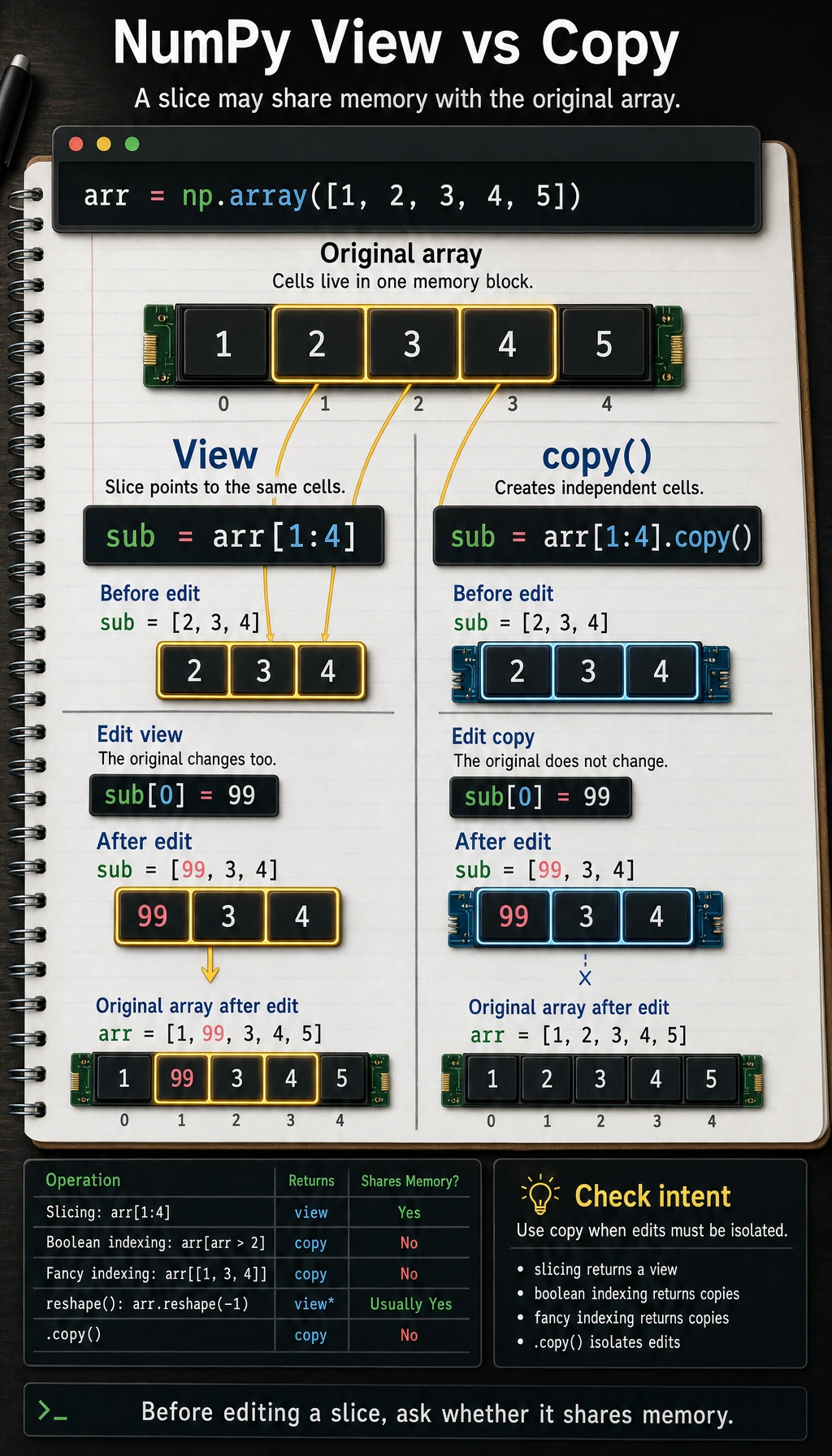

View vs Copy
This is a common beginner trap — NumPy slicing returns a view, not a copy!
View: Changes Affect the Original Array
arr = np.array([1, 2, 3, 4, 5])
# Slicing returns a view
sub = arr[1:4]
print(sub) # [2 3 4]
# Changing sub also changes arr!
sub[0] = 99
print(sub) # [99 3 4]
print(arr) # [ 1 99 3 4 5] ← the original array changed too!
Copy: Independent from the Original
arr = np.array([1, 2, 3, 4, 5])
# Use copy() to create an independent copy
sub = arr[1:4].copy()
print(sub) # [2 3 4]
# Changing sub does not affect arr
sub[0] = 99
print(sub) # [99 3 4]
print(arr) # [1 2 3 4 5] ← the original array is unchanged
When Is It a View? When Is It a Copy?
| Operation | Return Type | Example |
|---|---|---|
| Slicing | View | arr[2:5] |
| Boolean indexing | Copy | arr[arr > 3] |
| Fancy indexing | Copy | arr[[1, 3, 5]] |
.copy() | Copy | arr[2:5].copy() |
.reshape() | View (usually) | arr.reshape(2, 3) |
Practical Advice
If you're not sure whether an operation returns a view or a copy, and you don't want to accidentally modify the original array, add .copy() — safety first.
safe_sub = arr[1:4].copy() # always safe
Hands-on Example: Analyzing Data with Indexing
Back to the Titanic scenario, let's use NumPy indexing to analyze the data:
import numpy as np
# Simulated data for 10 passengers
ages = np.array([22, 38, 26, 35, 35, np.nan, 54, 2, 27, 14])
fares = np.array([7.25, 71.28, 7.92, 53.10, 8.05, 8.46, 51.86, 21.08, 11.13, 30.07])
survived = np.array([0, 1, 1, 1, 0, 0, 0, 0, 1, 1])
# Find the average fare of survivors
survivor_fares = fares[survived == 1]
print(f"Average fare of survivors: ${np.mean(survivor_fares):.2f}")
# Find fares for passengers older than 30 (exclude NaN first)
valid_mask = ~np.isnan(ages) # exclude NaN
age_mask = ages > 30
combined_mask = valid_mask & age_mask
print(f"Fares for passengers over 30: {fares[combined_mask]}")
# Find the indices of the 3 passengers with the highest fares
top3_indices = np.argsort(fares)[-3:][::-1] # sort, take the last 3, then reverse
print(f"Top 3 fare indices: {top3_indices}")
print(f"Corresponding fares: {fares[top3_indices]}")
Summary
| Indexing Method | Syntax | Return Type | Use Case |
|---|---|---|---|
| Basic indexing | arr[i], arr[i, j] | Element value | Get a single element |
| Slicing | arr[start:stop:step] | View | Get a continuous region |
| Boolean indexing | arr[arr > 5] | Copy | Conditional filtering |
| Fancy indexing | arr[[1, 3, 5]] | Copy | Get non-contiguous positions |
Practice
Exercise 1: Basic Slicing
arr = np.arange(1, 21) # [1, 2, 3, ..., 20]
# 1. Get the first 5 elements
# 2. Get all elements at odd positions (indices 1, 3, 5, ...)
# 3. Get the last 3 elements
# 4. Reverse the array
Exercise 2: 2D Slicing
matrix = np.arange(1, 26).reshape(5, 5)
print(matrix)
# [[ 1 2 3 4 5]
# [ 6 7 8 9 10]
# [11 12 13 14 15]
# [16 17 18 19 20]
# [21 22 23 24 25]]
# 1. Get the middle 3×3 submatrix
# 2. Get all elements in the second column
# 3. Get the diagonal elements [1, 7, 13, 19, 25] (hint: use fancy indexing)
Exercise 3: Boolean Indexing in Practice
# Math scores for 20 students in a class
math_scores = np.array([
78, 92, 65, 88, 45, 95, 72, 81, 56, 90,
83, 67, 94, 73, 85, 60, 98, 77, 69, 87
])
# 1. Find all failing scores (< 60)
# 2. Find all scores between 80 and 90 (inclusive)
# 3. Compute the average score of passing students
# 4. Change all failing scores to 60
# 5. Compute the updated average score
