8.1.3 Document Processing and Vectorization

Learning Objectives

By the end of this section, you will be able to:

• Understand why RAG performance depends heavily on preprocessing
• Build intuition for document cleaning, chunking, overlap, and metadata
• Write a simple runnable example of chunking and retrieval
• Understand what “vectorization” is actually doing

---

Why not just “drop the document into RAG”?

Because real documents are often long, messy, and mixed together.

For example, a PDF may contain:

• Headers and footers
• Table of contents
• Blank lines
• Heading hierarchy
• Tables
• Repeated text

If you feed it to the model as-is, common problems include:

• The context is too long and does not fit
• Important points get buried in long text and are hard to retrieve
• Too much noise hurts retrieval quality

So document processing is really doing one thing:

Organizing materials into knowledge chunks that the model can find more easily and use more effectively.

---

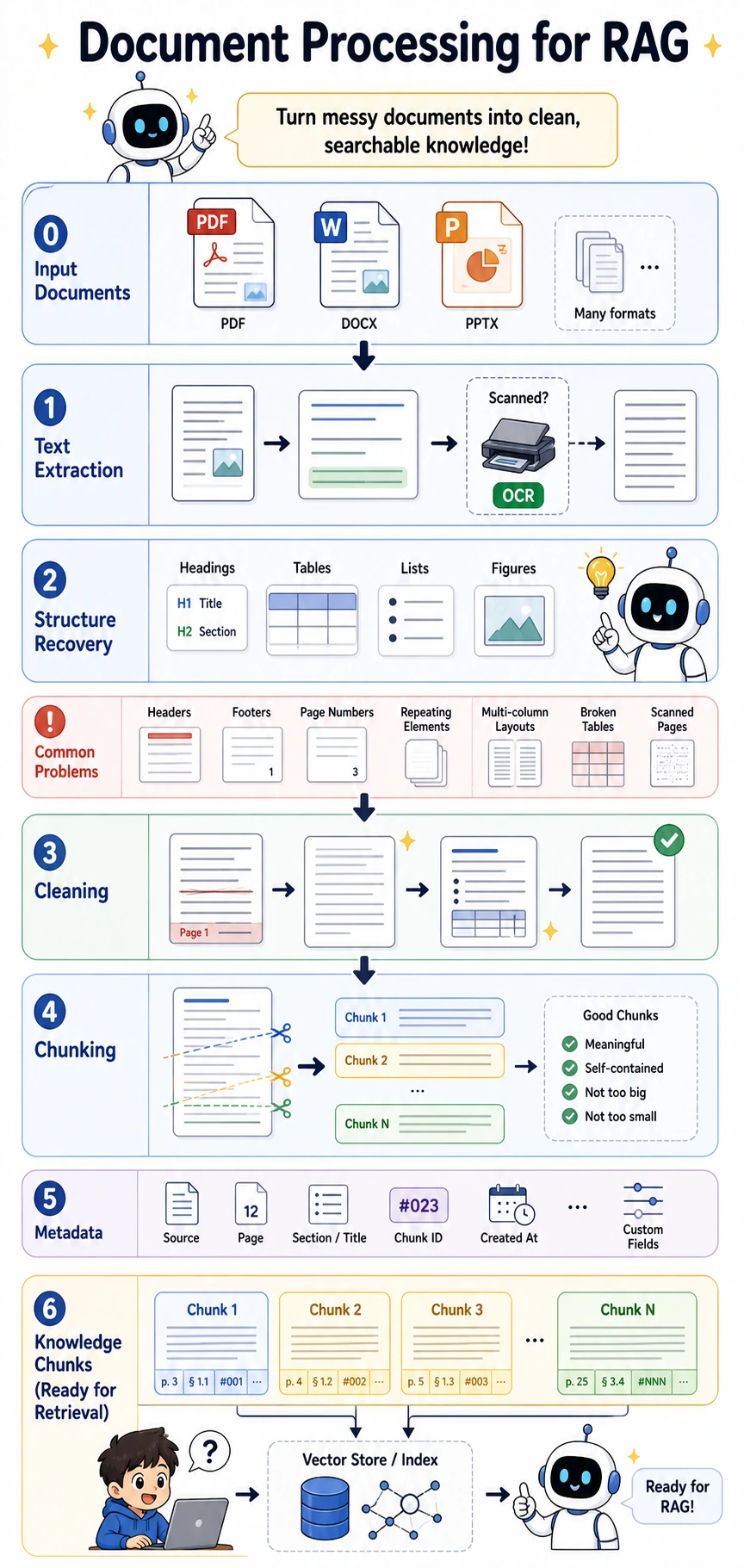

The 4 common steps in document processing

Cleaning

Remove irrelevant noise, such as:

• Extra spaces
• Page numbers
• Repeated headings

Chunking

Split long text into small pieces suitable for retrieval.

Adding metadata

Attach information to each chunk, such as:

• Source file
• Title
• Page number
• Tags

Vectorization

Turn text chunks into vectors that can be used for similarity retrieval.

OCR, short for Optical Character Recognition, is the step that turns scanned pages or screenshots into text before cleaning and chunking.

---

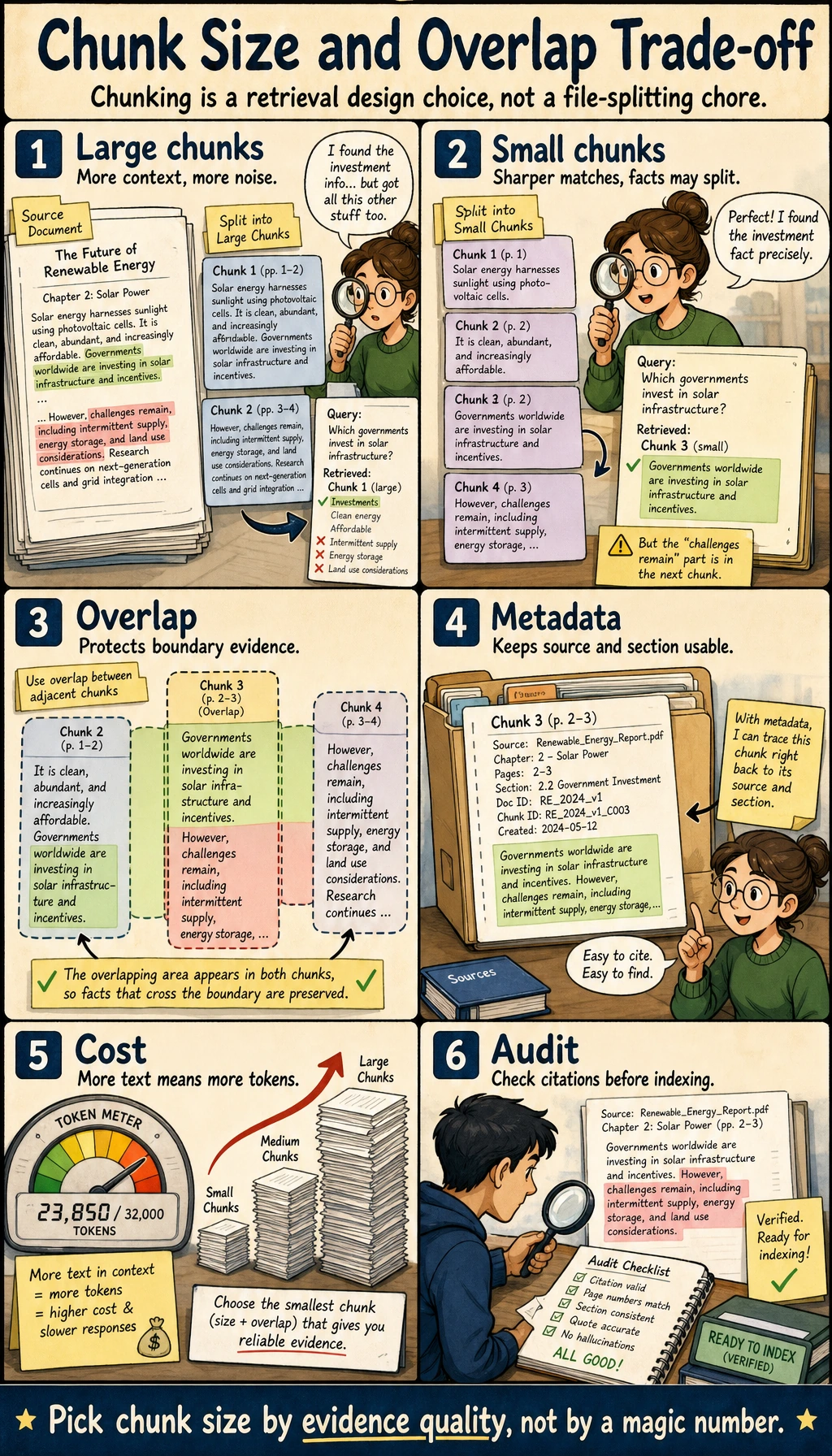

Why is chunking so important?

Chunk size is a lot like deciding how much content to write on one flashcard when taking notes.

• Too large: too much content in one piece, retrieval becomes less precise
• Too small: not enough context, answers become fragmented

There is no single best setting, but you should always tune it for the task.

Think of it like this:

When making notes for an open-book exam, you would not paste the whole book into one giant poster, and you would not cut every single word into its own slip of paper.

Reading hint

Start by looking at the central idea of “evidence completeness”: chunks that are too large make retrieval blunt, chunks that are too small cut evidence apart, and the value of overlap is to leave some buffer for information near boundaries.

---

A minimal runnable chunking example

import re

text = """
Refund policy:
If your learning progress is below 20% within 7 days after purchase, you can apply for a refund.
After 7 days, unconditional refunds are no longer supported.

Certificate description:
After completing all required items and passing the final test, you can receive a completion certificate.

Learning order:
It is recommended to study Python, data analysis, and machine learning first, and then move on to deep learning and large models.
""".strip()

def split_into_sentences(text):
    parts = re.split(r"[。！？.!?\\n]+", text)
    return [p.strip() for p in parts if p.strip()]

sentences = split_into_sentences(text)
print("Sentence list:")
for s in sentences:
    print("-", s)

Expected output:

Sentence list:
- Refund policy:
- If your learning progress is below 20% within 7 days after purchase, you can apply for a refund
- After 7 days, unconditional refunds are no longer supported
- Certificate description:
- After completing all required items and passing the final test, you can receive a completion certificate
- Learning order:
- It is recommended to study Python, data analysis, and machine learning first, and then move on to deep learning and large models

If the sentences are already fairly short, you can use each sentence directly as a chunk. But more often, we combine several sentences into one chunk.

---

Chunking with overlap

Why do many RAG systems use chunk overlap?

Because information may land right on a chunk boundary. Adding a little overlap reduces the chance that context gets cut off.

def chunk_sentences(sentences, chunk_size=2, overlap=1):
    if chunk_size - overlap <= 0:
        raise ValueError("chunk_size must be greater than overlap")

    chunks = []
    start = 0
    while start < len(sentences):
        end = start + chunk_size
        chunk = " ".join(sentences[start:end])
        chunks.append(chunk)
        start += chunk_size - overlap
    return chunks

chunks = chunk_sentences(sentences, chunk_size=2, overlap=1)

print("Chunking result:")
for i, chunk in enumerate(chunks):
    print(f"[chunk {i}] {chunk}")

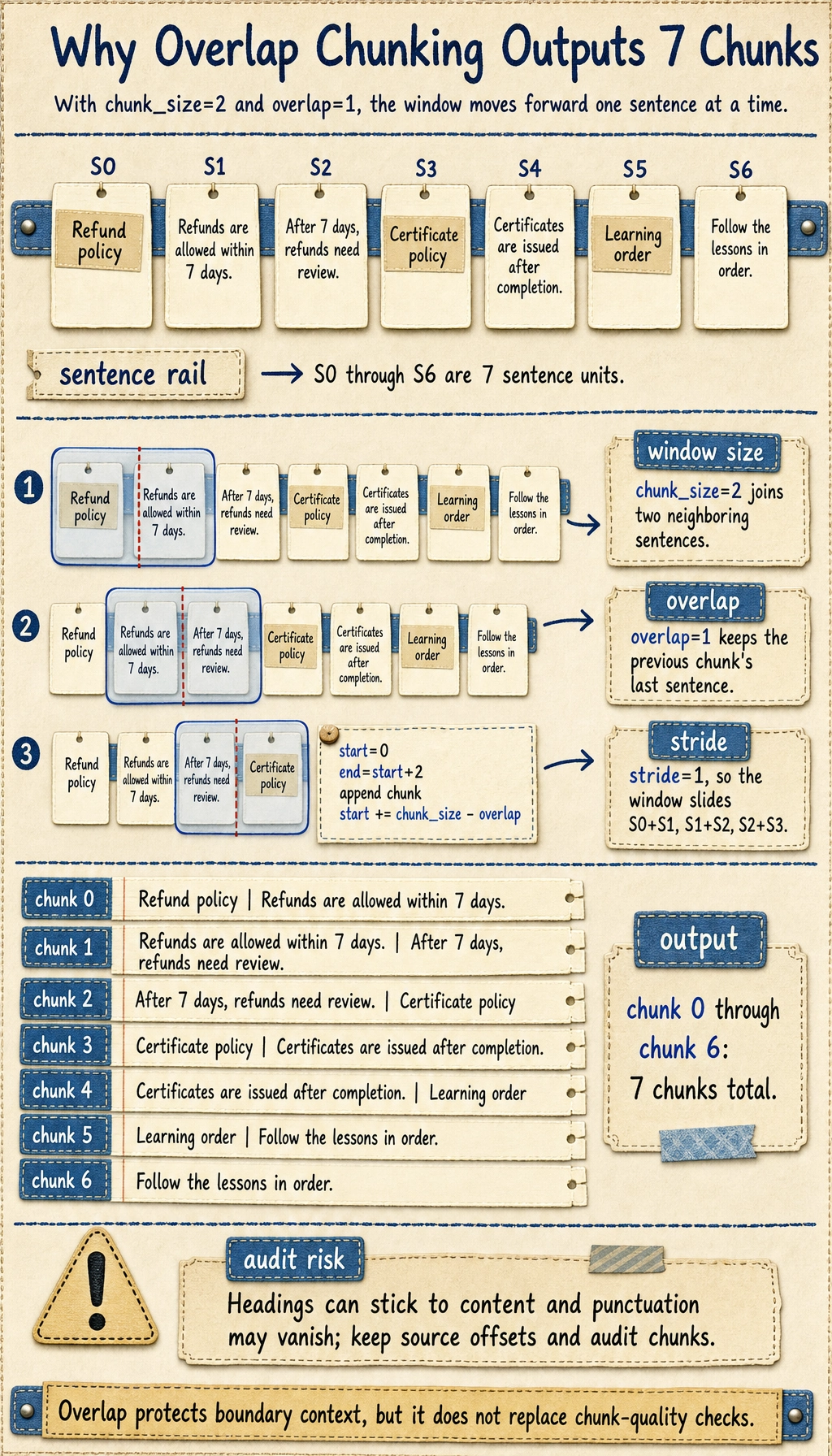

Expected output:

Chunking result:
[chunk 0] Refund policy: If your learning progress is below 20% within 7 days after purchase, you can apply for a refund
[chunk 1] If your learning progress is below 20% within 7 days after purchase, you can apply for a refund After 7 days, unconditional refunds are no longer supported
[chunk 2] After 7 days, unconditional refunds are no longer supported Certificate description:
[chunk 3] Certificate description: After completing all required items and passing the final test, you can receive a completion certificate
[chunk 4] After completing all required items and passing the final test, you can receive a completion certificate Learning order:
[chunk 5] Learning order: It is recommended to study Python, data analysis, and machine learning first, and then move on to deep learning and large models
[chunk 6] It is recommended to study Python, data analysis, and machine learning first, and then move on to deep learning and large models

This output also shows a real limitation of naive chunking: headings can stick to nearby content, and punctuation may be stripped. In production, keep source offsets and run a small chunk audit before indexing.

---

Why is metadata important?

Many beginners focus only on the text content and ignore metadata. But metadata often directly affects retrieval and display quality.

Common metadata for a chunk includes:

• source: which file it came from
• section: which section it belongs to
• page: which page it came from
• tags: what topic it belongs to

For example:

chunks_with_meta = [
    {
        "text": "If your learning progress is below 20% within 7 days after purchase, you can apply for a refund",
        "source": "course_policy.pdf",
        "section": "Refund Policy",
        "page": 3
    },
    {
        "text": "After completing all required items and passing the final test, you can receive a completion certificate",
        "source": "course_policy.pdf",
        "section": "Certificate Description",
        "page": 5
    }
]

for item in chunks_with_meta:
    print(item)

The value of metadata is that it:

• Makes filtering easier
• Makes source citation easier
• Makes later UI display easier

---

If your goal is a “knowledge-base-driven courseware generation assistant,” you need to think one step further about chunking

This kind of project is very different from a normal FAQ Q&A system:

• You do not just want to “find relevant passages”
• You also want to reorganize the materials into “knowledge points / examples / exercises”

So when you first design the chunks, do not think only about length. Also think about “content type.”

A more stable default approach is usually:

Content type	Better chunking strategy
Concept definition	Keep the full definition and formula intact; do not split it
Example explanation	Keep the problem statement and solution process in the same chunk as much as possible
Exercise	One question per chunk, so it is easy to extract later
Chapter summary	Keep the heading and key bullet points

This table is important because it helps beginners realize:

Chunking is not just a fixed text operation; it actually serves the downstream generation goal.

Reading hint

Courseware generation is most likely to fail when it “finds the text but does not know where to place it.” When looking at the diagram, focus on the topic, content_type, source_origin, and page_or_slide fields. They determine whether the system can reliably assemble knowledge points, examples, and exercises later.

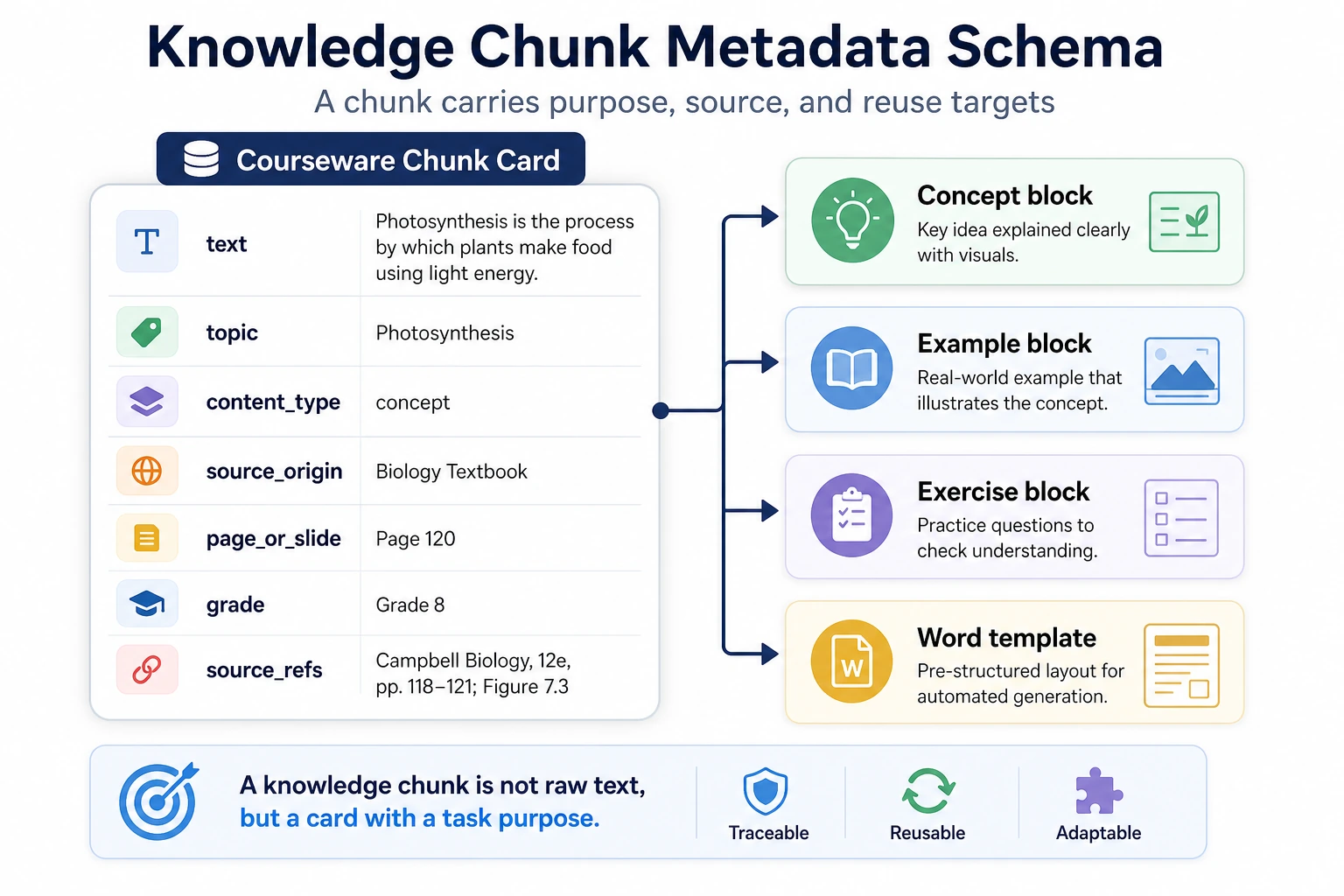

A knowledge chunk example that looks more like a courseware project

courseware_chunks = [
    {
        "topic": "Discount word problems",
        "content_type": "concept",
        "section": "Knowledge Review",
        "page": 1,
        "text": "Discount = original price × discount rate",
    },
    {
        "topic": "Discount word problems",
        "content_type": "example",
        "section": "Example Explanation",
        "page": 2,
        "text": "A product has an original price of 100 yuan. What is the price after a 20% discount?",
    },
    {
        "topic": "Discount word problems",
        "content_type": "exercise",
        "section": "Class Exercise",
        "page": 3,
        "text": "A piece of clothing costs 80 yuan originally. How much is it after a 30% discount?",
    },
]

for item in courseware_chunks:
    print(item["content_type"], "->", item["text"])

The most important thing beginners should notice here is:

• Under the same topic, knowledge chunks should also be split into concepts, examples, and exercises
• Then, when generating Word courseware later, the system will know what belongs in which section

---

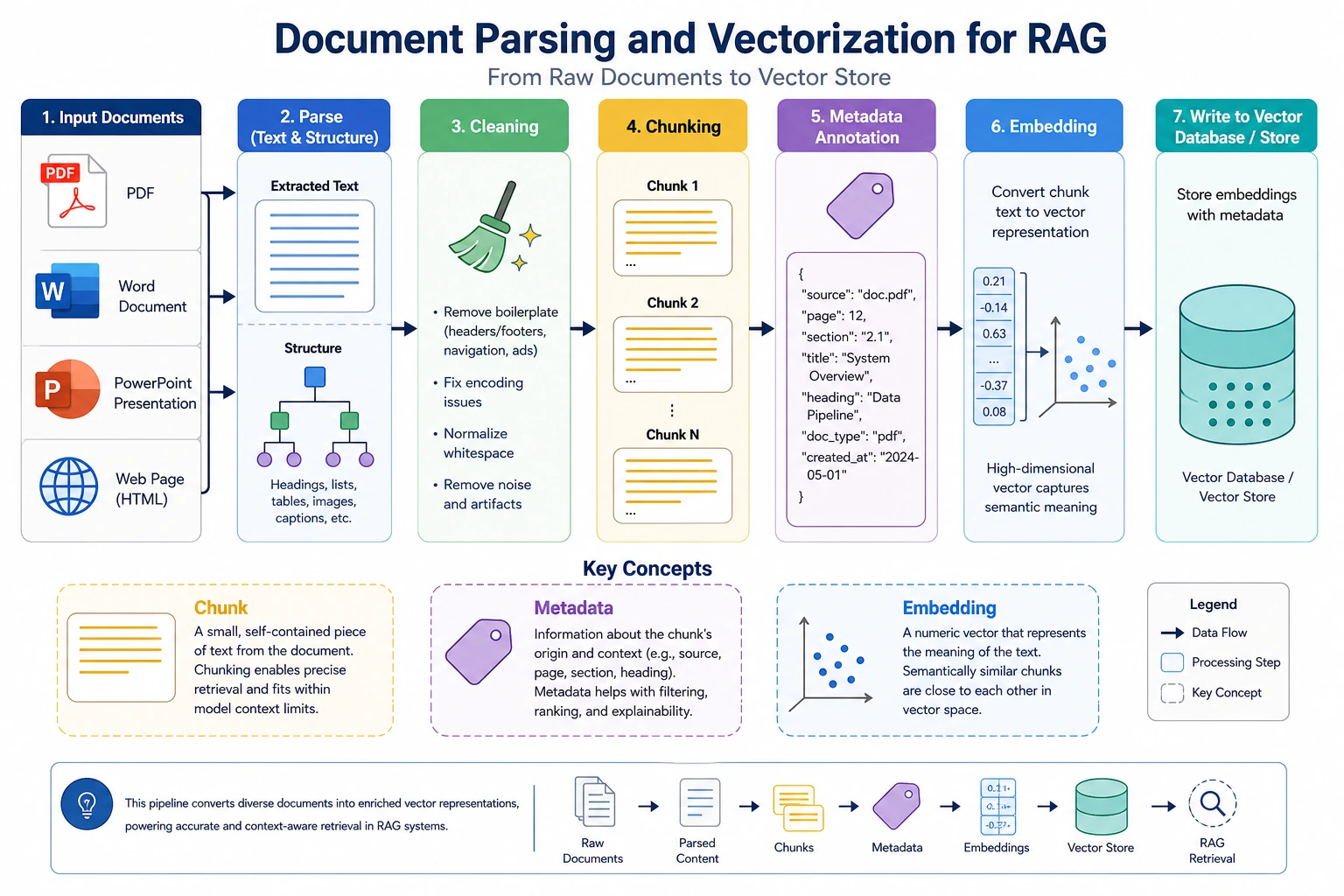

What is vectorization actually doing?

The core idea of vectorization is to map text chunks into a “semantic space.”

That way, both queries and document chunks can become vectors, and then we can compare similarity.

To keep the code runnable, let’s first use a very simple bag-of-words vector to simulate the process.

import math
import re
from collections import Counter

chunks = [
    "If your learning progress is below 20% within 7 days after purchase, you can apply for a refund",
    "After completing all required items and passing the final test, you can receive a completion certificate",
    "It is recommended to study Python, data analysis, and machine learning first, and then move on to deep learning and large models"
]

def tokenize(text):
    words = re.findall(r"[a-zA-Z0-9_]+", text.lower())
    cjk_chars = re.findall(r"[\u4e00-\u9fff\u3040-\u30ff]", text)
    cjk_bigrams = ["".join(cjk_chars[i:i + 2]) for i in range(len(cjk_chars) - 1)]
    return words + cjk_bigrams

vocab = sorted(set(token for chunk in chunks for token in tokenize(chunk)))
vocab_index = {word: idx for idx, word in enumerate(vocab)}

def vectorize(text):
    vec = [0] * len(vocab)
    counts = Counter(tokenize(text))
    for word, count in counts.items():
        if word in vocab_index:
            vec[vocab_index[word]] = count
    return vec

def cosine_similarity(a, b):
    dot = sum(x * y for x, y in zip(a, b))
    norm_a = math.sqrt(sum(x * x for x in a))
    norm_b = math.sqrt(sum(y * y for y in b))
    if norm_a == 0 or norm_b == 0:
        return 0.0
    return dot / (norm_a * norm_b)

query = "How do I apply for a refund?"
query_vec = vectorize(query)

scores = []
for chunk in chunks:
    score = cosine_similarity(query_vec, vectorize(chunk))
    scores.append((score, chunk))

scores.sort(reverse=True)
for score, chunk in scores:
    print(round(score, 4), "->", chunk)

Expected output:

0.4714 -> If your learning progress is below 20% within 7 days after purchase, you can apply for a refund
0.125 -> After completing all required items and passing the final test, you can receive a completion certificate
0.0 -> It is recommended to study Python, data analysis, and machine learning first, and then move on to deep learning and large models

This is the most basic version of retrieval.

---

Real projects are usually more complex

In real RAG systems, vectorization usually uses a dedicated embedding model instead of simple word frequencies.

But the idea is the same:

1. Convert the query into a vector
2. Convert document chunks into vectors
3. Find the most similar chunks in vector space

So do not be intimidated by the term “vector database.” At its core, it is still doing similarity retrieval, just at a larger scale and with higher efficiency.

---

The most common problem areas in document processing

Chunk too large

Retrieval becomes less precise and wastes context.

Chunk too small

The information is incomplete, and the model only sees fragmented pieces.

Over-cleaning

You also remove valuable information such as headings, hierarchy, and table structure.

No metadata

Later it becomes hard to explain “where the answer came from.”

Chunking only by length, not by task

For courseware generation projects, this can cause:

• Example problems and solution steps to be split apart
• Concepts and exercises to be mixed together
• Later assembly into a fixed document format to become unstable

---

Document processing checklist

After finishing document processing, do not just look at “how many chunks were generated.” Check whether these chunks can really support downstream Q&A.

Check item	What good looks like	Common problem
Text cleaning	Removes headers, footers, repeated whitespace, and meaningless noise	Over-cleaning removes headings and table structure
Chunk completeness	One chunk can express a complete fact or a complete step	Key conditions are split into neighboring chunks
Chunk granularity	Can be retrieved accurately without being too fragmented	Too large is imprecise, too small is incomplete
Metadata	Keeps source, section, page, topic, content_type	Answers cannot cite sources or filter by topic
Sample audit	Randomly inspect 10 chunks by hand	Only count quantity, not quality

The most practical approach is to first make a “chunk audit sheet.” Every time you adjust the chunking rules, randomly sample a few chunks and judge whether they are suitable for retrieval, citation, and display.

A chunk quality audit script

The script below does not depend on external libraries. It is only meant to help you build the habit of checking. In a real project, you can write the audit results to CSV or Markdown.

chunks_with_meta = [
    {
        "id": "policy_001_01",
        "text": "If your learning progress is below 20% within 7 days after purchase, you can apply for a refund",
        "source": "course_policy.pdf",
        "section": "Refund Policy",
        "page": 3,
        "content_type": "policy",
    },
    {
        "id": "policy_001_02",
        "text": "After completing all required items and passing the final test, you can receive a completion certificate",
        "source": "course_policy.pdf",
        "section": "Certificate Description",
        "page": 5,
        "content_type": "rule",
    },
]

required_fields = {"id", "text", "source", "section", "page", "content_type"}

for chunk in chunks_with_meta:
    missing = required_fields - set(chunk)
    too_short = len(chunk["text"]) < 10
    too_long = len(chunk["text"]) > 300
    print({
        "id": chunk.get("id"),
        "missing_fields": sorted(missing),
        "too_short": too_short,
        "too_long": too_long,
        "preview": chunk["text"][:40],
    })

Expected output:

{'id': 'policy_001_01', 'missing_fields': [], 'too_short': False, 'too_long': False, 'preview': 'If your learning progress is below 20% w'}
{'id': 'policy_001_02', 'missing_fields': [], 'too_short': False, 'too_long': False, 'preview': 'After completing all required items and '}

This script will not judge semantic quality for you, but it can quickly reveal basic issues: missing fields, chunks that are too short, chunks that are too long, and untraceable sources.

Chunking strategy comparison log

It is a good idea to record the results in a fixed format every time you try a chunking strategy.

Strategy	Parameters	Advantages	Problems revealed	Keep or not
Sentence-based chunking	1 sentence per chunk	Simple, precise retrieval	Many pieces of evidence are incomplete	Only suitable for short FAQ
Sliding window	2–4 sentences, overlap 1	Less likely to cut context apart	More chunks overall	Good as a baseline
Heading-based chunking	Group content under H2/H3 headings	Preserves structure	Long sections may become too large	Suitable for tutorials and documents
Content-type-based chunking	Separate concepts / examples / exercises	Good for courseware generation	Requires parsing or labeling	Suitable for structured projects

If you do not know where to start, it is recommended to use “heading hierarchy + sliding window” as your baseline, and then adjust based on an evaluation set.

Summary

The most important takeaway from this lesson is:

RAG preprocessing is not a supporting role; it is a major source of the performance ceiling.

If retrieval is not done well, generation will almost never be stable either. So document cleaning, chunking, metadata, and vectorization are all steps that must be designed carefully.

---

Exercises

1. Adjust chunk_size and overlap, and observe how the chunking results change.
2. Add a text item completely unrelated to refunds into chunks, then look at the retrieval score ranking again.
3. Think about this: if a policy clause spans two paragraphs, how should you design the chunks so that important information is not cut apart?
4. If your goal is courseware generation, think about why concepts, examples, and exercises should not all use exactly the same chunking strategy.
