8.1.6 RAG Optimization

Learning Objectives

By the end of this section, you will be able to:

• Identify the most common optimization points in a RAG system
• Understand how chunk, top-k, rerank, and prompt affect results
• Learn how to build a simple context packing strategy
• Develop an optimization mindset of “find the bottleneck first, then tune the parameters”

---

First locate which stage has the problem before optimizing

A RAG system usually has four stages

It can be roughly broken down into:

1. Document processing
2. Retrieval
3. Context packing
4. Answer generation

If the answer quality is poor, you should first ask:

• Did it fail to find the right information?
• Or did it find it but not include it?
• Or did it include it, but the model did not use it well?

Different problems call for different optimization directions

Symptom	Common problem area
There is clearly an answer, but it was not retrieved	Chunking / embedding / retrieval strategy
The right content was retrieved, but the answer is still off	Prompt / context packing / model summarization
The answer is slow and expensive	top_k too large / context too long / too much reranking

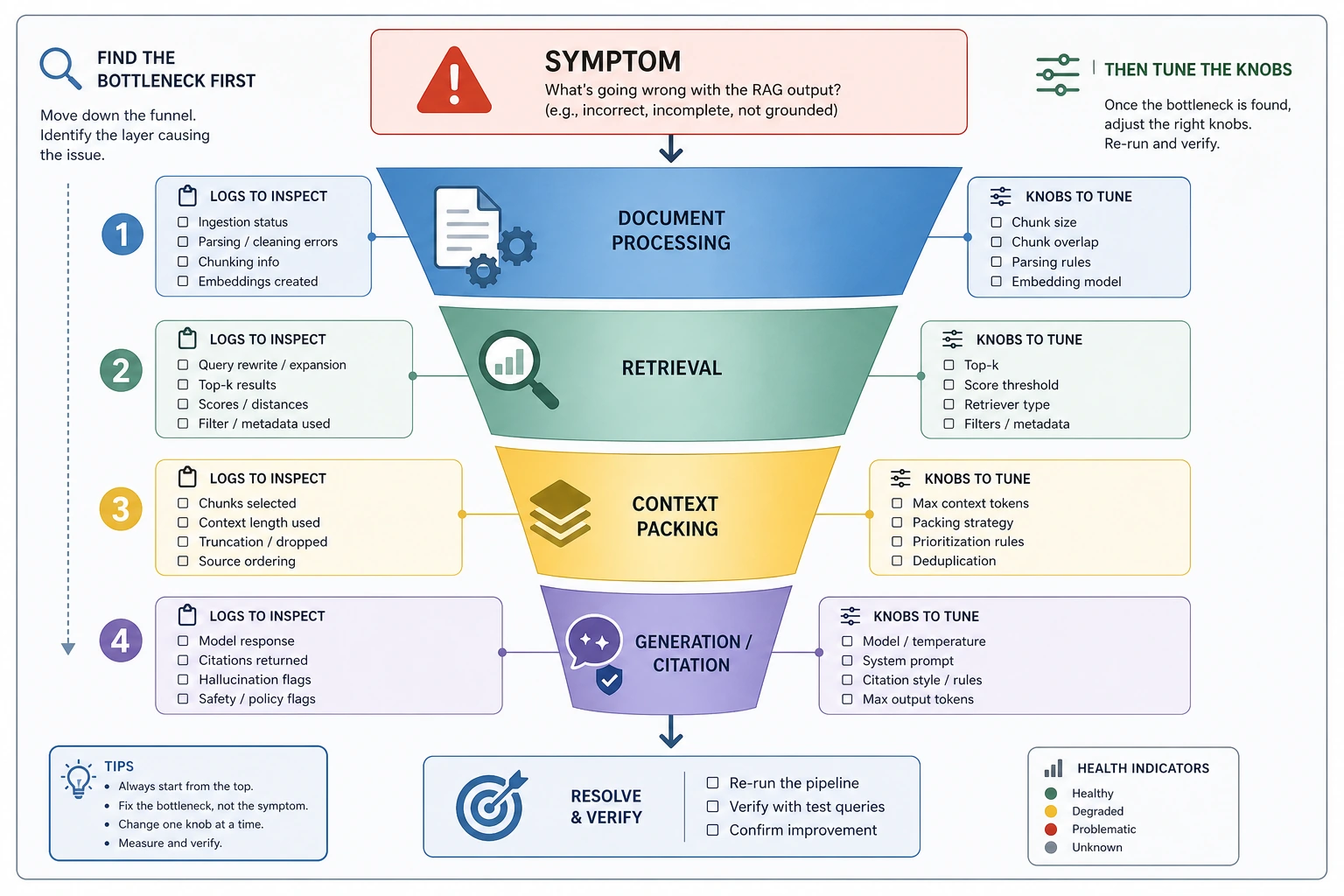

Reading note

Before optimizing, locate the issue along the funnel: document processing, retrieval, context packing, or generation constraints. If you cannot tell which layer is at fault, and you change chunk, top-k, rerank, and prompt all at once, you usually just make the problem harder to reproduce.

---

Start optimizing from document processing

Chunk size is not better just because it is larger

If chunks are too large:

• Retrieval becomes less precise
• Context usage grows too much

If chunks are too small:

• Information gets split apart too easily
• Evidence becomes incomplete

So the usual goal is not “the bigger the safer,” but finding a balance.

Preserving structural information is often important

The value of many documents is not only in the sentences themselves, but also in:

• Headings
• Paragraph hierarchy
• Table association
• Page location

If you remove all of this structure during cleaning, retrieval quality often gets worse later.

---

A few of the most commonly tuned levers in retrieval

top_k: bigger is not always better

Many people initially think:

If we retrieve more materials, it should be safer, right?

Not necessarily. When top_k is too large, irrelevant content may be brought in as well, which can actually distract the model.

Rerank: cast a wide net first, then filter more carefully

When coarse retrieval brings in a lot of borderline content, rerank is very helpful. It is not just “doing one more step”; it increases the density of useful context.

---

Context packing matters more than many people think

The model does not automatically “use” information just because it sees it

Even if the correct content is retrieved, you may still see:

• Key evidence buried in the middle
• Multiple chunks in a messy order
• Too much repeated information

So “which chunks to include, and in what order” is itself an optimization point.

A runnable example of context packing

chunks = [
    {"score": 0.95, "text": "Refund policy: Within 7 days of purchase and if learning progress is below 20%, you can get a refund."},
    {"score": 0.80, "text": "Certificate description: A certificate is awarded after completing all projects and passing the tests."},
    {"score": 0.76, "text": "Learning order: It is recommended to learn Python first, then machine learning."},
    {"score": 0.72, "text": "Additional terms: A refund request must include order information."}
]

def pack_context(chunks, max_chars=60):
    packed = []
    total = 0
    for item in sorted(chunks, key=lambda x: x["score"], reverse=True):
        text = item["text"]
        if total + len(text) > max_chars:
            continue
        packed.append(text)
        total += len(text)
    return packed

selected = pack_context(chunks, max_chars=60)
print("Chunks finally packed into the context:")
for c in selected:
    print("-", c)

This is the simplest form of “context budget management.”

---

How do we optimize the generation stage?

The prompt should clearly tell the model how to use the materials

Many times the problem is not that the materials were not found, but that the model was not clearly instructed to:

• Answer only based on the provided materials
• Admit when the evidence is insufficient
• Cite the source

A common prompt idea is:

“Please answer only according to the following materials; if the materials are insufficient, clearly say so.”

Citing sources can significantly improve controllability

Having the answer include sources usually has several benefits:

• Users trust it more
• It is easier for humans to verify
• It becomes easier to debug which document actually took effect

---

A simple way to think about optimization experiments

Do not change five parameters at once

It is better to follow this order:

1. Fix the evaluation set
2. Set a baseline
3. Change only one variable at a time

For example:

• First change only chunk size
• Then change only top-k
• Then add rerank

A small configuration comparison script

configs = [
    {"chunk_size": 200, "top_k": 3},
    {"chunk_size": 400, "top_k": 3},
    {"chunk_size": 200, "top_k": 5}
]

fake_scores = {
    (200, 3): 0.78,
    (400, 3): 0.71,
    (200, 5): 0.74
}

for cfg in configs:
    key = (cfg["chunk_size"], cfg["top_k"])
    print(cfg, "-> evaluation score", fake_scores[key])

Although this is toy data, it expresses an important engineering habit: Optimization should rely on comparison experiments, not intuition.

Reading note

The key idea in this diagram is “change only one variable at a time.” In each round, fix the evaluation set, record the baseline, observe both fixed failures and new failures, and then decide whether to keep the change.

---

Common trade-offs in RAG optimization

Quality vs cost

• Larger top_k: may be more complete, but more expensive
• Stronger reranker: may be more accurate, but slower

Recall vs precision

• Too little retrieval: may miss the answer
• Too much retrieval: may introduce noise

Real-time performance vs stability

• Retrieving fresh information in real time is more flexible
• More thorough preprocessing is usually more stable

There is no universal best solution, only the best solution for a given scenario.

---

If your goal is a “courseware generation assistant driven by a knowledge base,” what optimization order is best?

A very common mistake in this kind of project is:

• Switching to a larger model right away
• Or increasing top_k too much right away

But a more stable default order is usually:

1. First check whether document parsing is correct
2. Then check whether knowledge chunks are properly separated into concepts / examples / exercises
3. Then check whether retrieval actually brings back the right content
4. Then check whether structured output and templates place the content in the right positions
5. Only at the end, tune the model and prompt

You can compress this into one sentence:

For this kind of project, prioritize optimizing “finding the right content” and “placing it correctly,” and only then optimize “writing it more beautifully.”

A minimal optimization checklist more like a courseware generation project

Symptom	What should you check first
The topic is right, but there are no examples	Document parsing / content type labeling
The example was found, but it was placed in the knowledge-point section	Schema / template mapping
There is a lot of material, but the output is still empty	Retrieval filtering / top-k / context packing
The internal docs clearly have the standard answer, but external content misleads the model	Source priority strategy

This table is especially useful for beginners because it pushes “optimization” back down into several layers that can actually be inspected.

---

Common beginner mistakes

Switching to a larger model right away

Many RAG problems are not because the model is too weak, but because the retrieval pipeline is not tuned well.

Only looking at a single demo, without stable evaluation

Getting one answer right does not mean the system is stable.

Increasing top_k over and over

More context is not always better, especially when the context contains too many irrelevant chunks.

---

RAG Optimization Troubleshooting Matrix

When doing optimization for real, the most useful skill is not memorizing many tricks, but being able to map the symptom to a specific pipeline stage.

Symptom	What to look at first in the logs	First thing to try	What not to do at the beginning
The correct material does not appear at all	Query, raw top-k hits, chunk text	Adjust chunking, keyword search, query rewrite	Directly switch to a larger generation model
The correct material appears, but is ranked too low	Each chunk’s score and ranking	Add rerank, tune hybrid retrieval weights	Blindly increase top-k a lot
The correct material is in the context, but the answer misses conditions	Final context, prompt, answer citations	Adjust context packing, require line-by-line citation	Only change the embedding model
The answer cites the wrong source	Answer, source_refs, evidence snippets	Do citation checks, restrict citation format	Only check whether the final answer is fluent
Latency and cost suddenly increase	top_k, rerank count, context length	Limit candidate count, caching, hierarchical retrieval	Increase top-k and model size at the same time

How to use this table: pick one symptom at a time, find the matching logs, and then decide which lever to adjust. Do not change chunk, embedding, top-k, rerank, and prompt all at once when you do not yet know which layer the problem is in.

A fixed optimization experiment workflow

RAG optimization should feel like experimentation, not like tuning mysterious parameters. A beginner-friendly workflow is: first fix 20 to 50 evaluation questions, then run a baseline, record retrieval hits, answer correctness, and whether citations support the conclusion, and then change only one variable at a time.

Step	Deliverable	Success criterion
Build a baseline	Current config, evaluation set, failure samples	Can reproduce the same batch of results
Change one variable	For example, change only chunk size or add rerank	All other settings stay the same
Compare metrics	Hit@k, answer accuracy, citation faithfulness, average latency	At least one key metric improves, and side effects are acceptable
Review failure cases	List both new failures and fixed failures	Understand why it got better or worse
Decide whether to keep it	Write one conclusion sentence	Not “it feels better,” but “it works better for which type of problem”

An optimization record can look like this:

Experiment	Change	Improvement	Cost	Conclusion
baseline	Keyword search, top-k=3	Stable on exact terminology	Weak on paraphrased questions	Keep as the control group
exp-1	Add query rewrite	Better hit rate on paraphrased questions	A few incorrect rewrites	Keep it, but log the rewrites
exp-2	Add rerank	Correct materials are ranked higher	Increased latency	If latency is acceptable, make it the standard version

Checking the trade-off between cost, latency, and quality

A RAG system is not only about getting the highest score. In real projects, you also need to consider whether users can afford to wait, whether the cost is manageable, and whether the results are stable.

Optimization action	Possible benefit	Possible cost	When it is suitable
Increase top_k	Reduce missed retrievals	Longer context, more noise, higher cost	When the correct material often does not enter the candidate set
Add rerank	Better ranking accuracy	More latency, higher implementation complexity	When the answer is in the candidate set but ranked too low
Query rewrite	Better matches for conversational questions	May distort the question	When user wording differs greatly from document wording
Stronger embedding	Better semantic retrieval	Rebuild index, increased cost	When the baseline proves semantic retrieval is the bottleneck
Stricter prompt	Fewer hallucinations	May make answers more conservative	When the model tends to make things up even when materials are insufficient

When optimizing, remember one principle: if the system does not yet have retrieval logs and an evaluation set, do not rush to add complex components. Without observation, it is hard to tell whether a complex component is solving the problem or creating new uncertainty.

---

Summary

The most important takeaway in this section is:

RAG optimization is not just changing one parameter; it is about finding balance among retrieval quality, context quality, generation constraints, cost, and speed.

Truly effective optimization usually starts by locating the bottleneck, not by blindly stacking more components.

---

Exercises

1. Change max_chars in pack_context() and observe how the selected chunks change.
2. Create your own set of different chunk_size / top_k configurations and practice running small comparison experiments.
3. Think about this: if the system always “retrieves the right material, but the answer is still off,” what should you optimize next?
