8.1.4 Vector Databases

Learning Objectives

By the end of this section, you will be able to:

• Understand why RAG often needs a vector database
• Distinguish the relationship between “vectors”, “metadata”, and “similarity search”
• Run a minimal working vector retrieval example
• Know which dimensions to pay attention to when choosing a vector database

---

Why Aren’t Ordinary Databases Enough?

In RAG, what we need is not “exactly the same”, but “semantically similar”

Traditional databases are good at:

• Exact matching
• Conditional filtering
• Relational queries

But the more common problem in RAG is:

The user asks a question, and the system needs to find the text chunk with the “closest meaning”.

For example, the user asks:

“How do I drop a course?”

The knowledge base may say:

“A refund can be requested within 7 days after purchasing the course”

These two sentences are not exactly the same on the surface, but they are semantically related. This is the kind of scenario vector retrieval is good at handling.

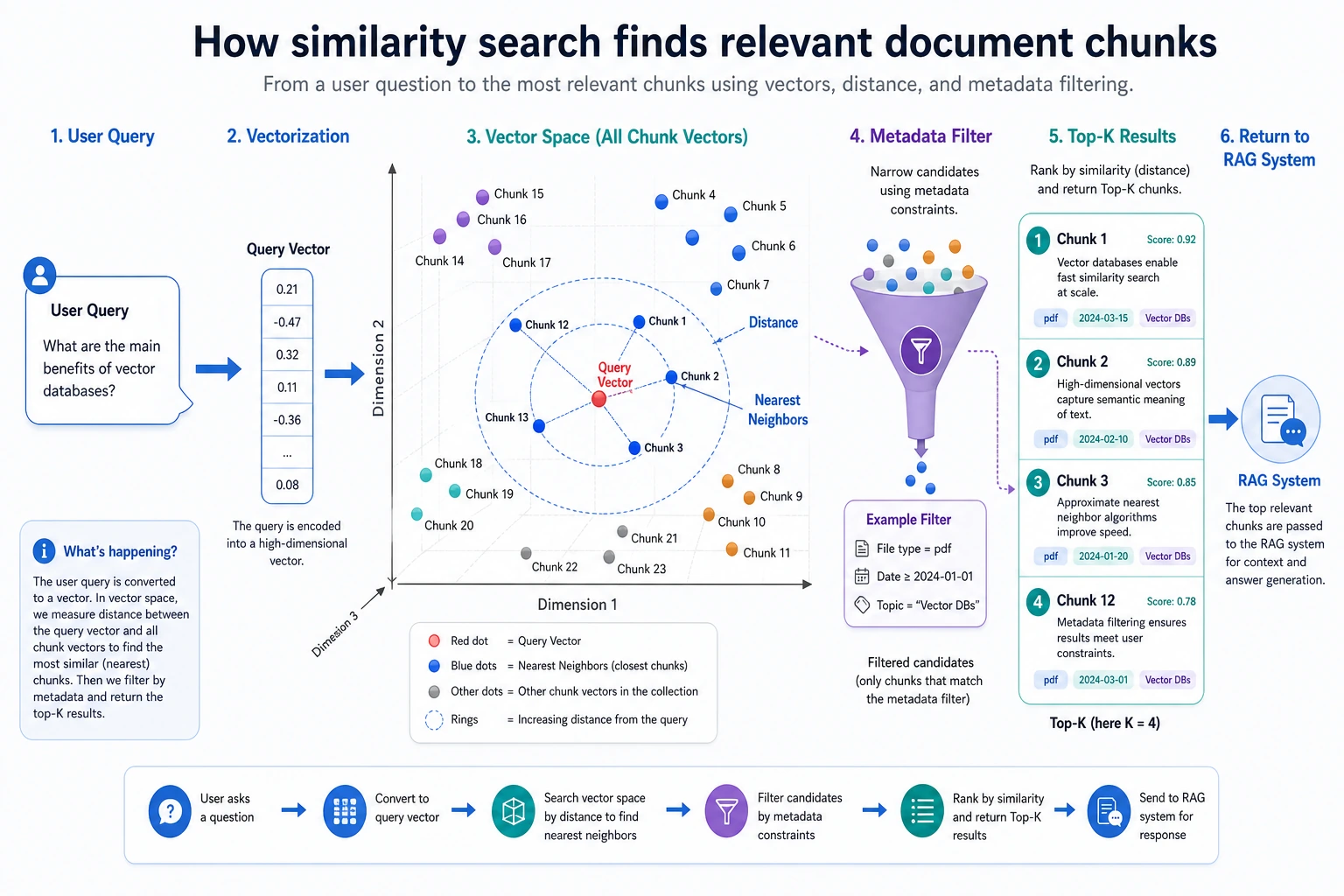

A vector database is essentially managing “semantic coordinates”

You can think of the embedding for each text chunk as a set of coordinates. What a vector database does is:

1. Store these coordinates
2. When a user submits a query, convert the question into coordinates too
3. Find the nearest points

---

What Does a Vector Database Usually Store?

It stores not only vectors, but also text and metadata

A record usually contains at least:

• id
• vector
• text
• metadata

For example:

record = {
    "id": "doc_001",
    "vector": [0.2, 0.8, 0.1],
    "text": "A refund can be requested within 7 days after purchasing the course",
    "metadata": {"section": "refund policy", "source": "policy.pdf"}
}

print(record)

Why is metadata important?

Because in many cases, you do not just want “semantically close”; you also want to “meet business filtering conditions”.

For example:

• Only search section=refund policy
• Only search a specific product version
• Only search documents from a specific department

So a vector database is not “vectors only”, but a combined management system for “vectors + text + metadata”.

Reading tip

Do not just look at the vector column. In real RAG systems, text gives the model evidence, and metadata supports filtering, permissions, citations, and evaluation. Missing any one of these makes the system much harder to debug.

---

A Minimal Working Vector Retriever

Below we will hand-write a tiny vector database with numpy so the principle is completely visible.

import numpy as np

records = [
    {
        "id": "r1",
        "vector": np.array([0.95, 0.05, 0.10]),
        "text": "A refund can be requested within 7 days after purchasing the course",
        "metadata": {"section": "refund policy"}
    },
    {
        "id": "r2",
        "vector": np.array([0.10, 0.95, 0.05]),
        "text": "You can receive a certificate after completing the course project",
        "metadata": {"section": "certificate info"}
    },
    {
        "id": "r3",
        "vector": np.array([0.20, 0.80, 0.15]),
        "text": "The system will issue a certificate after passing the final course test",
        "metadata": {"section": "certificate info"}
    }
]

query_vector = np.array([0.90, 0.10, 0.10])

def cosine_similarity(a, b):
    return float(np.dot(a, b) / (np.linalg.norm(a) * np.linalg.norm(b)))

results = []
for item in records:
    score = cosine_similarity(query_vector, item["vector"])
    results.append((score, item["id"], item["text"]))

for score, rid, text in sorted(results, reverse=True):
    print(rid, round(score, 4), text)

Expected output:

r1 0.9983 A refund can be requested within 7 days after purchasing the course
r3 0.3601 The system will issue a certificate after passing the final course test
r2 0.218 You can receive a certificate after completing the course project

Here, query_vector can be understood as the embedding of the user’s question.

---

Adding Metadata Filtering

Why is filtering so common?

Because many enterprise knowledge bases are not a pool of random search results, but have boundaries.

For example:

• Only search HR policies
• Only search a specific product document
• Only search versions after 2025

Runnable example

import numpy as np

records = [
    {
        "id": "r1",
        "vector": np.array([0.95, 0.05, 0.10]),
        "text": "A refund can be requested within 7 days after purchasing the course",
        "metadata": {"section": "refund policy"}
    },
    {
        "id": "r2",
        "vector": np.array([0.10, 0.95, 0.05]),
        "text": "You can receive a certificate after completing the course project",
        "metadata": {"section": "certificate info"}
    },
    {
        "id": "r3",
        "vector": np.array([0.20, 0.80, 0.15]),
        "text": "The system will issue a certificate after passing the final course test",
        "metadata": {"section": "certificate info"}
    }
]

query_vector = np.array([0.15, 0.90, 0.10])

def cosine_similarity(a, b):
    return float(np.dot(a, b) / (np.linalg.norm(a) * np.linalg.norm(b)))

target_section = "certificate info"

filtered_results = []
for item in records:
    if item["metadata"]["section"] != target_section:
        continue
    score = cosine_similarity(query_vector, item["vector"])
    filtered_results.append((score, item["text"]))

for score, text in sorted(filtered_results, reverse=True):
    print(round(score, 4), "->", text)

Expected output:

0.9966 -> You can receive a certificate after completing the course project
0.9944 -> The system will issue a certificate after passing the final course test

This is the minimal form of “similarity search + business filtering”.

---

If Your Goal Is a “Knowledge-Base-Driven Courseware Generation Assistant”, What Metadata Should You Include at Minimum?

In this kind of project, the vector database is not only used for “finding semantically similar content”; it also has to support:

• Filtering by topic
• Filtering by concept / example / practice
• Filtering by internal / external sources
• Source traceability later on

So for beginners, a minimal metadata set often looks like this:

Field	What it helps you do
topic	Route by current topic
content_type	Distinguish concepts / examples / exercises
source_origin	Distinguish internal / external materials
page_or_slide	Cite the source during generation
grade	Filter by suitable grade level or audience

A very small record object can be written like this first:

record = {
    "id": "doc_001_chunk_03",
    "text": "If a product originally costs 100 yuan and is discounted by 20%, what is the price?",
    "metadata": {
        "topic": "discount word problems",
        "content_type": "example",
        "source_origin": "internal",
        "page_or_slide": 3,
        "grade": "upper primary",
    },
}

print(record)

The most important thing for beginners to notice here is:

• The vector database layer is already quietly deciding whether the later courseware can be assembled reliably

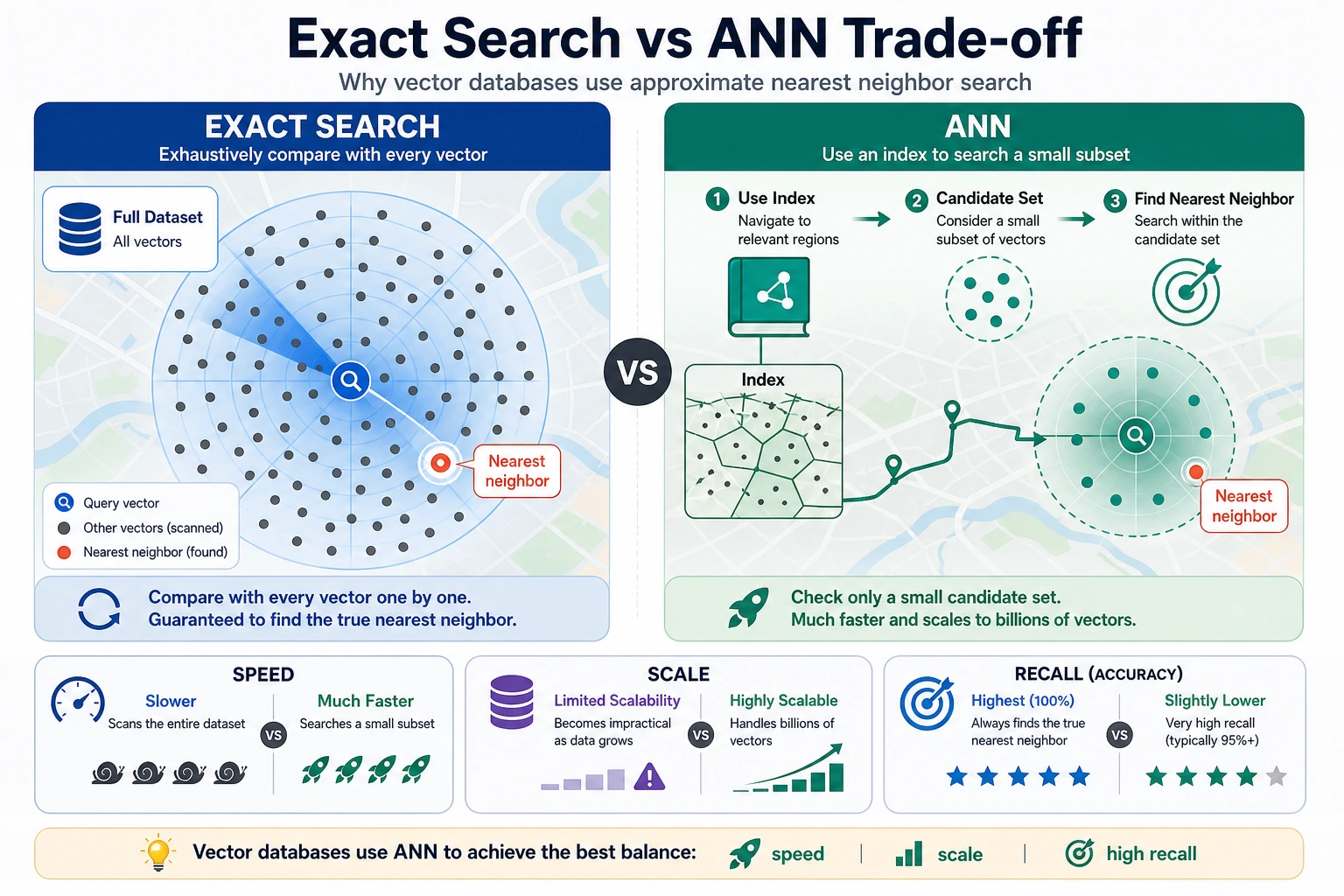

What Is the Difference Between Exact Search and Approximate Search?

Exact search

This means comparing the query vector with every vector.

Pros:

• Accurate results

Cons:

• Slow when the data volume is large

Approximate Nearest Neighbor (ANN)

Real vector databases often use approximate methods to speed up search.

You can understand it like this:

Instead of comparing one by one in a brute-force way, first quickly narrow down the candidate set, then find the nearest neighbors.

Pros:

• Fast

Trade-off:

• It may not be the absolute best result, but it is usually good enough

Reading tip

Exact search is like comparing everyone in a class one by one, while ANN is like narrowing the candidate set by area first and then finding the neighbors. Beginners can remember this one sentence: ANN sacrifices a little “absolute optimality guarantee” in exchange for faster large-scale retrieval.

---

The Roles of Common Vector Databases / Tools

Lightweight local solutions

Suitable for:

• Learning
• Prototype validation
• Small-scale projects

Common options include:

• FAISS
• Chroma
• SQLite + vector extensions

More complete service-based solutions

Suitable for:

• Multi-user systems
• Large-scale data
• Online services

More focus is placed on:

• Persistence
• Concurrency
• Index management
• Access control
• Operations and maintenance capability

---

What Should You Look At When Choosing?

First, look at business scale

Key questions include:

• How much data is there?
• How frequent are updates?
• Is online incremental writing required?
• Do you need strong metadata filtering?

Then look at engineering constraints

For example:

• Can it be self-hosted?
• Does it support cloud hosting?
• How well does it integrate with existing systems?
• Is the maintenance cost high?

Often, the best choice is not “the most powerful one”, but “the one that causes the least trouble”.

---

Common Beginner Mistakes

Thinking the vector database itself understands semantics

It does not. What actually determines semantic quality first is the embedding model.

Thinking that once vectors are stored, RAG will definitely work well

Not enough. You also need document cleaning and chunking in the front, and prompt and answer constraints in the back.

Only looking at retrieval, and ignoring filtering and citations

In many real projects, metadata filtering and source traceability are equally important.

---

Vector Database Debugging Checklist

After a vector database is integrated, the first thing is not to connect the LLM right away, but to confirm that four things are reliable: “writing, filtering, retrieval, and citation”.

Check item	What you should be able to see	Common risk
Write count	The raw chunk count matches the number of stored records, or there is a clear filtering reason	Document parsing failure, duplicate writes
Vector dimension	Records in the same batch have consistent dimensions	Inconsistent dimensions after switching embedding models
Metadata	Fields such as source, section, page, and topic are complete	Cannot cite or filter later
Similarity results	top-k results can print id, score, text, metadata	Looking only at the answer, not the matched content
Filtering conditions	The metadata filter can narrow the search range	Inconsistent filter field types, causing no results

If you do not pass this table, do not rush to optimize the prompt. Many RAG issues are already planted at the vector database layer.

A Minimal Example for Verifying Ingestion Records

records = [
    {
        "id": "doc_001_chunk_01",
        "vector": [0.95, 0.05, 0.10],
        "text": "A refund can be requested within 7 days after purchasing the course",
        "metadata": {"source": "policy.md", "section": "refund policy", "page": 1},
    },
    {
        "id": "doc_001_chunk_02",
        "vector": [0.10, 0.90, 0.05],
        "text": "You can receive a certificate after completing the course project",
        "metadata": {"source": "policy.md", "section": "certificate info", "page": 2},
    },
]

required_meta = {"source", "section", "page"}
vector_dim = len(records[0]["vector"])

for record in records:
    problems = []
    if len(record["vector"]) != vector_dim:
        problems.append("vector_dim_mismatch")
    missing = required_meta - set(record["metadata"])
    if missing:
        problems.append(f"missing_metadata={sorted(missing)}")
    if not record["text"].strip():
        problems.append("empty_text")
    print(record["id"], problems or "ok")

Expected output:

doc_001_chunk_01 ok
doc_001_chunk_02 ok

You can put this check before ingestion. In real projects, once metadata is missing, it becomes very hard to do citations, filtering, permissions, and evaluation later.

Vector Database Selection Decision Table

Scenario	Recommended starting point	Reason
Course learning, small demo	In-memory list, FAISS, Chroma	Simple, visible, easy to debug
Local prototype, needs persistence	Chroma, SQLite vector extension	Easy to save and rerun
Enterprise knowledge base	Service-based vector database with metadata filtering and permissions	Needs concurrency, access control, monitoring, and operations
Multi-tenant SaaS	Managed vector database or mature search service	Focus on isolation, scaling, backups, and cost

Do not start from “which one is the most popular”; start from data volume, update frequency, filtering needs, deployment method, and maintenance cost.

Summary

The most important insight in this section is:

A vector database is not a “magic black box”; it is essentially an efficient manager of semantic vectors and their attached information.

What you really need to care about is:

• Whether vector quality is good enough
• Whether retrieval is fast enough
• Whether metadata can support business needs

---

Exercises

1. Add two more records to the mini vector database, then manually create a new query_vector to test the ranking.
2. Add a source metadata field and try double-condition filtering.
3. Think about this: if the embedding model is poor, can a powerful vector database still save the result?
