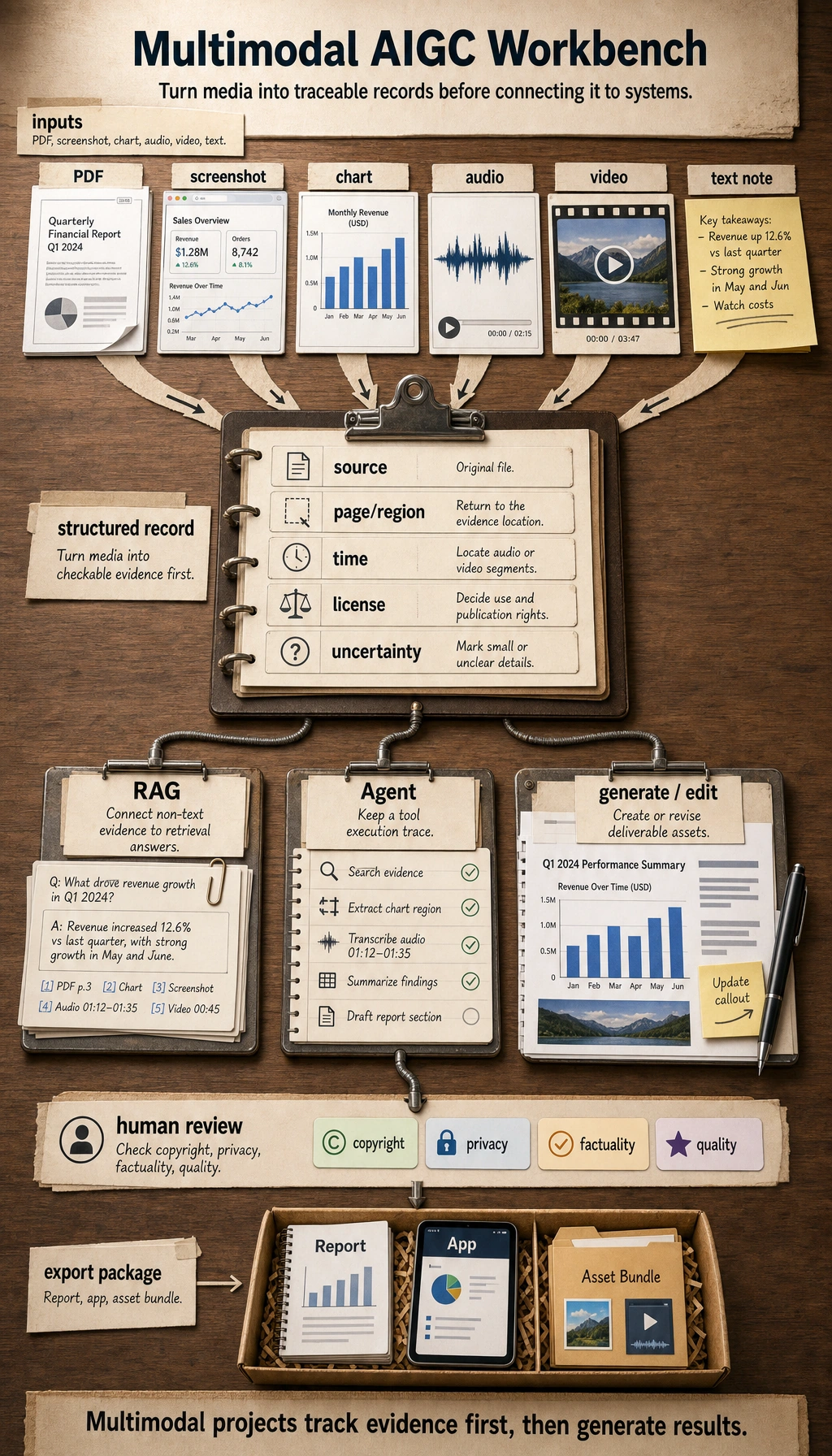

12 AIGC and Multimodal

Chapter 12 is the multimodal expansion: AI is no longer only text. Images, PDFs, audio, video, screenshots, charts, and generated assets can all enter the same product workflow.

Do not chase every new demo. First learn how to turn non-text inputs into structured records, connect them to RAG or Agents, generate or edit assets, review risks, and export something usable.

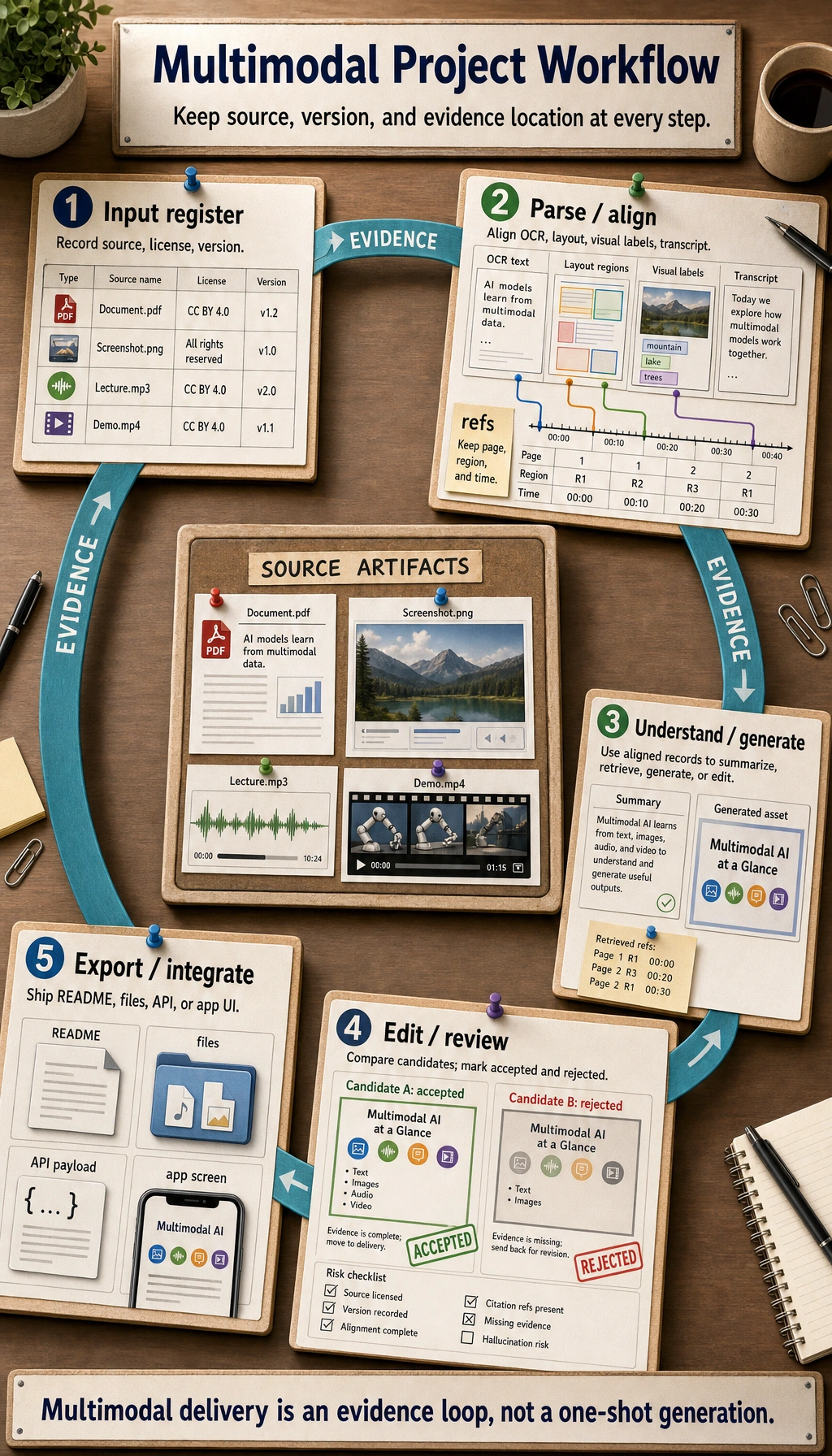

See the Multimodal Workflow

Use this workflow as the chapter map.

Layer	What happens	Evidence to keep
Input	text, screenshot, image, PDF, audio, video	source file, owner, license, version
Parse / align	OCR, layout parsing, visual understanding, transcript	structured record, page/region/time reference
Understand / generate	answer, caption, image, voice, storyboard, video plan	prompt, model, output, candidate versions
Edit / review	human selection, factual check, copyright and portrait checks	review checklist, rejected versions, reason
Export / integrate	RAG index, Agent trace, creative package, demo	README, export file, limitations, next step

Learning Order And Task List

Make one small workflow traceable before trying video or full creative platforms.

1. 12.1 Multimodal basics Turn one screenshot or image into a structured record. Keep the source, visible text, objects, and uncertainty notes.

2. 12.2 Image generation Record prompts, references, negative requirements, and selected output. Keep prompt versions and review notes.

3. 12.3 Video, speech, digital humans Understand storyboard, voice, shot, subtitle, and timing. Keep the storyboard and asset list.

4. 12.4 Ethics and compliance Check copyright, portrait rights, sensitive content, and factual risk. Keep the safety review checklist.

5. 12.5 Stage project Run 12.5.3 Hands-on: Build a Reproducible Multimodal Creative Package. Keep the brief, prompts, assets, storyboard, review, and export preview.

First Runnable Loop: Structure A Visual Input

This offline script simulates the first engineering step of a multimodal system: after a model or human reads an image, the result must become a structured, checkable record.

Create ch12_visual_record.py and run it with Python 3.10 or later.

visual_record = {
    "source": "course-slide-01.png",
    "content_type": "course screenshot",
    "visible_text": ["RAGOps", "evaluation set", "Trace", "cost monitoring"],
    "objects": ["flowchart", "table"],
    "uncertainty": ["small text in the lower-right corner is unclear"],
    "next_step": "write into the multimodal RAG index for the course Q&A assistant to cite",
}

required_fields = {"source", "content_type", "visible_text", "objects", "uncertainty", "next_step"}
missing = required_fields - visual_record.keys()
rag_ready = not missing and bool(visual_record["visible_text"])

print("source:", visual_record["source"])
print("visible_text_count:", len(visual_record["visible_text"]))
print("uncertainty_count:", len(visual_record["uncertainty"]))
print("rag_ready:", rag_ready)

Expected output:

source: course-slide-01.png
visible_text_count: 4
uncertainty_count: 1
rag_ready: True

Operation tip: add page, region, or timestamp fields. If the record can be cited later, it can enter multimodal RAG. If it cannot be checked or cited, it should stay in review.

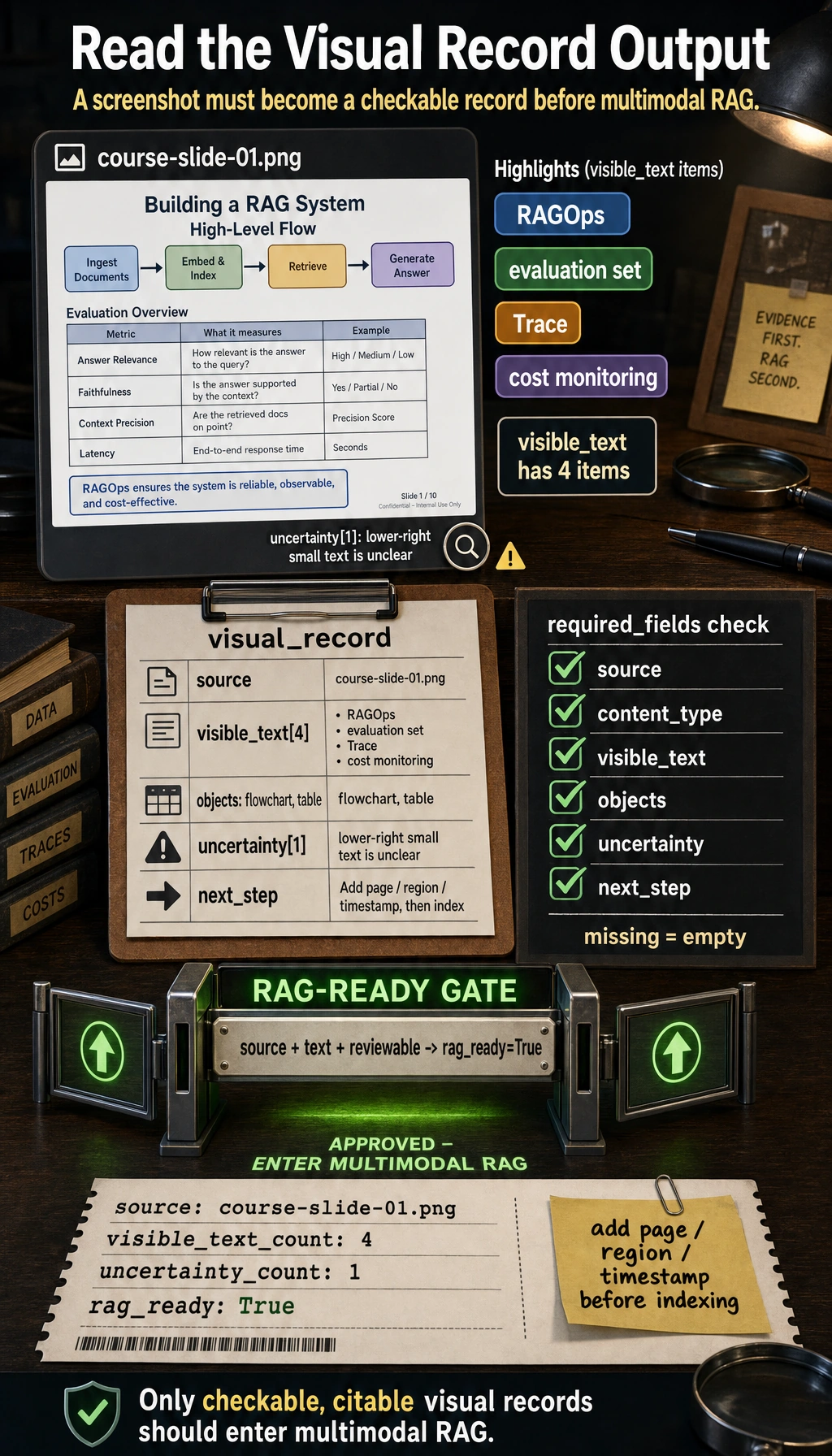

How to read this output

• source proves where the visual record came from.
• visible_text_count shows how much text was extracted or observed.
• uncertainty_count is not a weakness; it is the part that should stay reviewable.
• rag_ready=True means the record has enough structure to be cited later, not that the visual understanding is automatically correct.

Depth Ladder

Level	What you can prove
Minimum pass	You can turn one screenshot, image, PDF, audio, or video note into a structured record with source and uncertainty.
Project-ready	You can preserve source references, prompt versions, candidate outputs, review decisions, and export files.
Deeper check	You can connect multimodal records to RAG or Agent while enforcing copyright, portrait, sensitive-content, factual, latency, and cost boundaries.

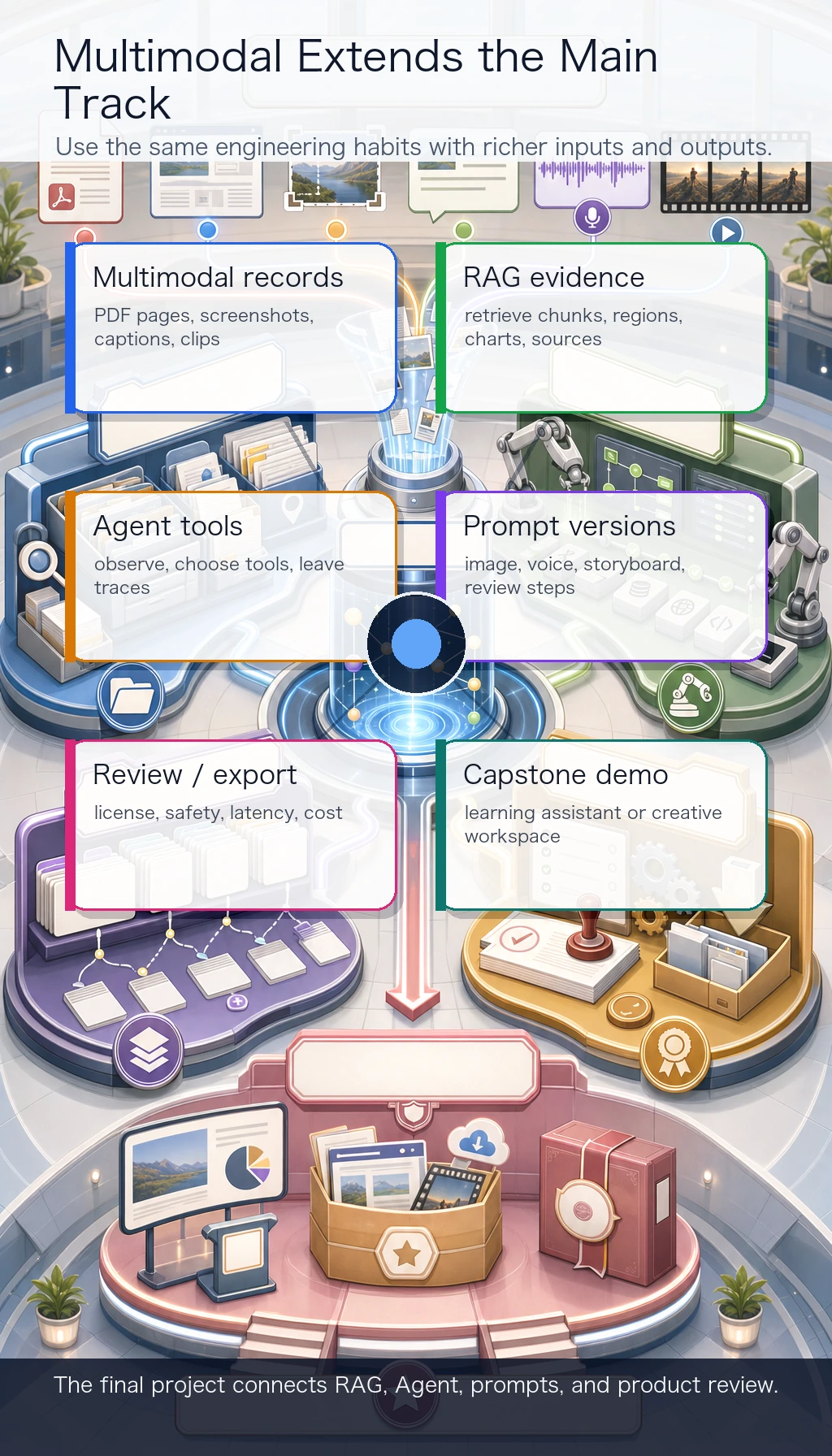

Connect Multimodal To RAG, Agent, And Creative Work

Multimodal is not separate from the main track.

Main-track skill	Multimodal extension
RAG	retrieve PDF pages, screenshots, charts, image captions, and text chunks with citations
Agent	observe screenshots or documents, choose tools, and leave traceable actions
Prompt	create image, voice, storyboard, and review prompts with version records
Engineering	track assets, licenses, reviews, export files, latency, and cost
Capstone	build a multimodal learning assistant or creative workspace

Evidence to Keep

Keep this page’s proof of learning as a small evidence card:

Brief

user goal, audience, assets, constraints, and export format

Artifacts

source files, prompts, generated candidates, selected output, and rejected versions

Review

factual check, copyright/portrait/sensitive-content check, and human decision

Integration

RAG record, Agent trace, creative package, storyboard, or export preview

Expected Output

reproducible asset package with README, review checklist, and failure notes

Common Failures

• Treating AIGC as “one pretty output” instead of a workflow.
• Losing source references after OCR, PDF parsing, or screenshot understanding.
• Comparing generated results without prompt and version records.
• Skipping human review for copyright, portrait rights, sensitive content, or factual risk.
• Starting with video generation before the storyboard, assets, and review rules are clear.

Pass Check

Before finishing the course, you should be able to:

• explain how text, images, PDFs, audio, and video enter one workflow;
• run the visual record script and add source references such as page, region, or timestamp;
• preserve prompts, assets, selected outputs, rejected outputs, and review reasons;
• connect a multimodal record to RAG, Agent, or a creative package;
• run the multimodal workshop and keep a README, review checklist, export preview, and failure cases.

For a printable checklist, use 12.0 Learning Checklist. For the guided final project, start with 12.5.3 Hands-on: Build a Reproducible Multimodal Creative Package.

Check reasoning and explanation

1. A passing answer names the modalities involved, the input-output contract, and how text, image, audio, or video evidence is aligned.
2. The evidence should include a real media artifact or trace, plus a note on quality, safety, and failure cases.
3. A good self-check explains whether the task needs generation, understanding, retrieval, tool orchestration, or human review rather than treating every multimodal problem as the same kind of demo.
