10.3.1 Object Detection Roadmap: Class plus Box

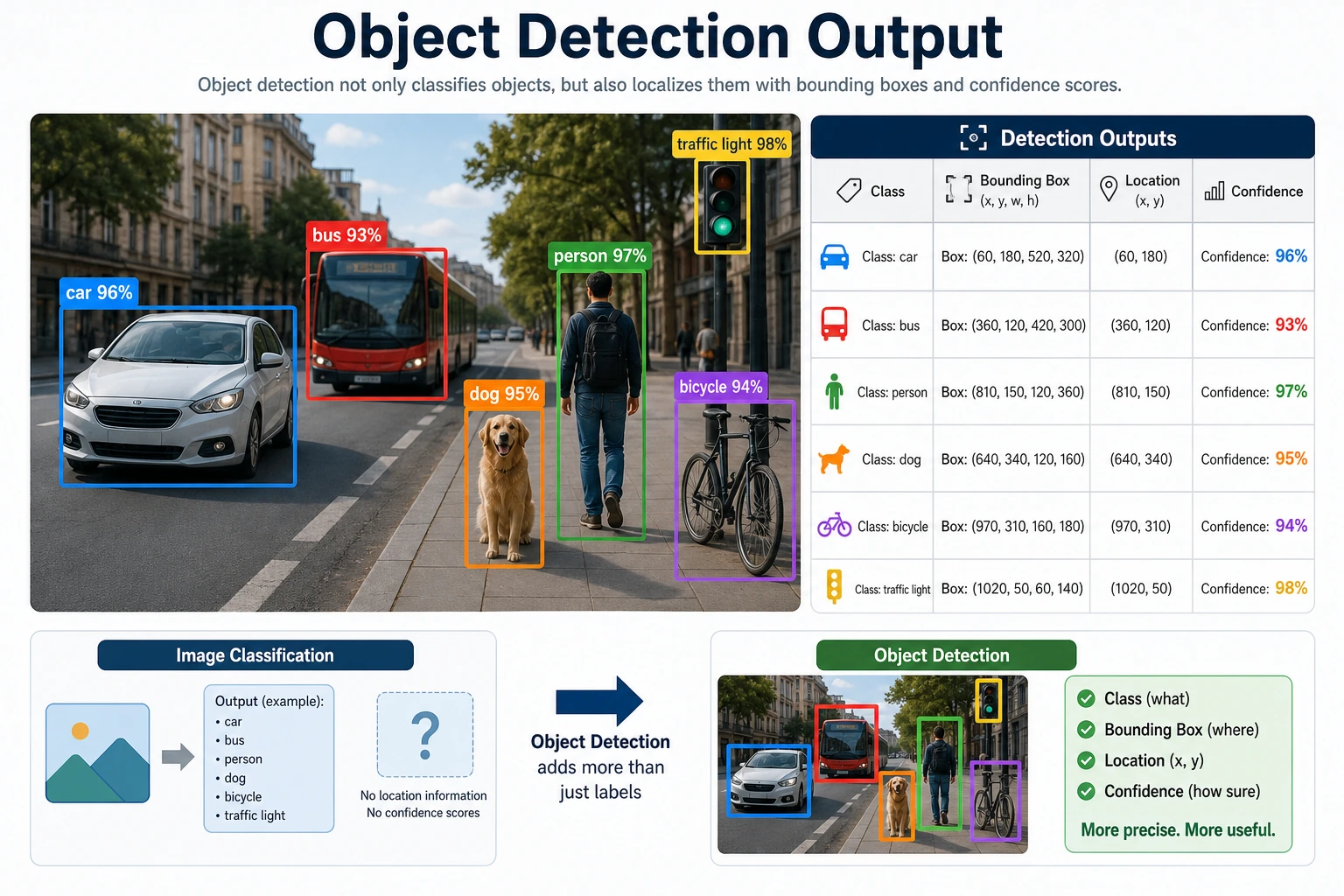

Object detection adds location to classification: what object is present, and where is it in the image?

See the Box Workflow First

The important concepts are bounding box, class, confidence, IoU, threshold, false positive, false negative, and mAP.

Run an IoU Check

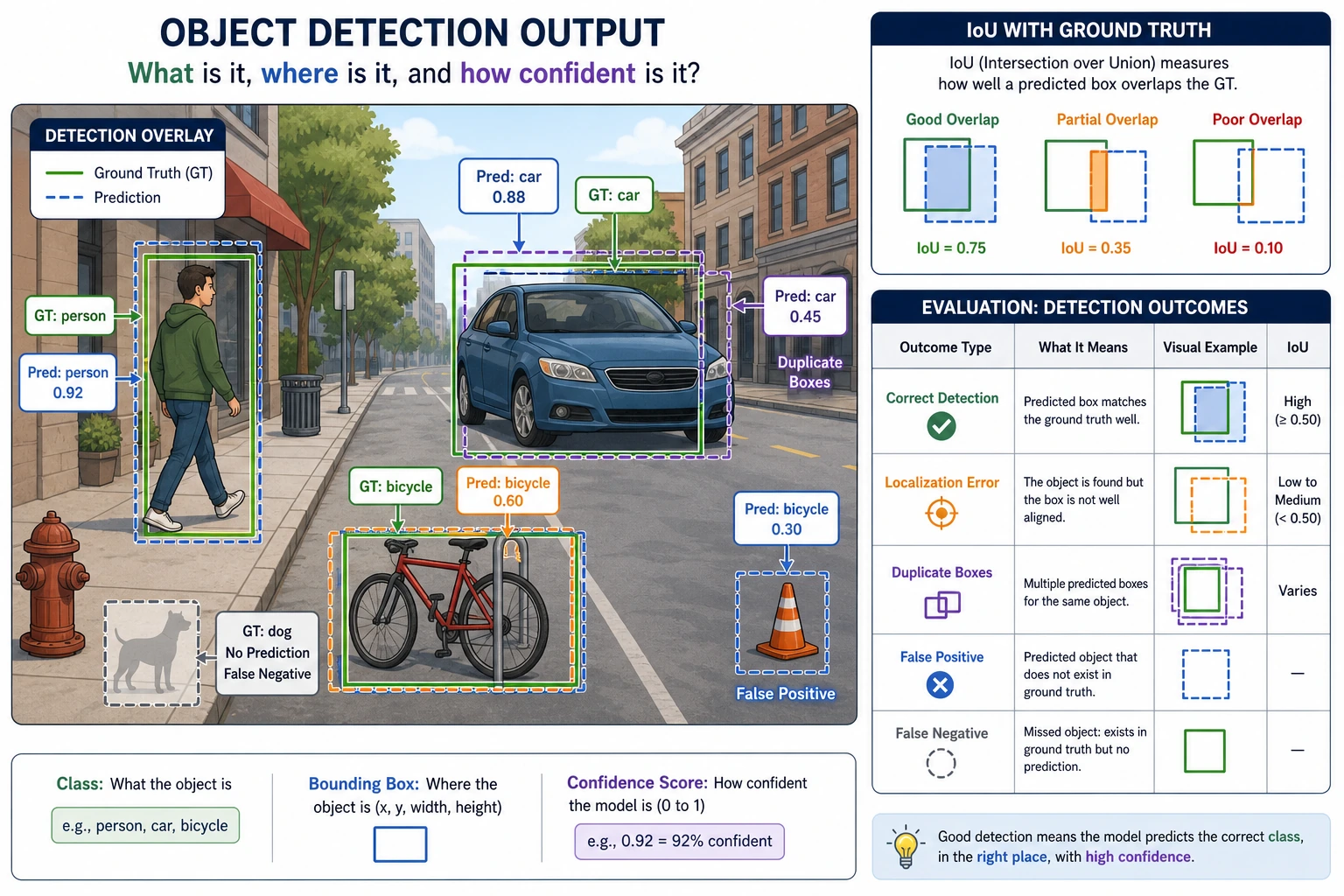

IoU measures how much the predicted box overlaps the ground-truth box.

truth = (10, 10, 50, 50)
pred = (20, 20, 60, 60)

def area(box):
    x1, y1, x2, y2 = box
    return max(0, x2 - x1) * max(0, y2 - y1)

ix1 = max(truth[0], pred[0])
iy1 = max(truth[1], pred[1])
ix2 = min(truth[2], pred[2])
iy2 = min(truth[3], pred[3])
intersection = area((ix1, iy1, ix2, iy2))
union = area(truth) + area(pred) - intersection

print("iou:", round(intersection / union, 3))

Expected output:

iou: 0.391

Detection debugging starts by printing boxes and metrics. Do not judge detection quality from one nice screenshot.

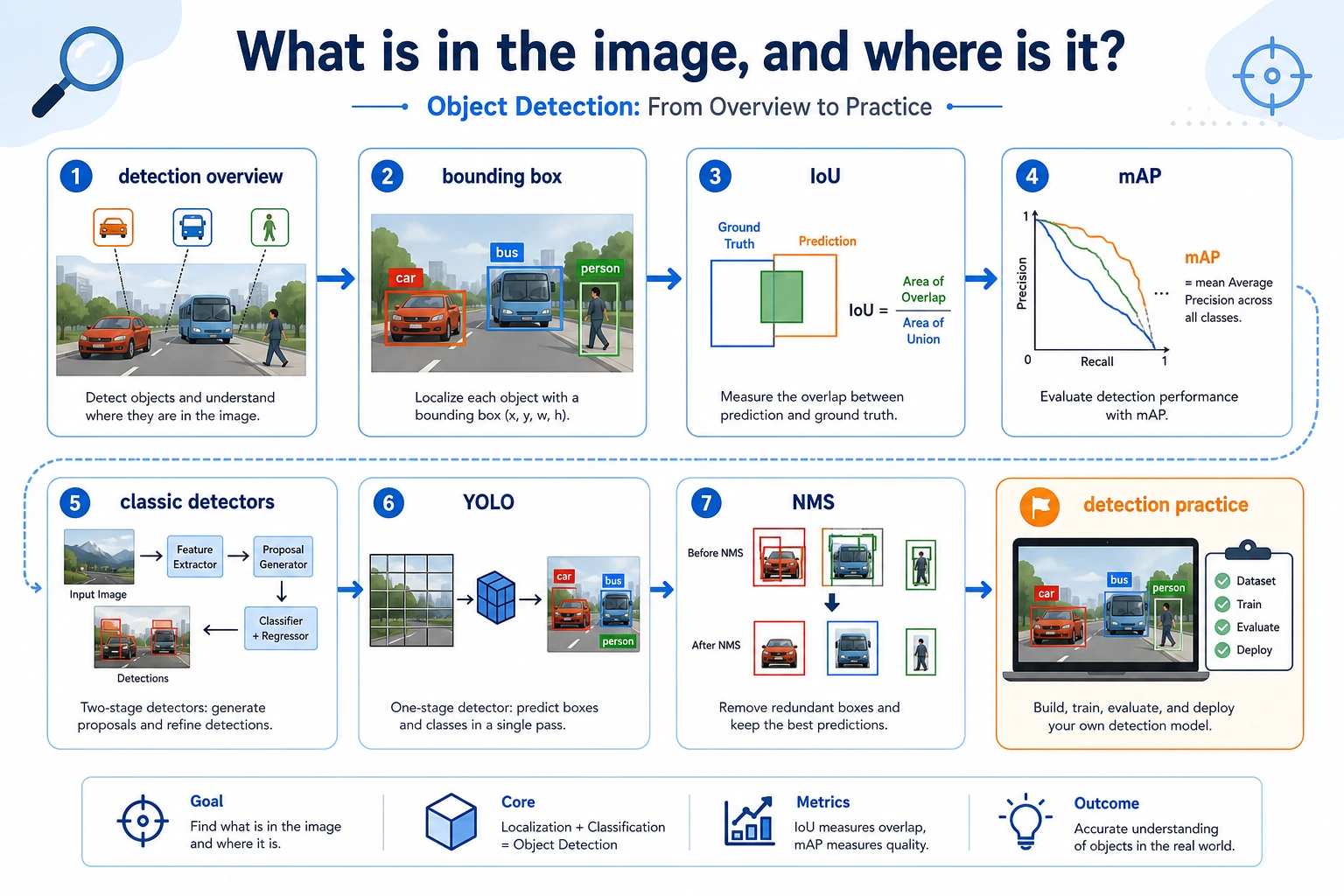

Learn in This Order

Step	Read	Practice Output
1	Detection overview	Explain box, class, confidence, IoU, mAP
2	Classic detectors	Compare two-stage and one-stage ideas
3	YOLO	Understand grid prediction, threshold, NMS, and speed trade-offs
4	Detection practice	Record false positives, missed detections, and threshold changes

Pass Check

You pass this chapter when you can explain a detection result with boxes, confidence, IoU, and at least one false-positive or false-negative case.
