10.3.4 YOLO Series
YOLO became popular not just because it can detect objects, but because it turns object detection into a more engineering-friendly form:
- Faster
- More direct
- Better suited to real-time scenarios
So in this section, the key is not the version numbers, but the route it represents:
Make detection as close to one step as possible.
Learning Objectives
- Understand what type of detector YOLO belongs to
- Understand the main difference between one-stage detection and two-stage detection
- Understand the basic role of confidence, box filtering, and NMS
- Build a practical judgment of YOLO’s value in engineering deployment
What is the core idea behind YOLO?
One-stage detection
What YOLO tries to do is:
- No two-step process
- Directly output classes and boxes from the image in one pass
Why is this attractive?
Because it reduces:
- The extra proposal stage
- A more complex detection pipeline
So it is easier to achieve:
- Real-time performance
An analogy
Two-stage detection is like first drawing around suspicious areas, then sending someone to inspect them one by one. YOLO is more like taking one quick look and reporting at the same time:
- Where the objects are
- What they are
What does YOLO’s output roughly look like?
You can usually think of it as a set of candidate boxes, where each candidate includes:
- Class
- Confidence
- Bounding box coordinates
Then, through filtering and NMS, the final result is obtained.

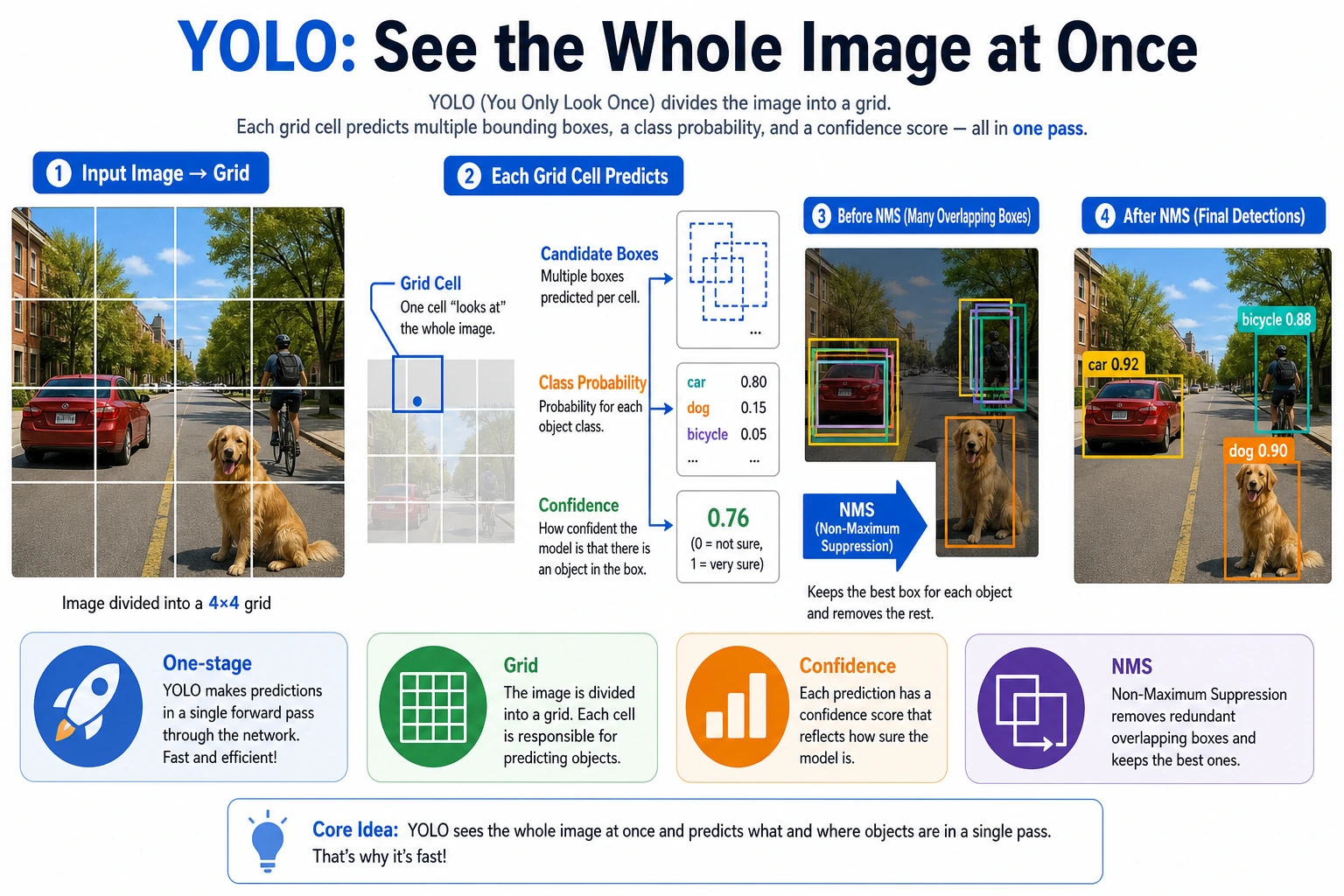

A more beginner-friendly analogy
You can think of YOLO as:
- The model scans the whole image first
- Then it reports all at once: “Where something seems to be, what it seems to be, and roughly where the box is”
This is very different from two-stage detection. Two-stage detection is more like:
- First drawing suspicious regions everywhere
- Then carefully checking each region
YOLO is more like:
Scan once, then report the candidate objects as a whole.
A judgment table that beginners should remember first
| What are you concerned about now? | Which layer is more worth looking at first? |
|---|---|
| Why is it fast? | The one-stage route and short inference chain |
| Why are there so many boxes? | Candidate box outputs |
| Why do the results overlap? | NMS and thresholds |
| Why do real-time projects like it? | Engineering deployment and ecosystem maturity |
This table is very suitable for beginners because it turns YOLO from a “collection of version names” back into a few concrete questions.
A minimal “candidate box output” example
The example below is not simulating a real YOLO network, but it helps you build one very important intuition:
- Model outputs are usually not the “final answer”
- They are a batch of candidate boxes with scores
predictions = [
{"class": "person", "score": 0.93, "box": (12, 18, 80, 160)},
{"class": "person", "score": 0.87, "box": (15, 20, 82, 158)},
{"class": "dog", "score": 0.78, "box": (120, 60, 190, 150)},
]
for pred in predictions:
print(pred)
Expected output:
{'class': 'person', 'score': 0.93, 'box': (12, 18, 80, 160)}
{'class': 'person', 'score': 0.87, 'box': (15, 20, 82, 158)}
{'class': 'dog', 'score': 0.78, 'box': (120, 60, 190, 150)}
The first two boxes are both person candidates and are close to each other. That is the setup for the NMS example below.
The most important thing to remember from this output is not the field names, but rather:
- One-stage detection often naturally produces many candidates
- Post-processing is part of the detection pipeline itself
First, run a minimal NMS intuition example
def iou(box_a, box_b):
ax1, ay1, ax2, ay2 = box_a
bx1, by1, bx2, by2 = box_b
inter_x1 = max(ax1, bx1)
inter_y1 = max(ay1, by1)
inter_x2 = min(ax2, bx2)
inter_y2 = min(ay2, by2)
inter_w = max(0, inter_x2 - inter_x1)
inter_h = max(0, inter_y2 - inter_y1)
inter_area = inter_w * inter_h
area_a = (ax2 - ax1) * (ay2 - ay1)
area_b = (bx2 - bx1) * (by2 - by1)
union = area_a + area_b - inter_area
return inter_area / union if union > 0 else 0.0
predictions = [
{"box": (10, 10, 30, 30), "score": 0.95},
{"box": (12, 12, 31, 31), "score": 0.88},
{"box": (60, 60, 90, 90), "score": 0.91},
]
def nms(preds, iou_threshold=0.5):
preds = sorted(preds, key=lambda x: x["score"], reverse=True)
kept = []
while preds:
best = preds.pop(0)
kept.append(best)
preds = [
pred for pred in preds
if iou(best["box"], pred["box"]) < iou_threshold
]
return kept
print(nms(predictions))
Expected output:
[{'box': (10, 10, 30, 30), 'score': 0.95}, {'box': (60, 60, 90, 90), 'score': 0.91}]
The middle box is removed because it overlaps too much with the highest-scoring first box. The third box is kept because it is far away and likely represents another object.
What is the key value of this example?
It shows that detection outputs are not immediately usable. In many cases, the model will produce:
- A bunch of overlapping candidate boxes
And the role of NMS is:
- Keep the few most representative ones
Why is this especially important for YOLO?
Because a one-stage route like YOLO naturally produces many candidates, and post-processing is part of the whole detection pipeline.
Another minimal example: threshold filtering first
predictions = [
{"class": "person", "score": 0.93},
{"class": "person", "score": 0.48},
{"class": "dog", "score": 0.78},
]
def filter_by_score(preds, threshold=0.5):
return [pred for pred in preds if pred["score"] >= threshold]
print(filter_by_score(predictions, threshold=0.5))
Expected output:
[{'class': 'person', 'score': 0.93}, {'class': 'dog', 'score': 0.78}]
The lower-scoring person candidate is removed. In a real project, changing this threshold directly changes the balance between missed detections and false detections.
This example is very suitable for beginners because it helps you see:
- Detection systems usually do not draw boxes from all candidates directly
- They first filter with scores and rules

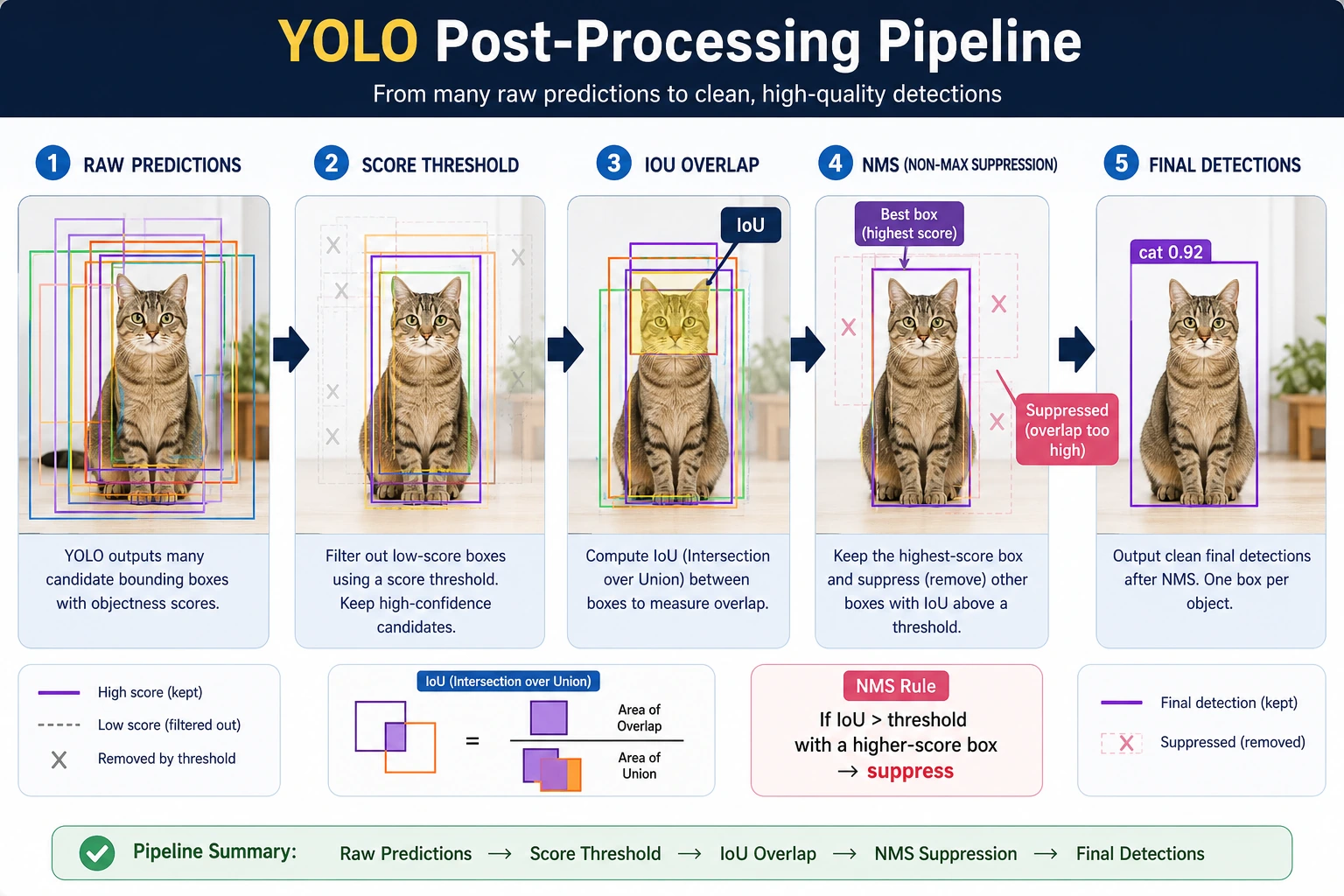

YOLO outputs are usually a batch of candidate boxes, not the final result. When reading the diagram, first filter low-score boxes with the score threshold, then merge overlapping boxes with NMS, and only then do you get the detection results you see on the page.
Why is YOLO so popular in engineering?
Strong real-time performance
Many scenarios directly require:
- Real-time camera detection
- Fast response on edge devices
YOLO-style routes are very suitable for these needs.
Relatively unified structure
For many engineering practitioners, it is easier to implement than a complicated multi-stage pipeline.
Mature community and engineering ecosystem
This makes it more likely to be tried first in real projects.
When doing a real-time detection project for the first time, why do many teams try YOLO first?
Because YOLO often satisfies several very practical conditions at once:
- Easy to get started
- Short inference chain
- Many community models
- Plenty of deployment documentation
In other words, its appeal is not just accuracy, but:
It is especially easy to quickly get a version that “works in engineering.”
If you put YOLO into a project, what is the most worth showing first?
What is usually most worth showing is not:
- Only one detection result image
But rather:
- Baseline detection results
- Comparison before and after threshold tuning
- Box changes before and after NMS
- False positive, missed detection, and small-object cases
This makes it easier for others to see:
- That you understand the detection pipeline
- Not just that you called an existing model
The most common pitfalls
Mistake 1: YOLO equals object detection
YOLO is an important route, but not the whole field.
Mistake 2: Faster automatically means better
You still need to consider:
- Small-object performance
- Box localization quality
- Deployment constraints
Mistake 3: Post-processing is not important
Post-processing such as NMS and threshold settings directly affects the final experience.
The safest default sequence for a first YOLO project
When you first put YOLO into a project, the safer sequence is usually:
- First define the class boundaries and annotation rules clearly
- First run a baseline with the default model and default thresholds
- First look at false positives, missed detections, and small-object performance
- Then adjust thresholds and NMS
- Finally consider switching to a larger model or more complex augmentation
This sequence is important because the mistake many beginners make is:
- Switching models right away
- Without understanding what the baseline is actually getting wrong
A troubleshooting order beginners can copy directly
If a YOLO project does not perform well, a more stable troubleshooting order is usually:
- Check the class boundaries and annotation rules first
- Then check the score threshold and NMS
- Then see which types of objects the false positives / missed detections are concentrated on
- Finally consider switching to a larger model or more complex augmentation
This is usually more effective than directly changing the version number.
Summary
The most important thing in this section is to build an engineering judgment:
YOLO represents a one-stage, real-time-friendly detection route. Its popularity is not just because it can detect objects, but because it is easier to quickly get detection working in engineering practice.
What you should take away from this section
- The most important thing about YOLO is not the version number, but the one-stage real-time route it represents
- Its output is usually a set of candidate boxes, and post-processing is part of the detection pipeline
- When doing a project for the first time, first understand the false positives and missed detections in the baseline, then talk about model upgrades
Exercises
- Adjust the
iou_thresholdin the example and see how the number of kept boxes changes. - Explain in your own words: why is one-stage detection easier to make real-time?
- Why is NMS important for detection tasks?
- Think about it: when might you not choose YOLO first?
