11.5.5 CTC and Deep Speech: Sequence Alignment in Speech Recognition

Where this section fits

This section is an extension of Seq2Seq: it helps you understand why speech recognition cannot be trained by simply using “one audio frame corresponds to one character.”

The key idea is:

CTC solves the problem of training a model when the input is very long, the output is shorter, and the two are not precisely aligned in the labels.

Why is speech recognition more troublesome than text classification?

Text classification is usually:

one sentence -> one label

Machine translation is usually:

one sequence of tokens -> another sequence of tokens

But speech recognition is:

a long sequence of audio frames -> a sequence of text

The problem is:

• There are many audio frames, but only a few text tokens
• One character may span multiple audio frames
• Training data usually tells you only the full transcription, not which character corresponds to each frame

This is the sequence alignment problem.

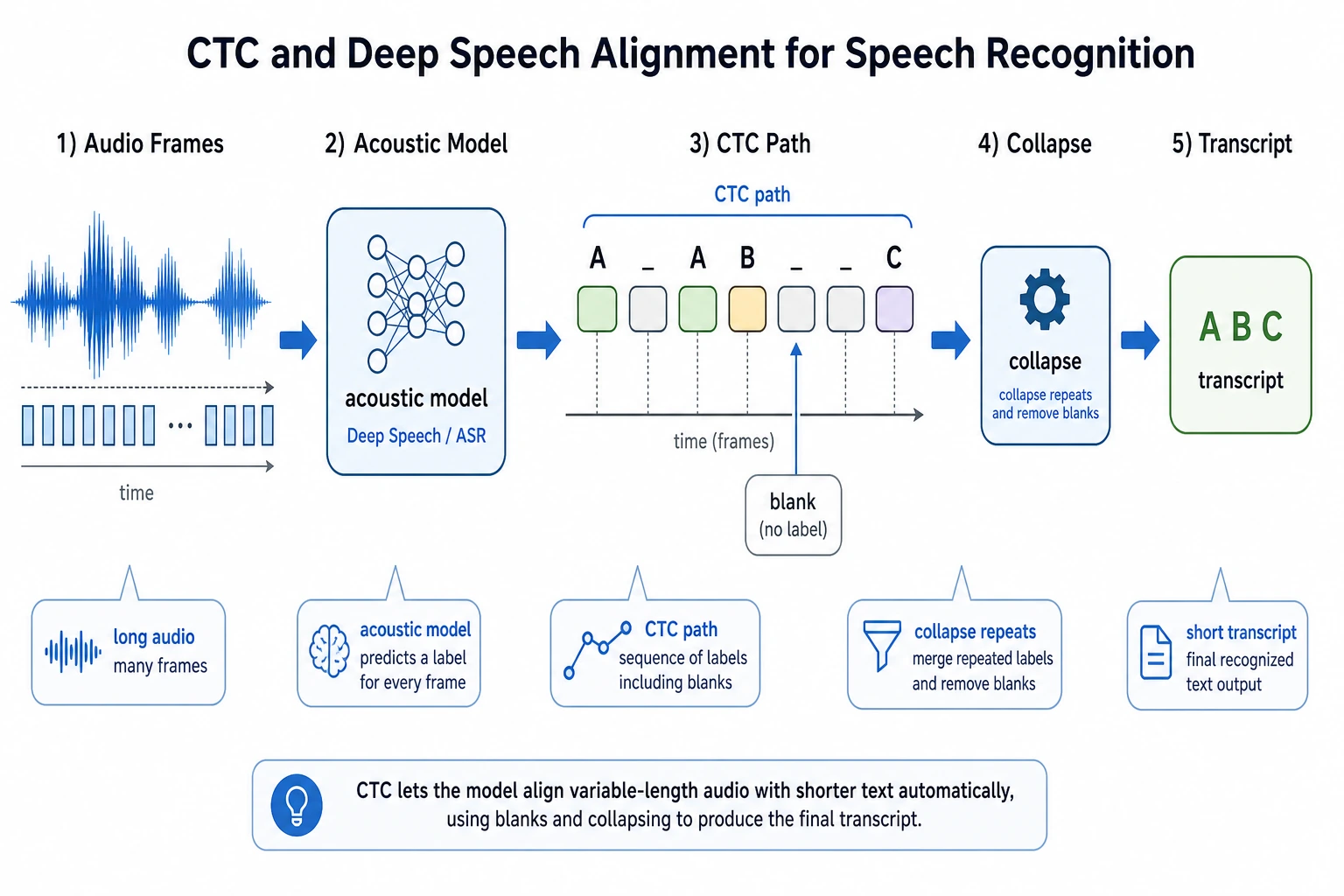

You can picture the difficulty like this:

The model sees many small time slices. The label only says the final sentence. CTC is the bridge between these two worlds.

The core intuition of CTC: let the model first output paths with blanks and repeats

CTC introduces a special symbol, blank. The model can first output a longer path, and then get the final text by “removing repeats and blanks.”

For example:

Model path: _ I I _ love love _ AI _
Collapsed result: I love AI

This means the model does not need to know in advance:

• Which frame “I” starts on
• How long “love” lasts
• Which frames are just pauses or transitions

It only needs to learn this: among all paths that collapse to the correct text, the overall probability should become larger.

Why is Deep Speech an important milestone?

Deep Speech represents an important route into end-to-end speech recognition in the deep learning era.

Traditional ASR systems often consist of many modules:

• Acoustic model
• Pronunciation lexicon
• Language model
• Decoder

Work like Deep Speech pushed a more end-to-end approach:

Learn text output directly from audio features, and compress a complex pipeline into a trainable model.

For beginners, you do not need to reproduce a full ASR system at the start. It is enough to understand why it matters:

• It makes speech recognition look more like one unified training problem
• CTC allows unaligned sequences to be trained
• Later models like Whisper continue pushing speech recognition toward more general pretraining approaches

A minimal collapse example

def ctc_collapse(path, blank="_"):
    result = []
    prev = None

    for token in path:
        if token != blank and token != prev:
            result.append(token)
        prev = token

    return result

path = ["_", "I", "I", "_", "love", "love", "_", "AI", "_"]
print(ctc_collapse(path))

The output will be close to:

['I', 'love', 'AI']

This example cannot replace the CTC formula, but it can help you build intuition first:

The model can first produce a long frame-level path, and then collapse it into the final short text.

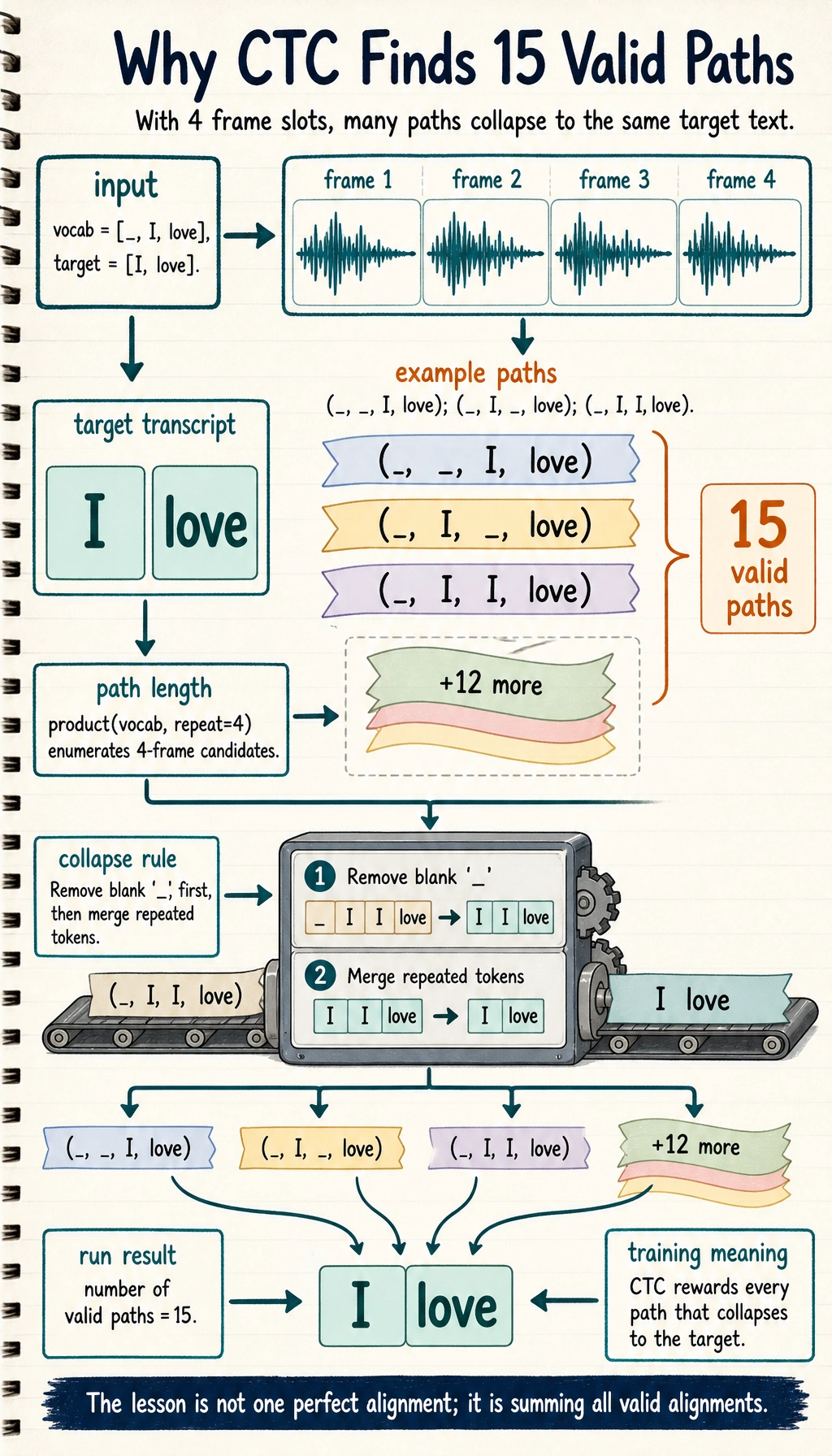

A tiny alignment search you can run

The key idea is not that there is only one correct frame-level path. Instead, many paths can collapse into the same text. CTC training sums the probability of all valid paths.

The following toy program enumerates short paths that can become ["I", "love"]:

from itertools import product

def ctc_collapse(path, blank="_"):
    result = []
    prev = None

    for token in path:
        if token != blank and token != prev:
            result.append(token)
        prev = token

    return result

vocab = ["_", "I", "love"]
target = ["I", "love"]
valid_paths = []

for path in product(vocab, repeat=4):
    if ctc_collapse(path) == target:
        valid_paths.append(path)

print("number of valid paths:", len(valid_paths))
for path in valid_paths[:8]:
    print(path, "->", ctc_collapse(path))

Expected output begins like this:

number of valid paths: 15
('_', '_', 'I', 'love') -> ['I', 'love']
('_', 'I', '_', 'love') -> ['I', 'love']
('_', 'I', 'I', 'love') -> ['I', 'love']

The key result is not the exact list order, but the count and the idea: many frame-level paths can collapse into the same transcript.

Reading the CTC path count

The 15 is not a score. It is the number of different 4-frame paths that collapse to the same target, so CTC can train without a single hand-labeled frame boundary.

When beginners first see CTC, the most important realization is:

• The model is allowed to be uncertain about exact frame boundaries
• Repeated tokens can represent a sound lasting longer
• Blank tokens can represent pauses and transitions
• Training rewards all paths that collapse to the correct transcript

So CTC is not asking humans to label every frame. It is asking the model to distribute probability over many possible alignments.

The relationship between CTC, Seq2Seq, and Transformer ASR

Method	How to understand it first
CTC	Train with all possible paths when the input and output are not precisely aligned
Seq2Seq Attention	The decoder dynamically attends to input positions while generating
Transformer ASR	Model long audio context with a stronger attention structure
Whisper	Large-scale weakly supervised speech data + Transformer, making ASR more general

This shows that speech recognition is not an isolated topic; it is connected to Seq2Seq, attention, and Transformer in this chapter.

Assigning historical milestones to course sections

Historical milestone	Problem it solves	Corresponding course section
CTC	How to train sequence models when input and output are not aligned	Section 5.5, Section 5.2 Seq2Seq
Deep Speech	End-to-end deep learning approach for speech recognition	Section 5.5, Section 12.3 Speech and multimodality
Seq2Seq Attention	Dynamically align input positions at each output step	Section 5.3 NLP attention mechanisms
Transformer ASR / Whisper	Large-scale pretrained speech recognition	Section 12 AIGC and multimodal extensions

The intuition you should have after this section

The hardest part of speech recognition is not just “turning sound into text,” but:

• The input and output lengths are different
• There are no frame-level alignment labels
• Speech contains pauses, stretching, repetition, and noise

The beauty of CTC is: It does not force humans to label every frame. Instead, it lets the model learn from all possible alignment paths on its own.
