9.8.2 Agent Evaluation Methods

Section Overview

Agent evaluation cannot rely only on whether the final answer looks right. An Agent is a system that plans, calls tools, and changes state, so evaluation must consider results, process, safety, and cost at the same time.

Learning Objectives

• Understand the difference between Agent evaluation and ordinary LLM evaluation
• Learn how to design metrics for task success, tool calling, and process quality
• Know how to build replayable evaluation samples
• Be able to use evaluation results to improve the next round of Prompts, tools, and workflows

---

Why Agent Evaluation Is More Complex

A normal question-answering system mainly checks whether the answer is correct. An Agent also needs to be judged by what it did to get there. An Agent may end up with the right answer, but if it called the wrong tool, skipped confirmation, or cost too much, it is still not a good system.

The Four-Layer Evaluation Framework

Level	Core Question	Example Metrics
Result layer	Was the user goal achieved?	Task success rate, human score, completion level
Process layer	Was the execution path reasonable?	Number of steps, retry count, loop rate, plan quality
Tool layer	Were the tools used correctly?	Tool selection accuracy, parameter error rate, tool failure rate
Safety layer	Did it exceed permissions or go out of control?	High-risk confirmation rate, refusal accuracy, rollback coverage

In real projects, do not try to perfect every metric at once. Start with task success rate, tool failure rate, human takeover rate, and average cost. That already reveals many problems.

Reading Guide

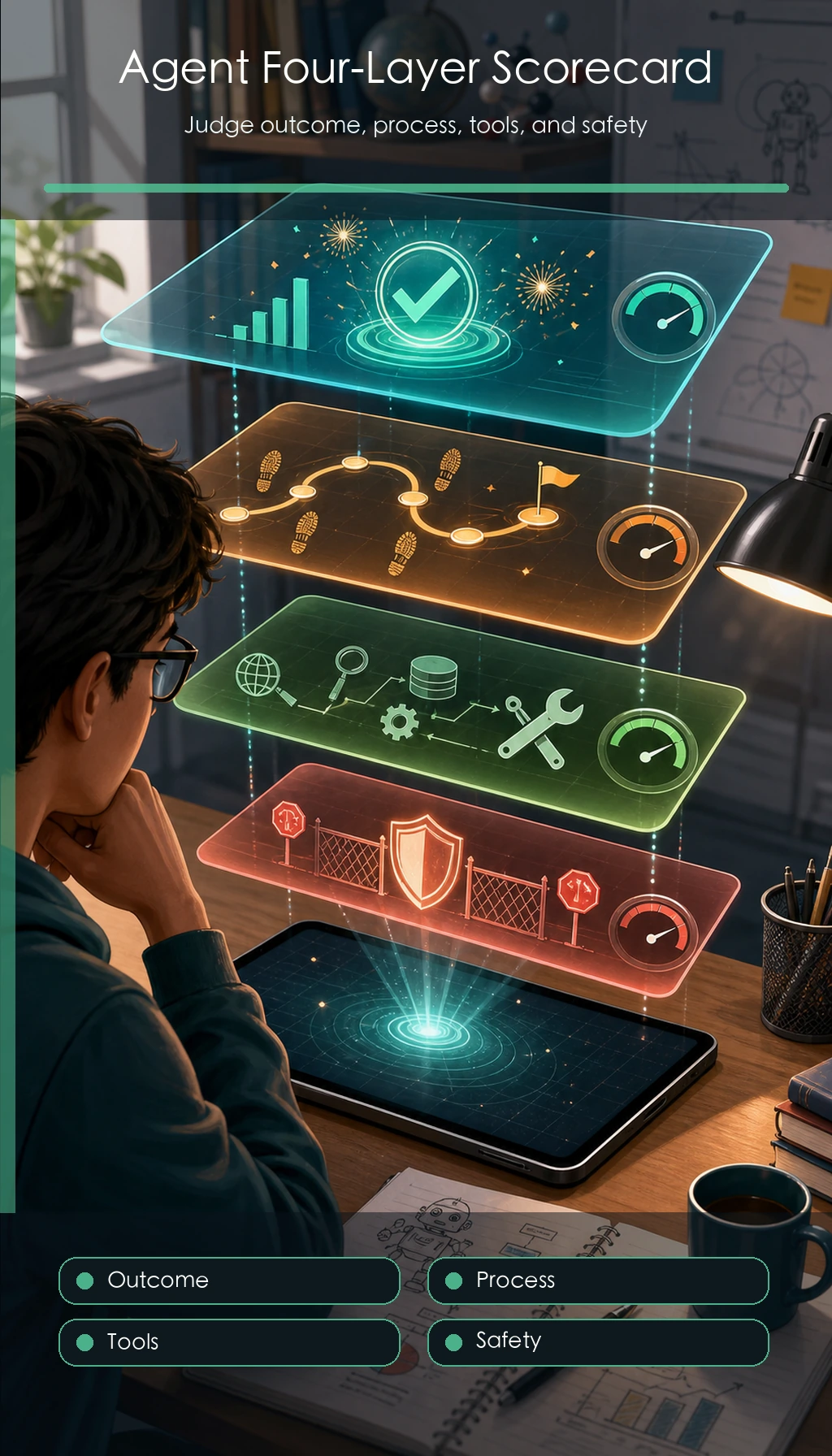

This diagram breaks Agent evaluation into four layers: result, process, tool, and safety. Beginners can use it to build a minimum scorecard first, instead of only checking whether the “final answer looks right.”

Building an Evaluation Task Set

An Agent evaluation set should come from real tasks, not from a few idealized examples. Each sample should include: user request, expected result, allowed tools, forbidden actions, success criteria, and risk level.

{
  "task_id": "rag_review_001",
  "user_request": "Help me prepare for RAG stage review",
  "allowed_tools": ["search_docs", "write_plan"],
  "forbidden_actions": ["delete_file", "send_message"],
  "success_criteria": ["Cover RAG fundamentals", "Include evaluation methods", "Cite course documentation"],
  "risk_level": "low"
}

Human Scoring Rubric

The most practical method early on is human scoring. You can use a 1–5 scale to evaluate task completion, process reasonableness, tool usage, safety boundaries, and clarity of expression.

Dimension	1 point	5 points
Task completion	Off target	Fully meets the goal
Tool usage	Wrong tool or missing tool	Tool choice and parameters are both reasonable
Process control	Loops, redundancy, hard to explain	Clear, traceable steps
Safety boundary	Overreach or no confirmation	High-risk actions have confirmation and fallback
Cost efficiency	Obvious waste	Reasonable number of steps and tokens

A Replayable Evaluation Record

For Agent systems, a score without a trace is hard to improve. A better evaluation record should keep both the final score and the execution path.

{
  "task_id": "rag_review_001",
  "run_id": "prompt_v3_model_a_2026_05_04",
  "task_success": true,
  "human_score": 4,
  "steps": 5,
  "tool_calls": [
    {"tool": "search_docs", "ok": true, "reason": "found RAG chapters"},
    {"tool": "write_plan", "ok": true, "reason": "generated weekly plan"}
  ],
  "safety_events": [],
  "cost_usd": 0.08,
  "main_issue": "sources were cited, but chapter links were not specific enough"
}

The reason for saving this structure is simple:

• task_success tells you whether the user goal was achieved
• steps tells you whether the Agent was efficient
• tool_calls tells you whether the tool route was correct
• safety_events tells you whether risky behavior happened
• main_issue tells you what to improve next

You can start with a very small analysis script:

runs = [
    {
        "task_id": "rag_review_001",
        "task_success": True,
        "human_score": 4,
        "steps": 5,
        "tool_calls": [
            {"tool": "search_docs", "ok": True},
            {"tool": "write_plan", "ok": True},
        ],
        "cost_usd": 0.08,
    },
    {
        "task_id": "rag_review_002",
        "task_success": False,
        "human_score": 2,
        "steps": 9,
        "tool_calls": [
            {"tool": "search_docs", "ok": False},
            {"tool": "search_docs", "ok": False},
        ],
        "cost_usd": 0.19,
    },
]

total = len(runs)
success_rate = sum(run["task_success"] for run in runs) / total
average_score = sum(run["human_score"] for run in runs) / total
average_steps = sum(run["steps"] for run in runs) / total
tool_calls = [call for run in runs for call in run["tool_calls"]]
tool_failure_rate = sum(not call["ok"] for call in tool_calls) / len(tool_calls)

print(f"success_rate: {success_rate:.0%}")
print(f"average_score: {average_score:.1f}/5")
print(f"average_steps: {average_steps:.1f}")
print(f"tool_failure_rate: {tool_failure_rate:.0%}")

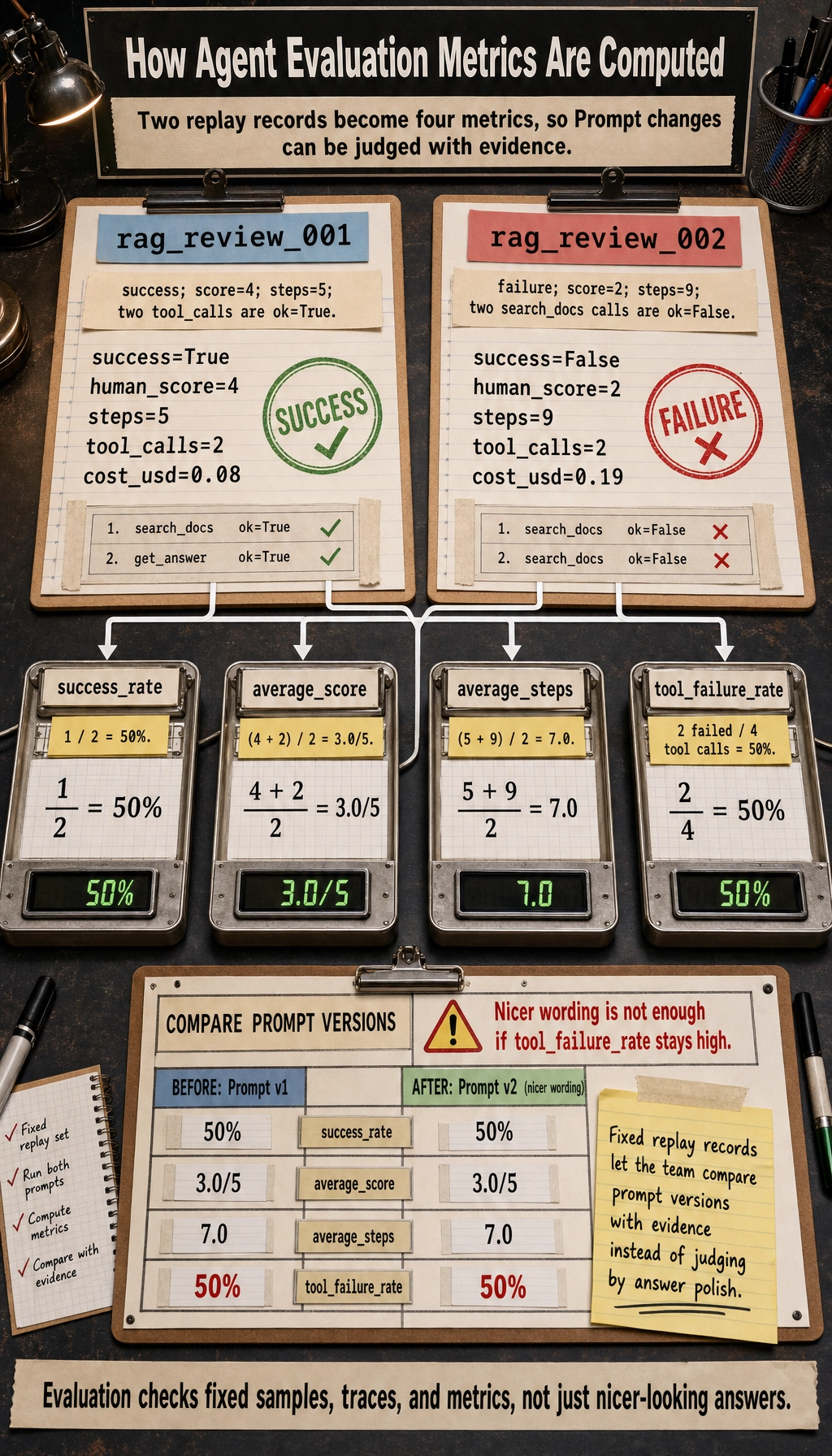

Expected output:

success_rate: 50%
average_score: 3.0/5
average_steps: 7.0
tool_failure_rate: 50%

This is already enough to answer a practical question:

Did the new Prompt really improve the Agent, or did it only make the answer look nicer?

Using Evaluation Results to Improve the System

The purpose of evaluation is not scoring itself, but guiding improvement. If tool selection mistakes are common, improve tool descriptions and routing strategy first. If plans are often incomplete, improve the planning Prompt or state representation first. If costs are too high, check for repeated tool calls or overly long context. If safety issues are common, add permission checks, confirmation steps, and refusal policies.

Common Misconceptions

The first mistake is testing only successful cases. The second is looking only at the final answer and ignoring the execution trace. The third is not having a fixed evaluation set and judging by intuition every time. The fourth is mixing model evaluation with system evaluation and ignoring tools, state, permissions, and cost.

Exercises

1. Design 10 evaluation tasks for a “learning planning Agent.”
2. Write allowed_tools, forbidden_actions, and success_criteria for each task.
3. Use the 1–5 scoring rubric to evaluate one Agent output.
4. Based on the scoring results, write 3 system improvement suggestions.

Passing Criteria

After finishing this section, you should be able to design a minimal Agent evaluation set, distinguish between result-layer, process-layer, tool-layer, and safety-layer metrics, and turn evaluation findings into improvements in Prompt design, tools, workflows, or permissions.
