11.7.5 Semantic Graphs and AMR: Turning Sentences into Structured Meaning

Where this section fits

Text is not just a sequence of words. Often, what we really want is the structured meaning behind a sentence.

The semantic-graph approach represented by AMR tries to answer this question:

Can we turn a sentence into a structural graph of “who did what to whom, and under what conditions”?

Why do we need semantic graphs?

Plain text representation often looks like this:

Jobs founded Apple.

But information extraction and knowledge-base systems want a structure more like this:

Person: Jobs
Relation: founded
Organization: Apple

If the sentence becomes more complex, it may contain time, place, cause, condition, negation, and reference. At that point, simple keyword matching is no longer enough.

The goal of semantic graphs is:

To turn meaning in natural language into a graph structure that machines can operate on more easily.

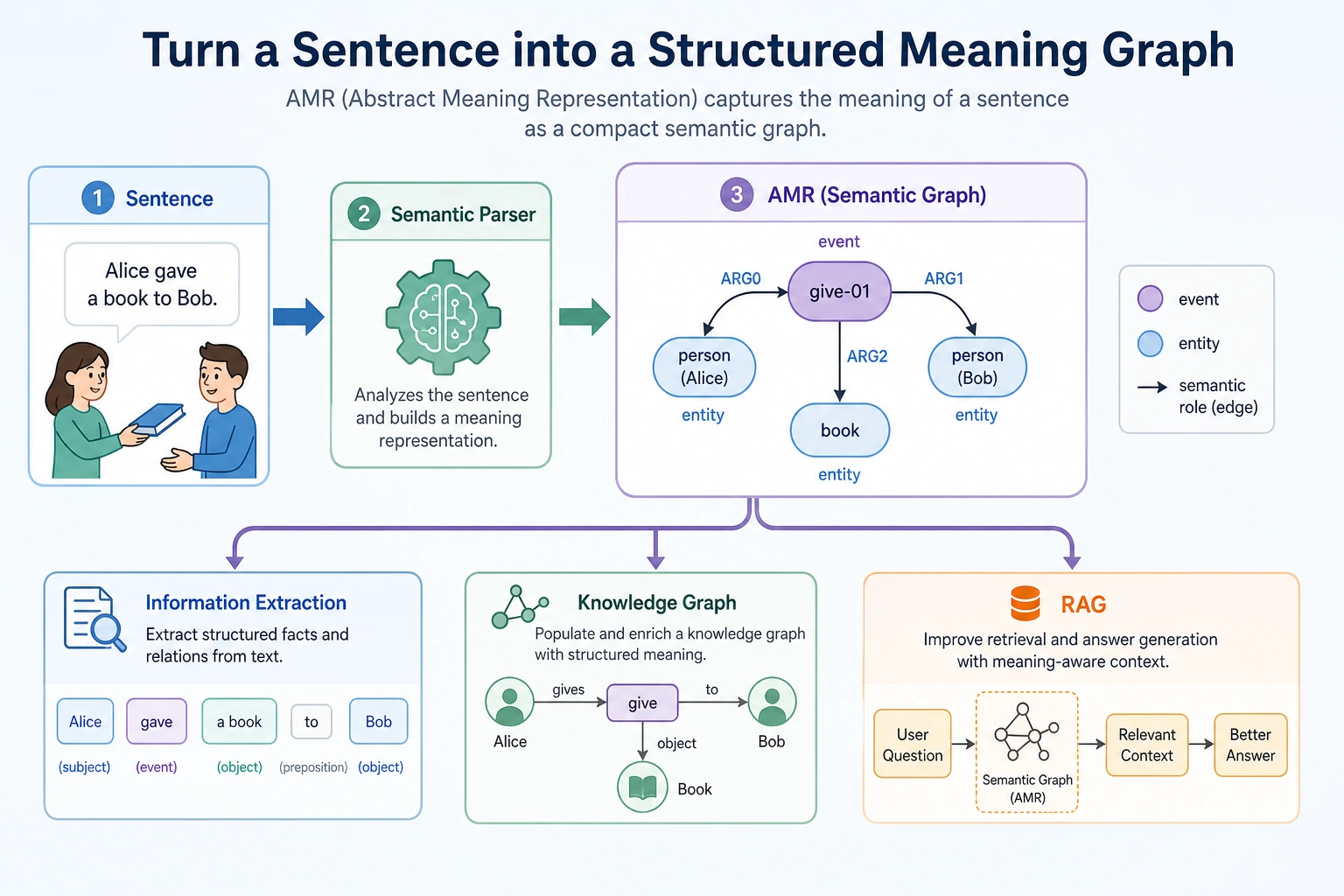

What is AMR?

AMR stands for Abstract Meaning Representation. You can first think of it as a kind of abstract semantic graph representation.

It does not just mark entities; it also tries to represent events and role relationships.

For example, “The student reads the paper” can be imagined as:

read-01
  ARG0: student
  ARG1: paper

This structure expresses:

• The core event is reading
• Who is reading: the student
• What is being read: the paper

This is much closer to “what the sentence is really trying to say” than simple word segmentation.

For beginners, the easiest way to read this structure is:

ARG0 and ARG1 do not mean “first word” and “second word.” They mean semantic roles. In many simple event sentences, you can first read them as:

• ARG0: the doer of the action
• ARG1: the thing affected by the action

This small shift is important: semantic graphs care less about word order and more about meaning.

What is the relationship between semantic graphs and information extraction?

Information extraction usually starts with more specific tasks:

• Entity extraction
• Relation extraction
• Event extraction
• Attribute extraction

Semantic graphs are more like a way to organize these results into a more complete meaning structure.

Task	What the output looks like
NER	Which words are person names, organizations, or locations
Relation extraction	What relationship A and B have
Event extraction	Who did what at what time
AMR / semantic graph	The roles and semantic structure behind the whole sentence

Why is this useful for RAG and knowledge-base projects?

The “automatically write Word course materials from a knowledge base” project you mentioned earlier can benefit a lot from semantic-graph ideas.

That is because course materials often contain:

• Definitions
• Example problems
• Steps
• Conditions
• Notes
• Cause-and-effect relationships

If the system only does vector retrieval, it may find similar paragraphs, but it may not understand the structure. If it can extract structured relationships, it can organize course materials more reliably:

Knowledge point -> Definition -> Example -> Solution steps -> Common mistakes -> Practice questions

This is the value of semantic graphs and information extraction for knowledge-base systems.

Relationship to syntactic parsing and recurrent neural networks

Before Transformer became mainstream, NLP spent a long time studying syntactic structure and semantic structure.

This included:

• Dependency parsing
• Constituency parsing
• Semantic role labeling
• Explorations of recurrent neural networks for tree-structured representations

Together, these works show one thing:

Text understanding is not only about word-vector similarity, but also about structural relationships.

Today, many large models can implicitly handle a lot of structure, but in serious knowledge bases, law, medicine, and educational content generation, explicit structure is still very valuable.

A minimal example of structured extraction

The following is not a full AMR example. It is just a simulation of the feeling of “rewriting a sentence into structure”:

sentence = "Professor Andrew Ng teaches a machine learning course"

semantic_graph = {
    "event": "teach",
    "teacher": "Professor Andrew Ng",
    "topic": "machine learning course",
}

for role, value in semantic_graph.items():
    print(role, "=>", value)

Expected output:

event => teach
teacher => Professor Andrew Ng
topic => machine learning course

Read this as a role table first. The sentence is no longer only a string; it has become an event plus participants.

The main point is for you to first understand:

• Text can be broken into roles
• Roles can be connected into a graph
• Graph structures can support later generation and retrieval

From a sentence to courseware structure

If your goal is to generate teaching materials from a knowledge base, a semantic graph can become an intermediate layer between “retrieved paragraph” and “final Word document.”

Here is a very small example:

sentence = "The chain rule helps neural networks compute gradients layer by layer."

semantic_graph = {
    "concept": "chain rule",
    "function": "compute gradients",
    "scenario": "neural networks",
    "method": "layer by layer",
}

courseware_block = {
    "title": semantic_graph["concept"],
    "definition": "A rule for decomposing the derivative of a composite function.",
    "why_it_matters": f"It helps {semantic_graph['scenario']} {semantic_graph['function']}.",
    "teaching_hint": f"Explain it as passing gradient signals {semantic_graph['method']}.",
}

for key, value in courseware_block.items():
    print(f"{key}: {value}")

Expected output:

title: chain rule
definition: A rule for decomposing the derivative of a composite function.
why_it_matters: It helps neural networks compute gradients.
teaching_hint: Explain it as passing gradient signals layer by layer.

This is the practical value of semantic structure: once the roles are explicit, the next template can use them consistently.

The workflow becomes clearer:

This is why AMR is useful even if you do not implement a full AMR parser right away. It teaches you to ask better structural questions:

• What is the concept?
• What action or relation is being described?
• Who or what participates in that relation?
• What condition, cause, or result is attached?

Assigning historical milestones to course chapters

Historical milestone	Problem it solved	Corresponding course chapter
Syntactic parsing / recurrent neural network explorations	Tree-structured language representation	Section 7.5, Section 5.2 Seq2Seq background
AMR	Representing sentence meaning as a semantic graph	Section 7.5, Section 7.4 information extraction project
Semantic role labeling	Who did what to whom	Section 7.4 information extraction, knowledge graph extensions
Knowledge Graph	Organizing extracted results into queryable knowledge	Chapter 8 RAG, knowledge-base systems

The intuition you should have after learning this section

Vector retrieval tells you “which text is similar,” while semantic graphs care more about “what roles and relationships exist in this text.”

If you are building educational course materials, knowledge-base QA, or automatic Word document generation, this difference is very important:

• Vector retrieval helps you find materials
• Information extraction helps you capture key points
• Semantic graphs help you organize structure
• Large models help you generate content according to templates

This is also why modern knowledge-base applications increasingly value “retrieval + structure + generation.”
