7.1.2 Tokenization and Tokenizer

What You Should Be Able to Do

After this lesson, you should be able to look at any prompt and answer four practical questions:

• How will this text be split into tokens?
• Which integer IDs will the model receive?
• Which positions are real content and which positions are padding?
• Will this prompt waste or exceed the context window?

The Mental Model

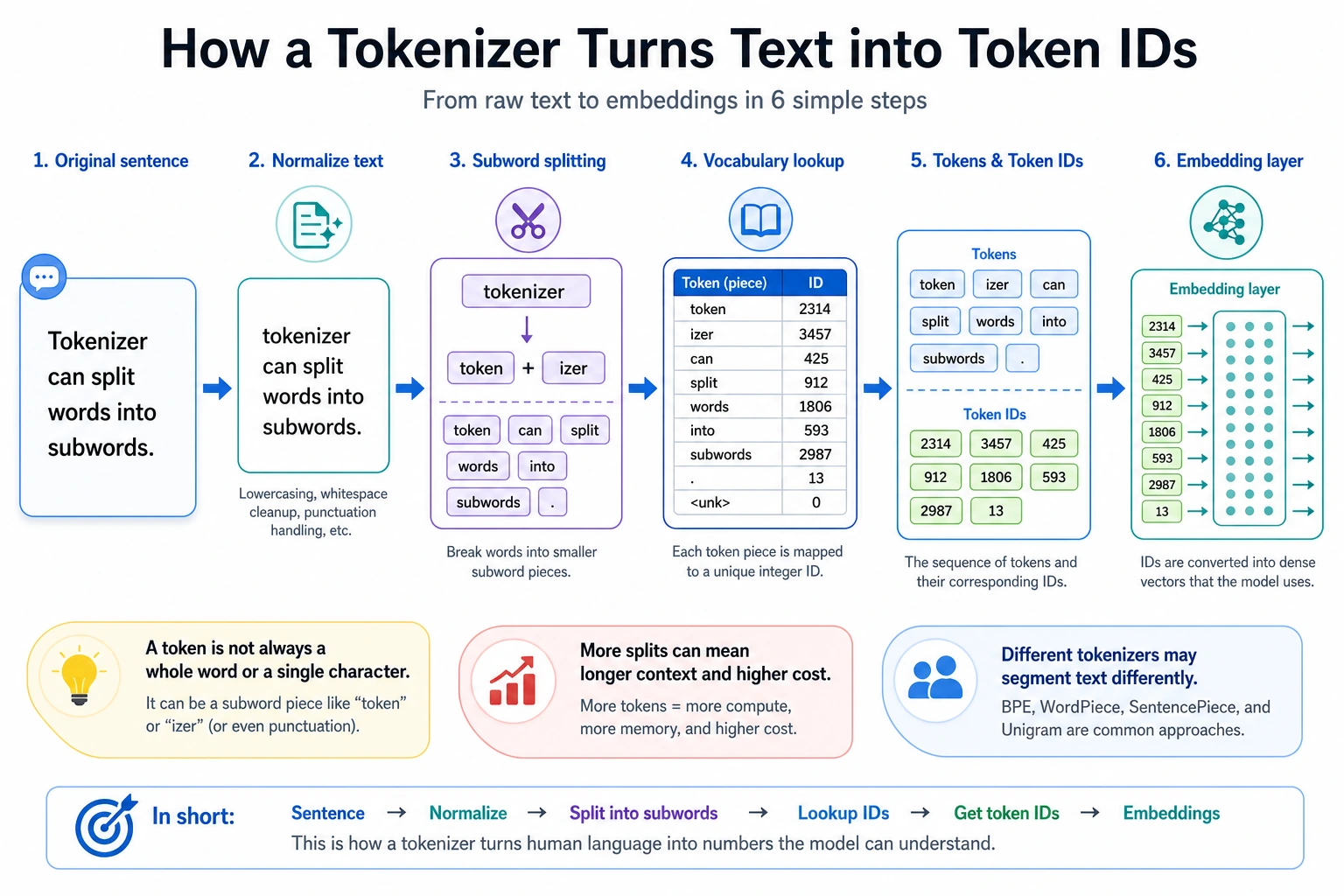

A neural network does not read strings directly. It receives tensors. A tokenizer is the contract between human text and model tensors:

raw text -> tokens -> input_ids -> model

Most LLM issues that look mysterious become easier once you inspect this contract:

• a word may become several tokens;
• punctuation, casing, Chinese, code, and emojis may change token count a lot;
• padding makes examples in one batch the same length;
• truncation silently removes content if the sequence is too long;
• chat templates add hidden structure tokens around system, user, and assistant messages.

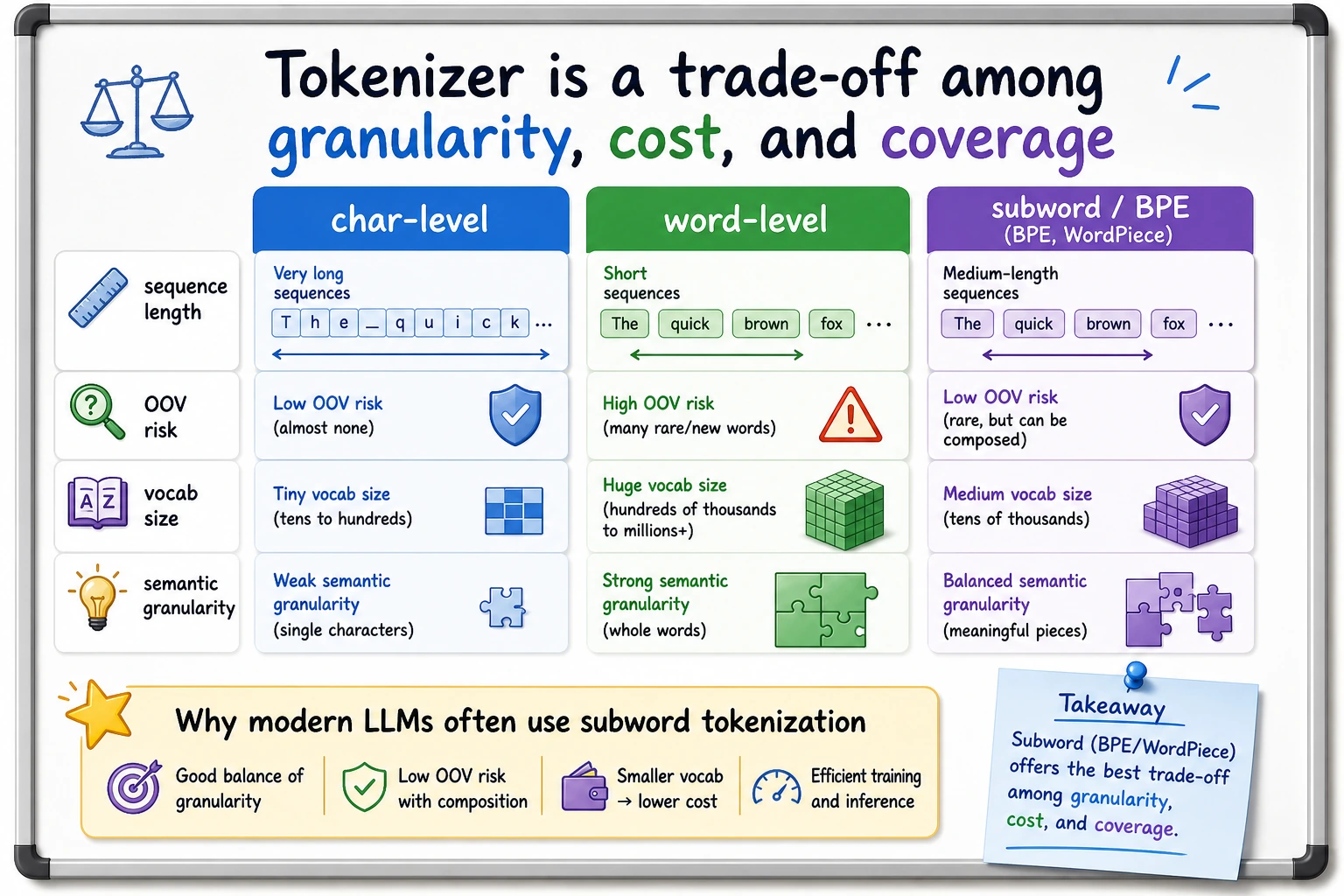

Split Size Trade-Off

There are three common choices:

Method	Example	Strength	Weakness
Character-level	r e f u n d	almost no unknown words	very long sequences
Word-level	refund policy	intuitive meaning units	many out-of-vocabulary words
Subword-level	token ##ization	practical balance	harder to read by eye

Modern LLMs usually use subword tokenization. BPE, WordPiece, and SentencePiece are different ways to learn reusable fragments from a corpus. The important idea is the same: frequent fragments get stable IDs, rare words can still be composed from smaller pieces.

Lab 1: Build a Tiny WordPiece-Style Tokenizer

Run this first. It is small enough to understand line by line, but it contains the same objects you see in real model APIs.

import re

VOCAB = {
    "[PAD]": 0,
    "[UNK]": 1,
    "[CLS]": 2,
    "[SEP]": 3,
    "refund": 4,
    "policy": 5,
    "reset": 6,
    "password": 7,
    "transform": 8,
    "##er": 9,
    "##s": 10,
    "token": 11,
    "##ization": 12,
    "please": 13,
    "help": 14,
    "need": 15,
    "evidence": 16,
}


def words(text):
    return re.findall(r"[A-Za-z]+", text.lower())


def split_wordpiece(word):
    if word in VOCAB:
        return [word]

    pieces = []
    start = 0
    while start < len(word):
        match = None
        for end in range(len(word), start, -1):
            piece = word[start:end] if start == 0 else "##" + word[start:end]
            if piece in VOCAB:
                match = piece
                break
        if match is None:
            return ["[UNK]"]
        pieces.append(match)
        start = end
    return pieces


def encode(text, max_length=10):
    tokens = ["[CLS]"]
    for word in words(text):
        tokens.extend(split_wordpiece(word))
    tokens.append("[SEP]")

    original_len = len(tokens)
    if len(tokens) > max_length:
        tokens = tokens[:max_length]
        tokens[-1] = "[SEP]"

    input_ids = [VOCAB.get(token, VOCAB["[UNK]"]) for token in tokens]
    attention_mask = [1] * len(input_ids)

    while len(input_ids) < max_length:
        tokens.append("[PAD]")
        input_ids.append(VOCAB["[PAD]"])
        attention_mask.append(0)

    return {
        "text": text,
        "original_len": original_len,
        "tokens": tokens,
        "input_ids": input_ids,
        "attention_mask": attention_mask,
    }


for example in [
    "Please help reset password",
    "Transformers refund policy",
    "Tokenization needs evidence",
]:
    row = encode(example, max_length=10)
    print("-" * 64)
    print("text:", row["text"])
    print("original_len:", row["original_len"])
    print("tokens:", row["tokens"])
    print("input_ids:", row["input_ids"])
    print("attention_mask:", row["attention_mask"])

Expected output:

----------------------------------------------------------------
text: Please help reset password
original_len: 6
tokens: ['[CLS]', 'please', 'help', 'reset', 'password', '[SEP]', '[PAD]', '[PAD]', '[PAD]', '[PAD]']
input_ids: [2, 13, 14, 6, 7, 3, 0, 0, 0, 0]
attention_mask: [1, 1, 1, 1, 1, 1, 0, 0, 0, 0]
----------------------------------------------------------------
text: Transformers refund policy
original_len: 7
tokens: ['[CLS]', 'transform', '##er', '##s', 'refund', 'policy', '[SEP]', '[PAD]', '[PAD]', '[PAD]']
input_ids: [2, 8, 9, 10, 4, 5, 3, 0, 0, 0]
attention_mask: [1, 1, 1, 1, 1, 1, 1, 0, 0, 0]
----------------------------------------------------------------
text: Tokenization needs evidence
original_len: 7
tokens: ['[CLS]', 'token', '##ization', 'need', '##s', 'evidence', '[SEP]', '[PAD]', '[PAD]', '[PAD]']
input_ids: [2, 11, 12, 15, 10, 16, 3, 0, 0, 0]
attention_mask: [1, 1, 1, 1, 1, 1, 1, 0, 0, 0]

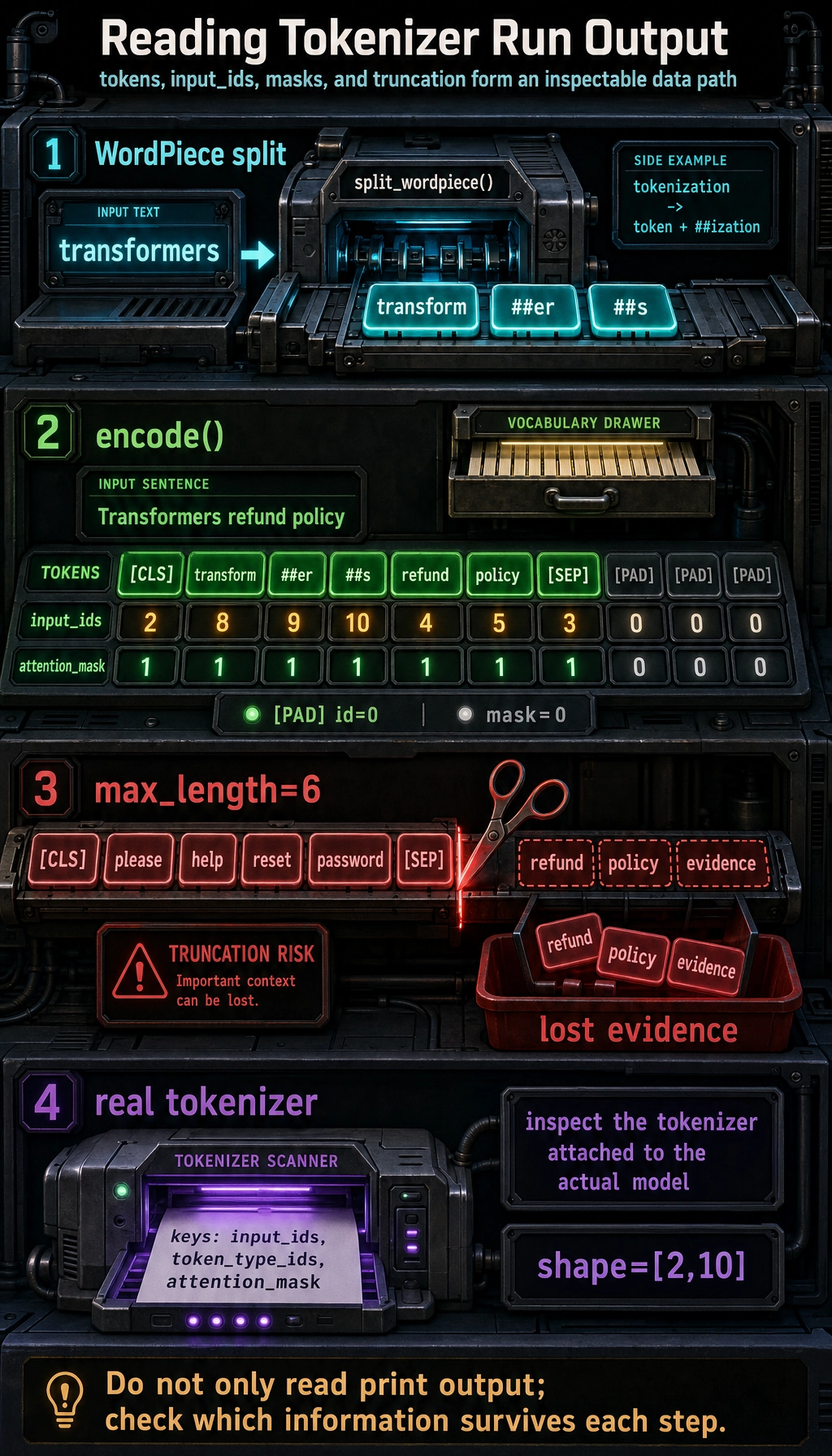

Read the output like this:

• [CLS] and [SEP] are structure tokens.
• transformers becomes transform, ##er, ##s because the whole word is not in VOCAB.
• input_ids are the integer values the model actually receives.
• attention_mask=0 marks [PAD] positions so the model can ignore them.

Lab 2: See Truncation as a Product Risk

Now force the same tokenizer into a small context window.

row = encode("Please help reset password refund policy evidence", max_length=6)
print("original_len:", row["original_len"])
print("tokens:", row["tokens"])
print("input_ids:", row["input_ids"])
print("attention_mask:", row["attention_mask"])

Expected output:

original_len: 9
tokens: ['[CLS]', 'please', 'help', 'reset', 'password', '[SEP]']
input_ids: [2, 13, 14, 6, 7, 3]
attention_mask: [1, 1, 1, 1, 1, 1]

The words refund policy evidence disappeared. In a real support assistant, that could remove the user’s actual intent. This is why tokenization is not a small preprocessing detail; it affects cost, retrieval size, prompt design, and failure modes.

Lab 3: Inspect a Real Hugging Face Tokenizer

Use this when you have internet access for the first model download.

python -m pip install "transformers>=4.0" torch

from transformers import AutoTokenizer

tokenizer = AutoTokenizer.from_pretrained("bert-base-uncased")

batch = tokenizer(
    ["Please help reset password", "Tokenization needs evidence"],
    padding="max_length",
    truncation=True,
    max_length=10,
    return_tensors="pt",
)

print(batch.keys())
print(batch["input_ids"].shape)
print(tokenizer.convert_ids_to_tokens(batch["input_ids"][1]))
print(batch["attention_mask"][1].tolist())

Expected shape-level output:

dict_keys(['input_ids', 'token_type_ids', 'attention_mask'])
torch.Size([2, 10])
['[CLS]', 'token', '##ization', 'needs', 'evidence', '[SEP]', '[PAD]', '[PAD]', '[PAD]', '[PAD]']
[1, 1, 1, 1, 1, 1, 0, 0, 0, 0]

The exact split can differ across tokenizers. That is the point: always inspect the tokenizer that belongs to the model you actually use.

Terms Worth Knowing

Term	Meaning in practice
vocab	token-to-ID dictionary learned during tokenizer training
OOV	out-of-vocabulary; often handled by [UNK] or subword composition
BPE	merges frequent character pairs into reusable subwords
WordPiece	similar subword idea, common in BERT-style tokenizers
SentencePiece	treats text as a raw stream; useful for multilingual and no-space languages
padding_side	whether pads are added on the left or right; important for some decoder models
context length	maximum token budget for input plus generated output
chat template	tokenizer-level formatting that adds role and boundary tokens

Debugging Checklist

When a prompt behaves strangely, inspect the tokenizer before blaming the model:

• Print tokens and token IDs for the exact prompt.
• Count tokens after the chat template, not just raw user text.
• Check whether truncation removed instructions, retrieved evidence, or the latest user question.
• Verify padding side and attention_mask when batching decoder models.
• Compare Chinese, English, code, and emoji-heavy inputs; their token counts can differ sharply.

Exercises

1. Remove transform from VOCAB. What happens to Transformers refund policy?
2. Change max_length from 10 to 5. Which useful tokens disappear first?
3. Add "##ing" and test resetting password. Can your tokenizer represent it?
4. Run Lab 3 with another model tokenizer and compare token counts for Chinese, English, and code.
5. For a RAG prompt, decide how many tokens you reserve for system instructions, retrieved evidence, user question, and answer space.

Summary

A tokenizer is not just a text splitter. It defines the model’s visible world:

text boundary -> token boundary -> ID sequence -> attention mask -> context budget

If you can inspect that path, you can explain many practical LLM problems before touching model architecture.
