9.4.6 Memory Engineering Implementation

Section focus

When we first talk about the concept of a "memory system" earlier, it is easy to form a misconception:

  • Memory is just storing information

But once it becomes real engineering work, you find the hard part is not "can it be stored", but:

What should be written, when should it be written, how should it be retrieved, and when should it be deleted.

These four things determine whether a memory system is ultimately "helpful" or "expensive and messy."

Learning Objectives​

  • Understand the core decisions in memory engineering: write, retrieve, expire, compress
  • Learn how to design a minimal, working memory read/write pipeline
  • Understand why "more memory" does not mean "better results"
  • Use a runnable example to master basic memory scoring and cleanup

What Does Memory Engineering Actually Solve?​

A memory system is not a "bucket", but a process with policies​

If we dump all conversations and tool results into long-term memory, it may look complete in the short term, but in the long run it usually leads to:

  • More and more noise
  • Lower retrieval hit rate
  • Higher token cost
  • Important facts getting buried instead

So the core of memory engineering is not "store everything", but "store with policies."

We can first split the memory pipeline into four parts​

  1. write: whether to store
  2. index: how to organize after writing
  3. retrieve: how to rank during queries
  4. lifecycle: expiration, cleanup, compression

As long as these four parts are clear, the system is much easier to keep stable.

An analogy​

A memory system is more like a library than a storage room.

  • A storage room only cares about "put it in"
  • A library must care about "cataloging, retrieval, removal, and archiving"

If an Agent needs to work for a long time, it must be closer to the latter.

Write Policy: What Information Is Worth Keeping in Long-Term Memory?​

Not every message is worth writing​

For example, these two kinds of information are very different in value:

  • "Hello, are you there?"
  • "The user prefers concise answers, no more than three points"

The second one is more suitable for long-term retention, while the first one usually is not.

A practical write decision​

You can start by filtering with three questions:

  1. Will this information be reused in the future?
  2. Is this information related to the user, the task, or the strategy?
  3. Is this information stable enough, rather than one-time noise?

Common types that can be written​

  • User preferences
  • Stable background information
  • Key task conclusions
  • Summaries of steps that have been proven reusable

Common types that are not recommended for direct long-term storage:

  • Temporary intermediate logs
  • Repeated small talk
  • Speculative content that cannot be verified

Retrieval Policy: How Do We Find "Useful Memory" Again?​

Retrieval is not just semantic similarity​

Pure similarity sometimes misses important engineering signals, such as:

  • Whether this memory is too old
  • Whether the memory itself is highly important
  • Whether it is related to the current user

A common ranking combination​

Retrieval scores can come from weighted multiple factors:

  • Semantic or keyword relevance
  • Importance score
  • Freshness decay
  • Source credibility

This is more stable than looking only at "does it look similar."

Why decay matters​

Some information becomes outdated. Without time decay, the system may keep using very old preferences or context in current decisions.

Lifecycle: Expiration, Cleanup, and Compression​

TTL is not optional​

Some memories are naturally short-lived, such as:

  • Temporary parameters for the current session
  • One-time state flags

These kinds of information are best stored with a TTL.

Cleanup is not as simple as "deleting a batch on a schedule"​

A better approach is usually to combine:

  • Expiration checks
  • Low-value eviction
  • Duplicate content merging

Compression makes the system sustainable over time​

When the number of records keeps growing, you can compress similar history into summaries, for example:

  • Merge the latest 20 "user preference confirmations" into one stable preference record

This can significantly reduce retrieval noise and context pressure.

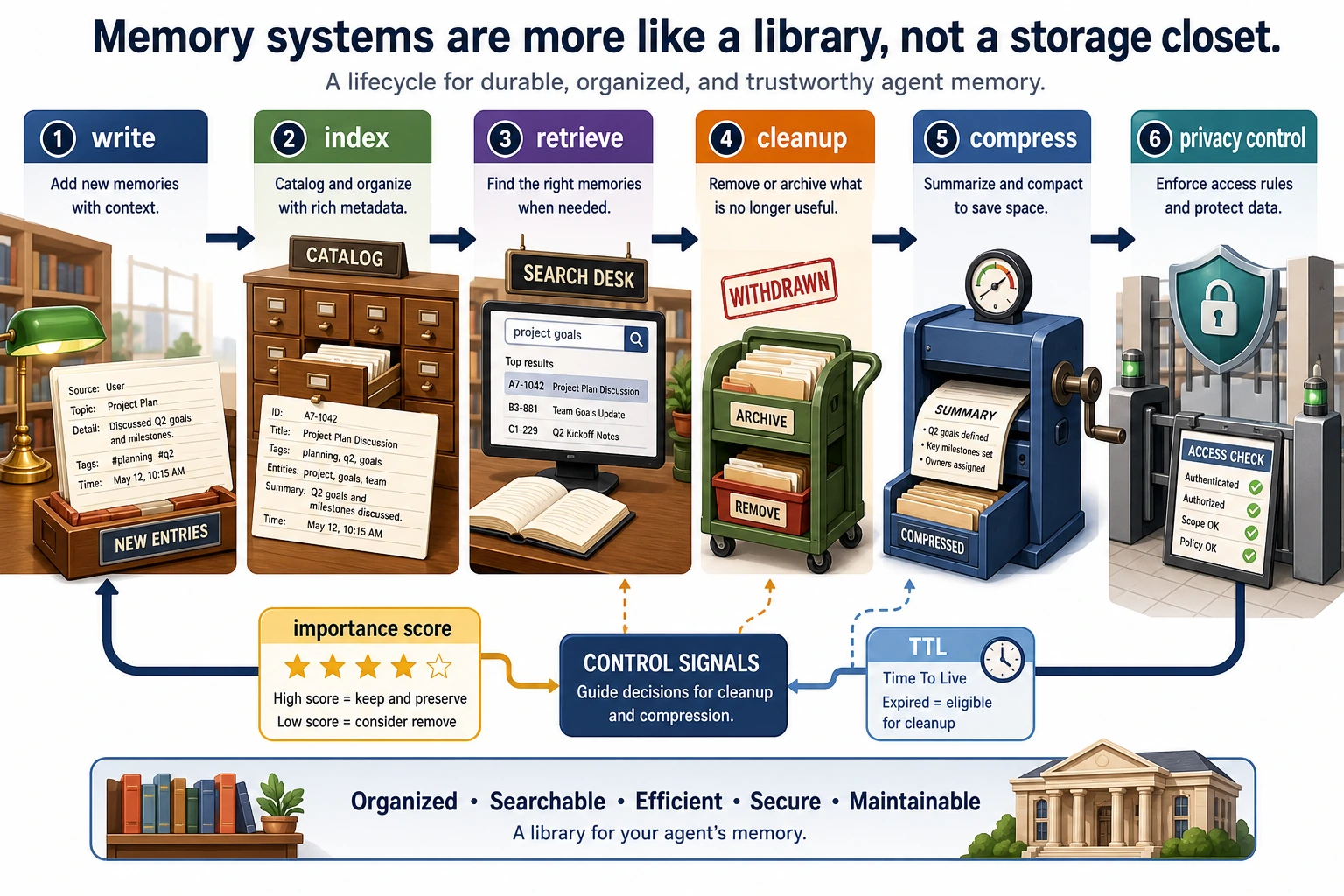

Memory engineering lifecycle diagram

Reading guide

Read this diagram by lifecycle: write decides whether to store, index decides how to organize, retrieve decides how to find it back, and cleanup / compress decide when to clean up and compress. The hard part of memory engineering is policy, not just storage.

First Run a Runnable Minimal Memory Engine​

The example below will demonstrate the full flow:

  1. Short-term message window
  2. Long-term memory writing (with importance and TTL)
  3. Query retrieval (relevance + importance + freshness)
  4. Expiration cleanup
from dataclasses import dataclass
from collections import deque
import math


@dataclass
class MemoryItem:
    memory_id: int
    text: str
    tags: list
    source: str
    importance: float
    created_step: int
    ttl_steps: int | None


class MemoryEngine:
    def __init__(self, short_window=4):
        self.short_messages = deque(maxlen=short_window)
        self.long_memories = []
        self.step = 0
        self._next_id = 1

    def tick(self):
        self.step += 1

    def add_short_message(self, role, content):
        self.short_messages.append({"role": role, "content": content, "step": self.step})

    def write_long_memory(self, text, tags=None, source="dialogue", importance=0.5, ttl_steps=None):
        tags = tags or []
        normalized = text.strip().lower()

        # Minimal deduplication: do not write the exact same text twice
        for item in self.long_memories:
            if item.text.strip().lower() == normalized and self._is_alive(item):
                return item.memory_id

        memory = MemoryItem(
            memory_id=self._next_id,
            text=text,
            tags=tags,
            source=source,
            importance=float(importance),
            created_step=self.step,
            ttl_steps=ttl_steps,
        )
        self._next_id += 1
        self.long_memories.append(memory)
        return memory.memory_id

    def _is_alive(self, item):
        if item.ttl_steps is None:
            return True
        return (self.step - item.created_step) <= item.ttl_steps

    def cleanup(self):
        self.long_memories = [item for item in self.long_memories if self._is_alive(item)]

    def retrieve(self, query, top_k=3):
        query_tokens = set(query.lower().split())
        scored = []

        for item in self.long_memories:
            if not self._is_alive(item):
                continue

            item_tokens = set(item.text.lower().split()) | set(tag.lower() for tag in item.tags)
            overlap = len(query_tokens & item_tokens)

            age = self.step - item.created_step
            recency = math.exp(-age / 20)  # newer items get higher scores

            score = (0.55 * overlap) + (0.30 * item.importance) + (0.15 * recency)
            scored.append((item, round(score, 4)))

        scored.sort(key=lambda x: x[1], reverse=True)
        return scored[:top_k]


engine = MemoryEngine(short_window=3)

engine.add_short_message("user", "I want to understand refund conditions")
engine.write_long_memory(
    "User preference: answer as briefly as possible, no more than three points",
    tags=["preference", "style"],
    importance=0.95,
)

engine.tick()
engine.add_short_message("assistant", "Okay, I'll keep it brief")
engine.write_long_memory(
    "Temporary debug flag: this round uses experimental prompt v2",
    tags=["debug"],
    importance=0.2,
    ttl_steps=1,
)

engine.tick()
engine.write_long_memory(
    "Key refund policy points: within 7 days and learning progress below 20%",
    tags=["refund", "policy"],
    importance=0.9,
)

print("before cleanup:", [m.text for m in engine.long_memories])
engine.tick()
engine.cleanup()
print("after cleanup :", [m.text for m in engine.long_memories])

results = engine.retrieve("Please answer the refund policy in a concise style", top_k=2)
print("\nretrieval:")
for item, score in results:
    print(item.memory_id, round(score, 4), item.text)

Expected output:

before cleanup: ['User preference: answer as briefly as possible, no more than three points', 'Temporary debug flag: this round uses experimental prompt v2', 'Key refund policy points: within 7 days and learning progress below 20%']
after cleanup : ['User preference: answer as briefly as possible, no more than three points', 'Key refund policy points: within 7 days and learning progress below 20%']

retrieval:
1 1.5141 User preference: answer as briefly as possible, no more than three points
3 1.5127 Key refund policy points: within 7 days and learning progress below 20%

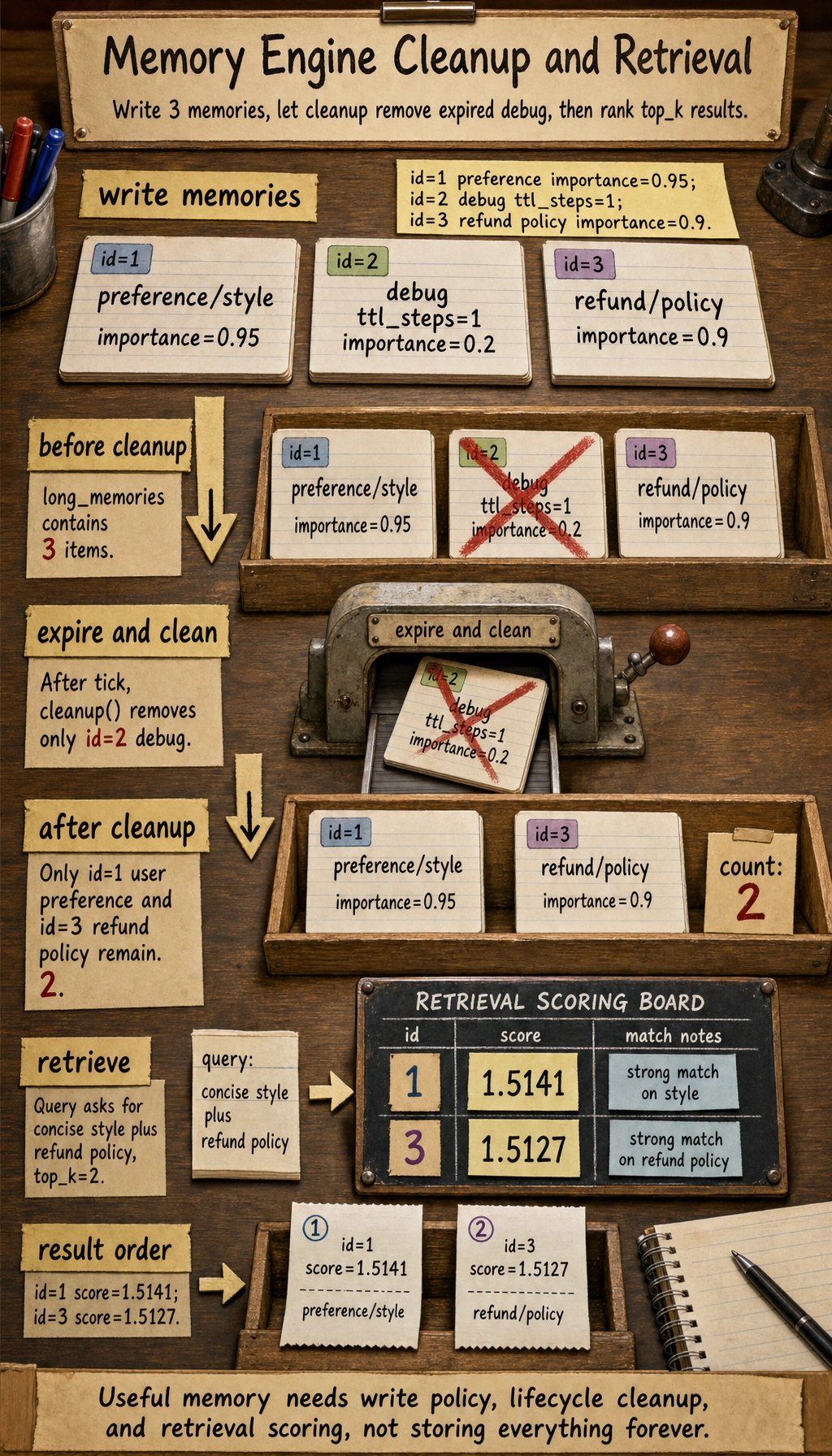

Memory engine cleanup and retrieval result map

The three most important things to learn from this code​

  1. Writing is not unconditional importance, tags, and deduplication are used to control write quality
  2. Retrieval is not pure similarity Relevance, importance, and freshness together determine ranking
  3. A lifecycle is necessary ttl_steps and cleanup prevent long-term growth from getting out of control

Why is it reasonable to clear the "debug flag"?​

Because it is temporary information and has ttl_steps=1. If it is kept in later steps, it usually only pollutes retrieval results.

Why are "user preference" and "refund policy" retrieved first?​

Because the query terms trigger both:

  • concise matching the preference memory
  • refund policy matching the policy memory

And both have higher importance and have not expired.

What Else Should Be Added in Engineering Practice?​

Privacy and sensitive information handling​

Before writing to long-term memory, you usually need to do:

  • PII anonymization
  • Compliance field filtering

Storage backends and indexing​

The example uses in-memory structures. Real systems often connect to:

  • KV / document stores
  • Vector databases
  • Relational databases

Monitoring metrics​

It is recommended to observe at least:

  • Memory hit rate
  • Expired cleanup rate
  • Average number of retrieved items
  • False retrieval rate

Without metrics, a memory system can easily become more and more of a black box with every change.

Most Common Misconceptions​

Misconception 1: More memory means smarter​

More memory can also mean more noise. The key is the proportion of effective memory, not the total amount.

Misconception 2: Only write, but never clean up​

This leads to the accumulation of retrieval noise over time, and performance may actually get worse later.

Misconception 3: Only do semantic retrieval, but no policy layer​

Memory engineering is always a combination of "retrieval + policy", not something a single vector search can solve completely.

Summary​

The most important thing in this section is not to memorize a few more "memory type" terms, but to build an engineering judgment:

Whether a memory system is usable depends on whether the write, retrieval, and lifecycle policies form a closed loop, not on whether you have connected a storage component.

Once you get this loop running, the memory system can truly move from concept to stable capability.

Exercises​

  1. Add a "source credibility" field to the example and include it in the retrieval score.
  2. Set ttl_steps shorter or longer and observe how the retrieval results change.
  3. Design a memory item that "never expires but has low importance" and see whether it pollutes the results.
  4. How would you set different write policies for "user preferences" and "temporary debug information"?
