9.7.7 Practice: Multi-Agent Collaboration System

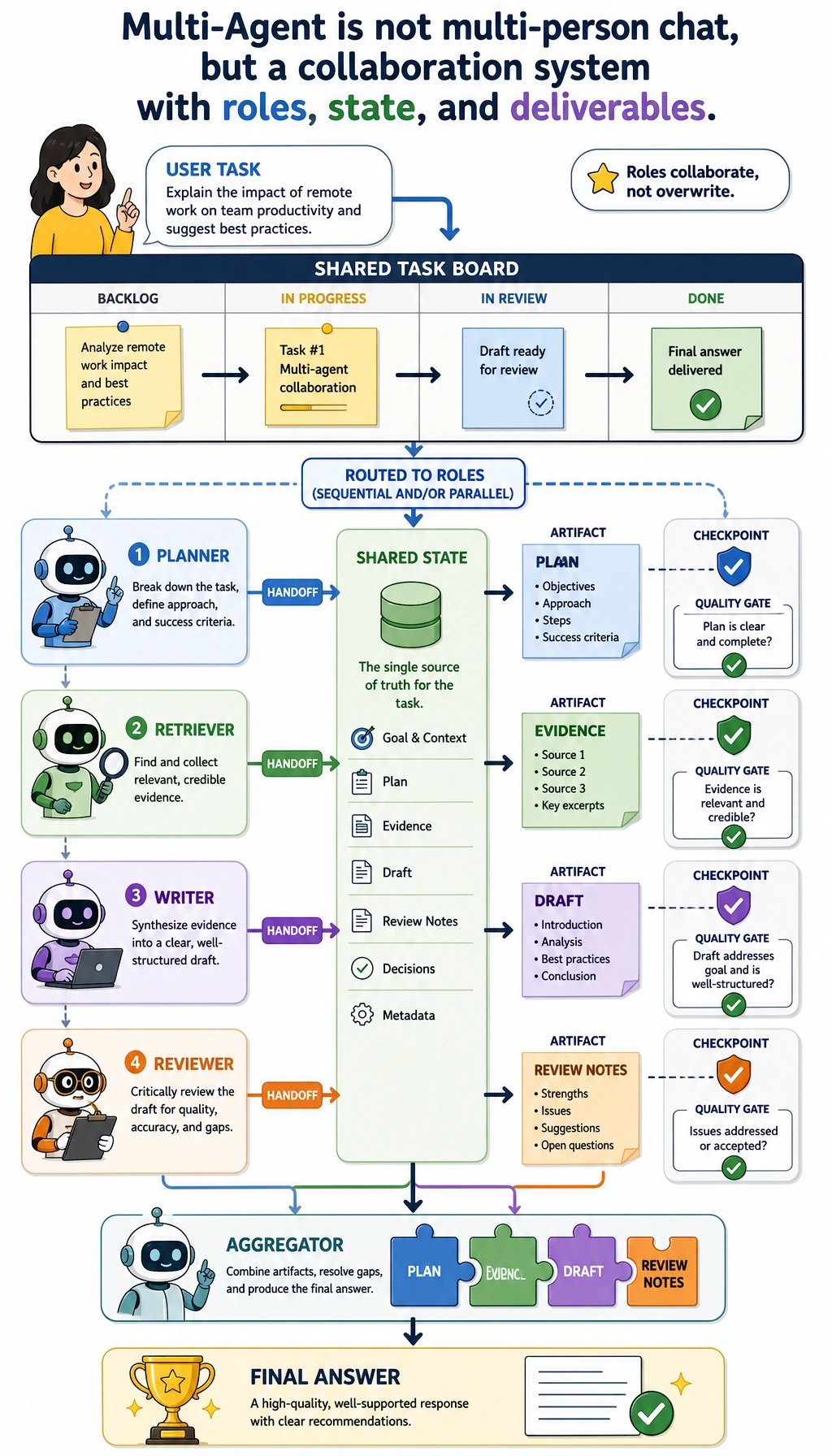

Multi-Agent collaboration practice run map

Section Overview

This section is the closing project for this chapter. You have already learned:

  • Architecture patterns
  • Communication
  • Task allocation
  • Collaboration patterns
  • Challenges and solutions

What we are going to do now is put all of these together and build a minimal but complete multi-Agent system.

Learning Objectives​

  • Build a minimal multi-Agent collaboration loop
  • Learn how to let planner, retriever, writer, and reviewer each do their own job
  • Understand how task state flows among multiple roles
  • Understand what this project truly adds compared with a single-Agent system

First, Define the Project Goal​

We will build a minimal research-style multi-Agent system:

User input:

"Please help me summarize the key conditions of the refund policy."

Internal system roles:

  • Planner: break down the task
  • Retriever: find information
  • Writer: write the summary
  • Reviewer: check the result

This task is a good fit because it can naturally be split into parts, and each role has a very clear responsibility.

Prepare a Knowledge Base​

knowledge_base = {
    "refund policy": "You can apply for a refund within 7 days after purchase, provided your learning progress is below 20%.",
    "certificate policy": "You can receive a completion certificate after finishing all required projects and passing the test.",
    "learning sequence": "It is recommended to learn Python, data analysis, and machine learning first, then move on to deep learning and large models."
}

print(knowledge_base)

Expected output:

{'refund policy': 'You can apply for a refund within 7 days after purchase, provided your learning progress is below 20%.', 'certificate policy': 'You can receive a completion certificate after finishing all required projects and passing the test.', 'learning sequence': 'It is recommended to learn Python, data analysis, and machine learning first, then move on to deep learning and large models.'}

This is the minimal knowledge source that the system will operate on.

Define Four Agents​

Planner​

def planner_agent(user_query):
    if "refund" in user_query:
        return ["retrieve refund policy", "organize key conditions", "write summary", "review output"]
    return ["retrieve related materials", "write summary", "review output"]

Retriever​

def retriever_agent(task):
    if "refund policy" in task:
        return knowledge_base["refund policy"]
    return "No materials found"

Writer​

def writer_agent(evidence):
    return f"Summary: {evidence}"

Reviewer​

def reviewer_agent(draft):
    if "7 days" in draft and "20%" in draft:
        return {"approved": True, "comment": "Key information is complete"}
    return {"approved": False, "comment": "Missing key conditions"}

Connect Them Together​

A Minimal Multi-Agent Collaboration Flow​

Run this in the same Python file or interpreter session after the knowledge base and four Agent functions above.

def multi_agent_system(user_query):
    state = {
        "query": user_query,
        "plan": [],
        "evidence": None,
        "draft": None,
        "review": None
    }

    # 1. Planning
    state["plan"] = planner_agent(user_query)

    # 2. Retrieval
    state["evidence"] = retriever_agent(state["plan"][0])

    # 3. Writing
    state["draft"] = writer_agent(state["evidence"])

    # 4. Review
    state["review"] = reviewer_agent(state["draft"])

    return state

result = multi_agent_system("Please help me summarize the key conditions of the refund policy.")
for k, v in result.items():
    print(k, "->", v)

Expected output:

query -> Please help me summarize the key conditions of the refund policy.
plan -> ['retrieve refund policy', 'organize key conditions', 'write summary', 'review output']
evidence -> You can apply for a refund within 7 days after purchase, provided your learning progress is below 20%.
draft -> Summary: You can apply for a refund within 7 days after purchase, provided your learning progress is below 20%.
review -> {'approved': True, 'comment': 'Key information is complete'}

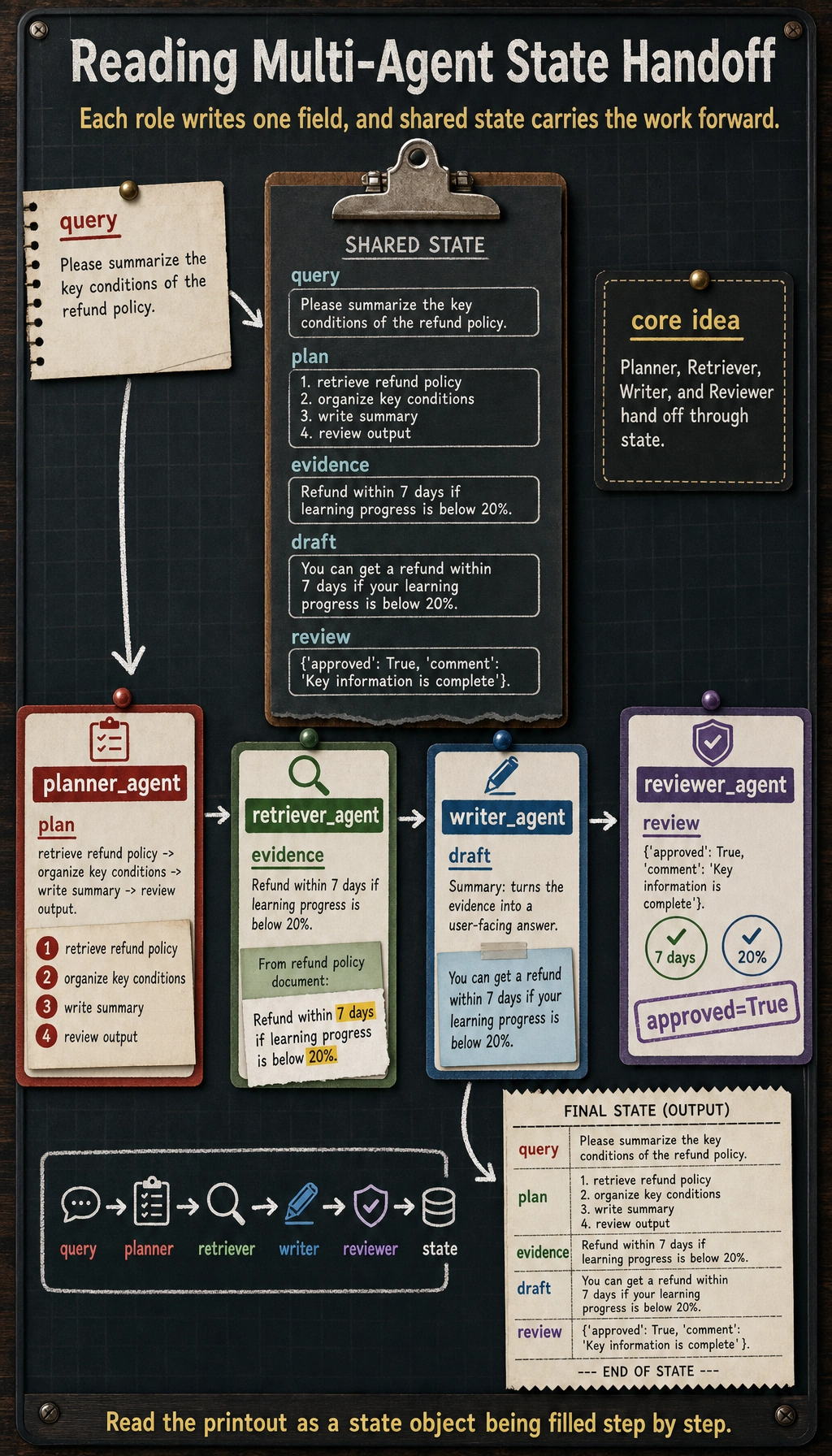

Multi-Agent state handoff result map

What Does This Code Already Show?​

It already shows that:

  • Multi-Agent is not just multiple functions
  • The key is state transition
  • Each role is only responsible for its own part

This is a true minimal multi-Agent system.

Make the System More Like a Real Workflow​

What If the Reviewer Does Not Approve?​

In a real system, if the review does not pass, the process usually should not end immediately. A more reasonable approach is:

  • Send the comment back to the writer
  • Revise the output again

A Small Example with Revision​

Continue in the same file or session so multi_agent_system and the Agent functions are already defined.

def reviser_agent(draft, review):
    if review["approved"]:
        return draft
    return draft + " Additional note: the refund also requires learning progress to be below 20%."

state = multi_agent_system("Please help me summarize the key conditions of the refund policy.")
final_output = reviser_agent(state["draft"], state["review"])

print("draft :", state["draft"])
print("review:", state["review"])
print("final :", final_output)

Expected output:

draft : Summary: You can apply for a refund within 7 days after purchase, provided your learning progress is below 20%.
review: {'approved': True, 'comment': 'Key information is complete'}
final : Summary: You can apply for a refund within 7 days after purchase, provided your learning progress is below 20%.

This step is very important because it shows:

The value of a multi-Agent system is not only division of labor, but also the ability for roles to form an iterative closed loop.

Add Clearer Task Logs​

Why Must a Project Have Traces?​

If the system gives the wrong answer, at least you need to know:

  • How the planner broke down the task
  • What the retriever found
  • What the writer wrote
  • Why the reviewer did not catch the problem

A Minimal Trace Version​

Continue in the same file or session so the four Agent functions are already defined.

def traced_multi_agent_system(user_query):
    trace = []

    plan = planner_agent(user_query)
    trace.append({"agent": "planner", "output": plan})

    evidence = retriever_agent(plan[0])
    trace.append({"agent": "retriever", "output": evidence})

    draft = writer_agent(evidence)
    trace.append({"agent": "writer", "output": draft})

    review = reviewer_agent(draft)
    trace.append({"agent": "reviewer", "output": review})

    return trace

for step in traced_multi_agent_system("Please help me summarize the key conditions of the refund policy."):
    print(step)

Expected output:

{'agent': 'planner', 'output': ['retrieve refund policy', 'organize key conditions', 'write summary', 'review output']}
{'agent': 'retriever', 'output': 'You can apply for a refund within 7 days after purchase, provided your learning progress is below 20%.'}
{'agent': 'writer', 'output': 'Summary: You can apply for a refund within 7 days after purchase, provided your learning progress is below 20%.'}
{'agent': 'reviewer', 'output': {'approved': True, 'comment': 'Key information is complete'}}

This trace is the important foundation for debugging and evaluating the system later.

Why Is This System More Worth Learning Than a Single Agent?​

Because It Breaks the Problem Apart​

A single Agent often does everything in one go:

  • Understand the task
  • Retrieve information
  • Summarize
  • Self-check

A multi-Agent system breaks these actions apart, which makes it easier for you to:

  • Observe each layer
  • Replace one layer
  • Find out where an error happened

But It Is Also More Expensive and More Complex​

So the real engineering judgment is not:

Multi-Agent is always more advanced

Instead, it is:

Is this task worth paying extra complexity for better decomposability and controllability?

How Can This Project Be Extended?​

You can keep adding:

  1. A more realistic retriever
  2. Multi-task routing
  3. Asynchronous communication
  4. Conflict resolution
  5. Retry on failure

If you keep expanding it, it will gradually become closer to a real multi-Agent product system.

Common Mistakes Beginners Make​

Writing All Roles in Almost the Same Way​

Then the result is just "multiple Agents with different names for the same thing."

No Shared State or Trace​

Once something goes wrong, it becomes very hard to debug.

The Project Looks Busy, but Each Role Does Not Actually Have a Real Division of Labor​

This is one of the most common problems in many multi-Agent demos.

Summary​

The most important thing in this section is not to write four functions, but to understand:

The core of a multi-Agent project is to let each role take different responsibilities around state transitions, and ultimately converge into an explainable and iterative workflow.

That is where multi-Agent truly becomes more valuable than a single Agent.

Exercises​

  1. Add a fact_checker_agent to this system to specifically verify numeric conditions.
  2. Make planner_agent produce different plans for "certificate policy" as well.
  3. Think about this: if the reviewer keeps rejecting the output, how should the system limit the number of revision rounds?
  4. Explain in your own words: why is the real importance of a multi-Agent project "state transition" rather than "number of roles"?
