7.3.2 Transformer Architecture Review and Deep Dive

Learning Goals

Understand what each module inside a Transformer block is responsible for
Understand how token embedding, positional information, self-attention, and FFN are connected
Build intuition for “how data flows” through a runnable minimal block example
Understand why residual connections and normalization are important for deep networks

Why Did Transformer Become the Backbone of Large Models?

It solves the problem of “who should look at whom” in a sequence

Language is naturally a sequence. When a model processes a sentence, it needs to know:

Which previous words are related to the current word
Which positions are more important
How to preserve long-range dependencies

The RNN idea is to read sequentially, the CNN idea is local convolution, and the Transformer idea is:

Let each position actively “look at” other positions and assign them weights.

That is the core of self-attention.

The real strength of Transformer is not just attention

Many people simplify Transformer as:

A network with attention

But what really makes it suitable for large-scale training is a whole set of components working together:

token embedding
positional representation
multi-head self-attention
residual connections
LayerNorm
feed-forward network
stackable block structure

This combination allows it to model sequence relationships, scale deep, scale large, and parallelize well.

An analogy: each block is like one round of “discussion + organization”

You can think of a Transformer block as a meeting:

Self-attention is like “each token listening to what other tokens are saying”
The feed-forward network is like “after absorbing the context, each token does one more round of internal processing on its own”
Residual connection is like “keep the original message; don’t let the new processing completely overwrite it”

One block processes one round, and many blocks stacked together are like a group repeatedly discussing and organizing information.

What Is Inside a Transformer Block?

The input is first turned into vectors

What the model sees is not text itself, but token ids. These token ids are looked up in the embedding table and turned into vectors.

For example:

I -> [0.2, -0.1, 0.8, ...]
like -> [0.7, 0.3, -0.2, ...]

This step does:

Convert discrete symbols into representations in a continuous space.

Then positional information is added

Attention itself only cares about relationships inside a set, and it does not know which position a token originally occupied.

So we must tell the model:

the 1st token
the 2nd token
the 3rd token

This positional information can be injected through:

sinusoidal positional encoding
learnable position vectors
relative position methods such as RoPE

Self-attention handles “cross-token communication”

In self-attention, each token generates three representations:

Query: what I want to find
Key: what I can offer
Value: what you get if you attend to me

Then each token does two steps:

Use its own Query and other tokens’ Key to compute similarity
Use those similarities to weight other tokens’ Value

The result is:

a new representation that combines context

The feed-forward network handles “per-token deep processing”

When beginners learn Transformer, they often treat attention as the only core part. But in fact, FFN is also very important.

Its characteristics are:

Each token passes through a small MLP independently
No cross-token communication
But it enhances nonlinear expressive power

You can understand it as:

Attention exchanges information, FFN digests information.

Why do residuals and normalization keep appearing?

Because deep networks are easy to train unstably. The role of residual connections and LayerNorm can be roughly remembered as:

Residual: preserve old information, so new information becomes an “incremental update”
LayerNorm: bring each layer’s output back into a more stable numeric range

Without them, deep Transformers can become hard to train very easily.

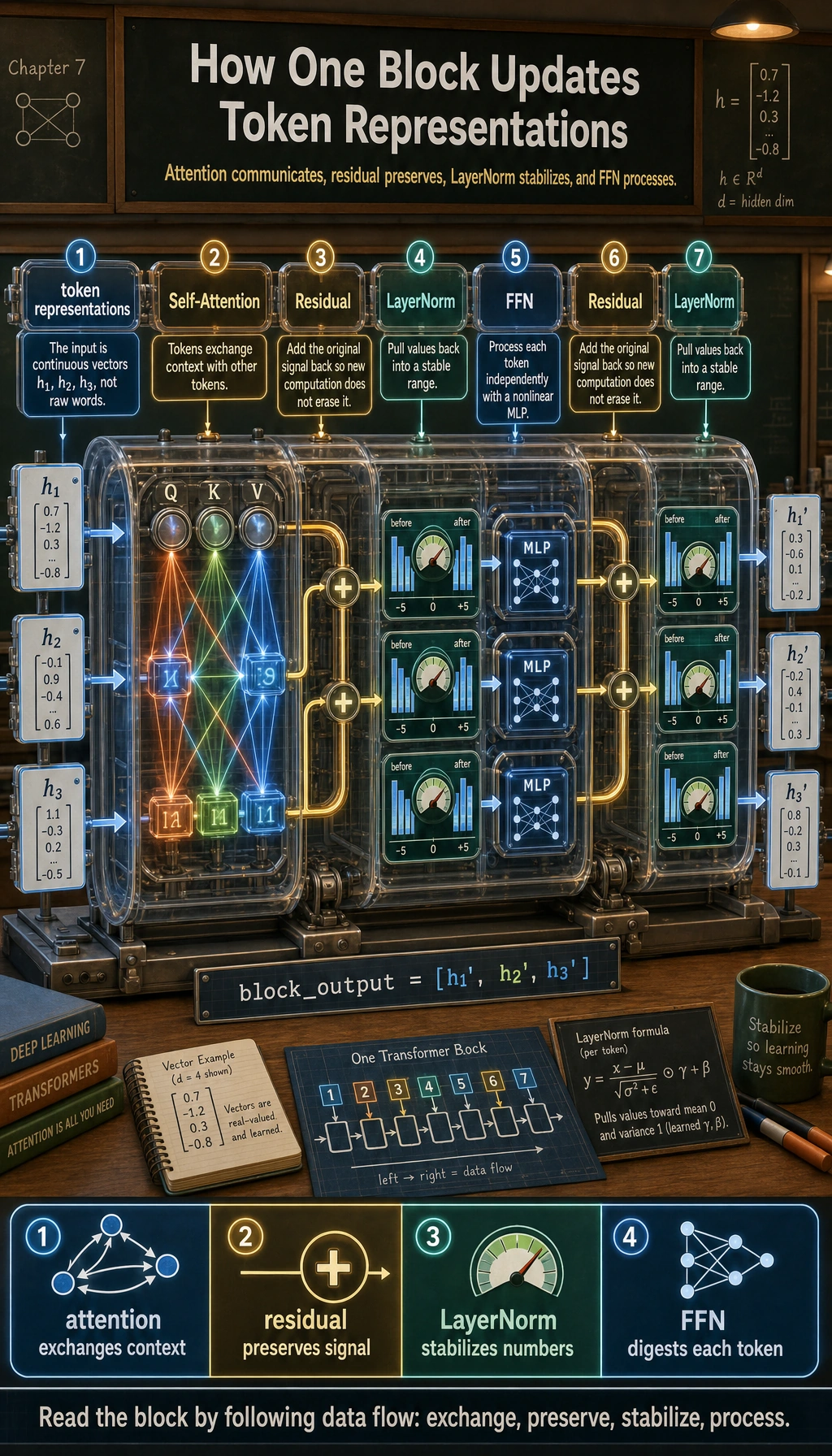

Transformer Block Data Flow Breakdown

Let’s Run a Real Minimal Transformer Block First

The code below uses pure Python to do one thing:

Take three token vectors as input
Compute single-head self-attention
Apply a residual connection
Then pass through a small feed-forward network

It is not a complete production implementation, but each step corresponds to the core structure of a real block.

from math import exp, sqrt

tokens = [
    [1.0, 0.0, 1.0],
    [0.0, 1.0, 1.0],
    [1.0, 1.0, 0.0],
]

W_q = [
    [1.0, 0.0],
    [0.5, 1.0],
    [0.0, 1.0],
]
W_k = [
    [1.0, 0.5],
    [0.0, 1.0],
    [1.0, 0.0],
]
W_v = [
    [1.0, 0.0, 0.5],
    [0.0, 1.0, 0.5],
]
W1 = [
    [1.0, -0.5],
    [0.5, 1.0],
    [1.0, 0.5],
]
W2 = [
    [0.5, 1.0, 0.0],
    [1.0, 0.0, 0.5],
]


def matmul_vec(vec, matrix):
    return [
        sum(vec[i] * matrix[i][j] for i in range(len(vec)))
        for j in range(len(matrix[0]))
    ]


def dot(a, b):
    return sum(x * y for x, y in zip(a, b))


def softmax(values):
    m = max(values)
    exps = [exp(v - m) for v in values]
    total = sum(exps)
    return [x / total for x in exps]


def add(a, b):
    return [x + y for x, y in zip(a, b)]


def relu(vec):
    return [max(0.0, x) for x in vec]


Q = [matmul_vec(token, W_q) for token in tokens]
K = [matmul_vec(token, W_k) for token in tokens]
V_in = [[1.0, 0.0], [0.0, 1.0], [1.0, 1.0]]
V = [matmul_vec(v, W_v) for v in V_in]

scale = sqrt(len(Q[0]))
scores = []
for i, q in enumerate(Q):
    row = []
    for j, k in enumerate(K):
        row.append(dot(q, k) / scale if j <= i else -10**9)
    scores.append(row)

weights = [softmax(row) for row in scores]

contexts = []
for row in weights:
    context = [0.0, 0.0, 0.0]
    for w, v in zip(row, V):
        context = [c + w * x for c, x in zip(context, v)]
    contexts.append(context)

after_attention = [add(token, context) for token, context in zip(tokens, contexts)]
ffn_hidden = [relu(matmul_vec(vec, W1)) for vec in after_attention]
ffn_output = [matmul_vec(vec, W2) for vec in ffn_hidden]
block_output = [add(x, y) for x, y in zip(after_attention, ffn_output)]

print("attention weights:")
for row in weights:
    print([round(x, 3) for x in row])

print("\nblock output:")
for row in block_output:
    print([round(x, 3) for x in row])

Expected output:

attention weights:
[1.0, 0.0, 0.0]
[0.413, 0.587, 0.0]
[0.456, 0.225, 0.32]

block output:
[3.75, 3.5, 1.5]
[3.897, 4.294, 2.566]
[4.366, 4.752, 1.153]

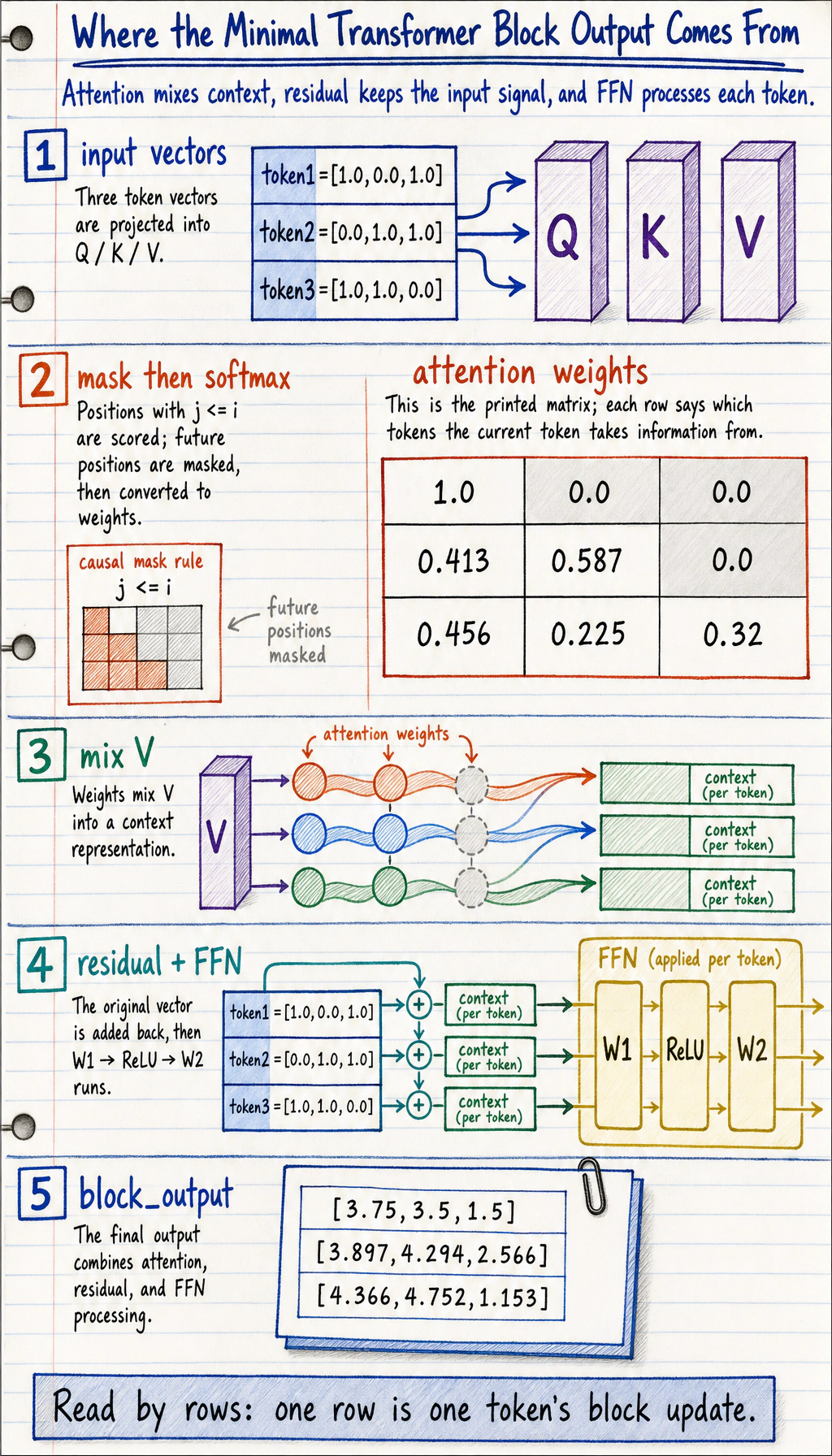

Minimal Transformer block run result map

When reading this code, focus on four places first

There are only four key parts:

Generation of Q / K / V
Computation of scores
Weighted sum after softmax
Residual connection + FFN

If you understand these four parts, your understanding of the Transformer block has already moved beyond “just memorizing the diagram.”

Why do we add a causal mask here?

You will see this line:

row.append(dot(q, k) / scale if j <= i else -10**9)

It means:

The current token can only see itself and previous tokens
It cannot peek into the future

This is exactly the key constraint during training for decoder-only models like GPT.

If you remove j <= i, it becomes more like bidirectional attention in an encoder.

Why does attention still need an FFN afterward?

Because attention is only for “aggregating context.” It tells the current token:

Who should I pay attention to?

But it is not good at sufficiently nonlinear transformation. The FFN’s job is:

Process the context-fused representation once more

So they have different responsibilities, and both are necessary.

Putting the Block Back Into the Whole Architecture

Stacking multiple layers means abstraction layer by layer

The first layer of attention may mostly see:

lexical relationships
nearby patterns

Higher layers may gradually form:

syntactic relationships
semantic roles
long-range dependencies
task-related features

That is why Transformer is not just “one layer of attention,” but many block layers stacked together.

The main difference between Encoder and Decoder lies in mask and interaction style

If you only look at the block, they are essentially very similar. The main differences are:

encoder: usually bidirectional self-attention
decoder: usually causal mask
encoder-decoder: the decoder also has an extra cross-attention layer

So many architectural differences can eventually be traced back to:

who can see whom

Why did GPT keep only the decoder?

Because the most important structural constraint for generation tasks is:

predict the future based only on the past

decoder-only fits this goal better, and the structure is more direct. This is one of the reasons why the GPT series could keep scaling up.

Engineering Details That Are Easy to Overlook

Attention is not free

Each token has to compare with all other tokens, and as the sequence gets longer, the cost rises quickly.

That is why later on people introduced:

efficient attention
KV cache
GQA / MQA
FlashAttention

and other improvements.

The block structure looks repetitive, but training is not easy

When the number of layers and hidden size increases, you will quickly run into:

memory pressure
gradient stability
trade-offs between throughput and latency

So the reason Transformer became the backbone of large models is not only because the structure is elegant, but also because many engineering details gradually matured.

Once you understand the block, many later chapters become much easier

Later when you learn:

architectural variants
efficient attention
pretraining methods
fine-tuning

they are all essentially modifications or applications built around this block.

Common Misunderstandings

Misunderstanding 1: Transformer = attention

Not complete. Transformer is a block design, not an isolated formula.

Misunderstanding 2: FFN is just a supporting role

Wrong. It handles very important nonlinear feature transformation.

Misunderstanding 3: Knowing QKV means you understand Transformer

True understanding also includes:

why residuals matter
why masks determine behavior
why stacking multiple layers can form abstractions

Evidence to Keep

Keep this page’s proof of learning as a small evidence card:

Input Contract: token embeddings plus position information
Attention Role: mix information across positions
Ffn Role: transform each position independently
Stability Parts: residual plus norm
Output Bridge: hidden state becomes vocabulary logits

Summary

The most important thing in this lesson is not to memorize the diagram again, but to connect the data flow of a Transformer block:

Token vectors first communicate with context through attention, then undergo deep processing in the feed-forward network, and rely on residual connections and normalization to maintain training stability across stacked layers.

Once this chain is clear in your mind, many seemingly “very complex” large-model structures are actually just variations built around this block.

Exercises

Change j <= i in the example to always allow attention, and observe how the attention weights change.
Try removing the residual connection and see whether the relationship between block_output and the original input is still stable.
Explain in your own words: why do we say attention exchanges information while FFN digests information?
Think about this: if you stack this block 48 layers deep, what engineering problem would worry you the most?

Reference implementation and walkthrough

Allowing all attention makes each position see later tokens. The attention matrix becomes less triangular, which is useful for inspection but breaks the autoregressive rule used by decoder-only generation.
Without the residual connection, the block has a harder time preserving the original signal. Deep stacks become more fragile because every layer must relearn both transformation and identity flow.
Attention mixes information across token positions. The FFN then applies position-wise nonlinear processing, so it is closer to digesting the mixed representation at each position.
The biggest worries are usually training stability, memory pressure, gradient flow, and throughput. LayerNorm placement, residual paths, activation memory, and checkpointing become practical engineering issues, not cosmetic details.
