8.5.6 Hands-on: Full Chapter 8 RAG App Workshop

This workshop turns the whole Chapter 8 thread into one runnable mini project. You will not start with LangChain, a vector database, or a cloud API. First you will build a transparent RAG loop with plain Python, so every beginner can see what happens at each step.

The goal is not to build the most powerful system in one page. The goal is to build a small system that you can run, inspect, break, repair, and later replace piece by piece with real embeddings, a vector database, a model API, and deployment code.

What You Will Build

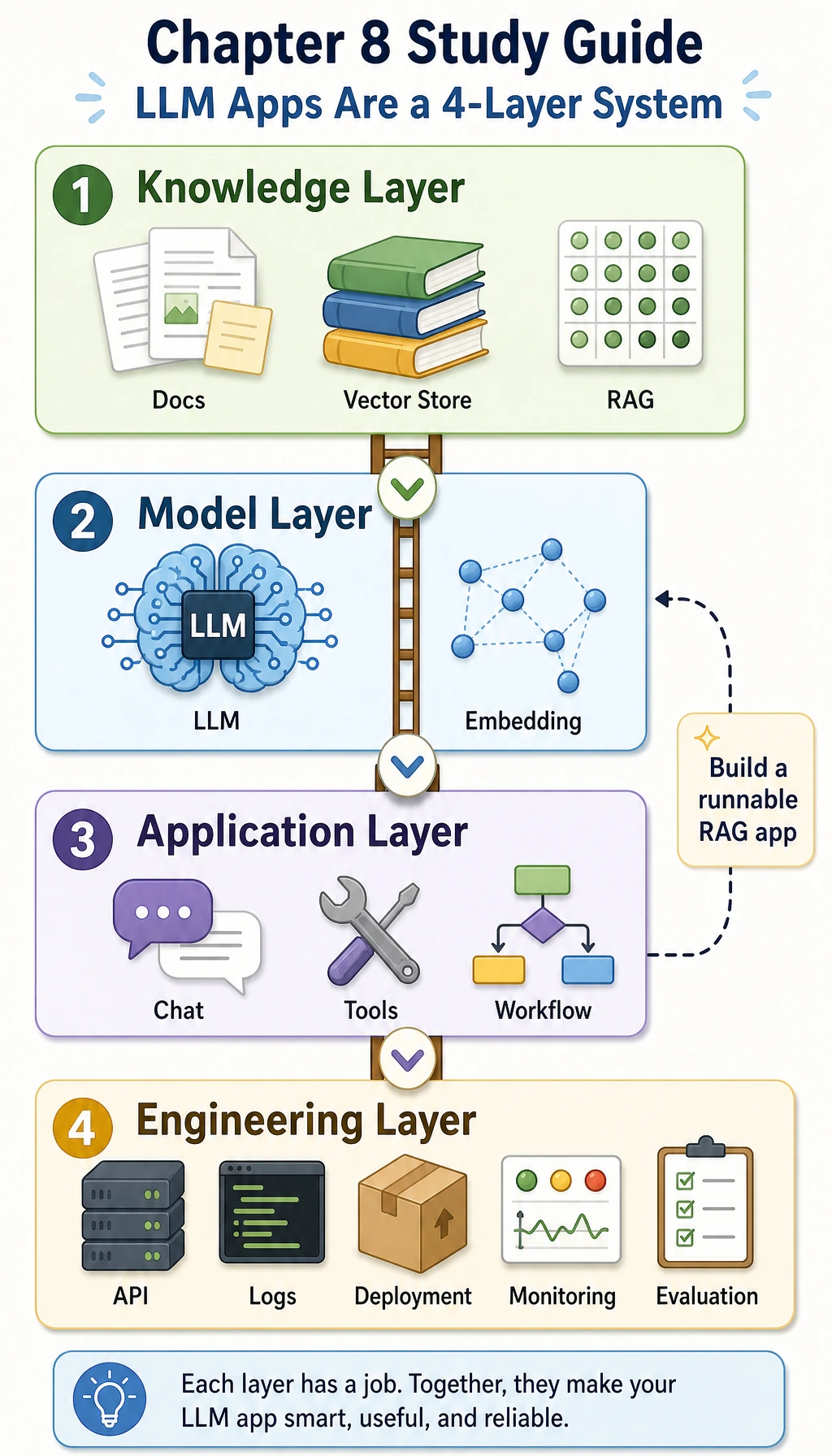

Chapter 8 four-layer learning map

You will build a tiny knowledge base assistant with these abilities:

Ability	What you will implement	Why it matters
Document ingestion	Store four small documents in structured records	RAG starts with controlled source material
Chunking	Split each document into searchable chunks	Retrieval works on chunks, not whole libraries
Metadata	Keep `source`, `roles`, `title`, and `chunk_id`	Citations and permission checks need metadata
Retrieval	Score chunks by keyword overlap	Beginners can inspect why a chunk was selected
Permission filtering	Hide employee-only chunks from public users	Enterprise RAG must not leak private knowledge
Answer generation	Answer only from retrieved evidence	The assistant should not invent unsupported facts
No-answer handling	Return a clear status when evidence is missing	Good RAG says “I do not know” when needed
Evaluation	Run three fixed test questions	You need repeatable checks before optimizing

Step 0: Understand the RAG Loop Before Coding

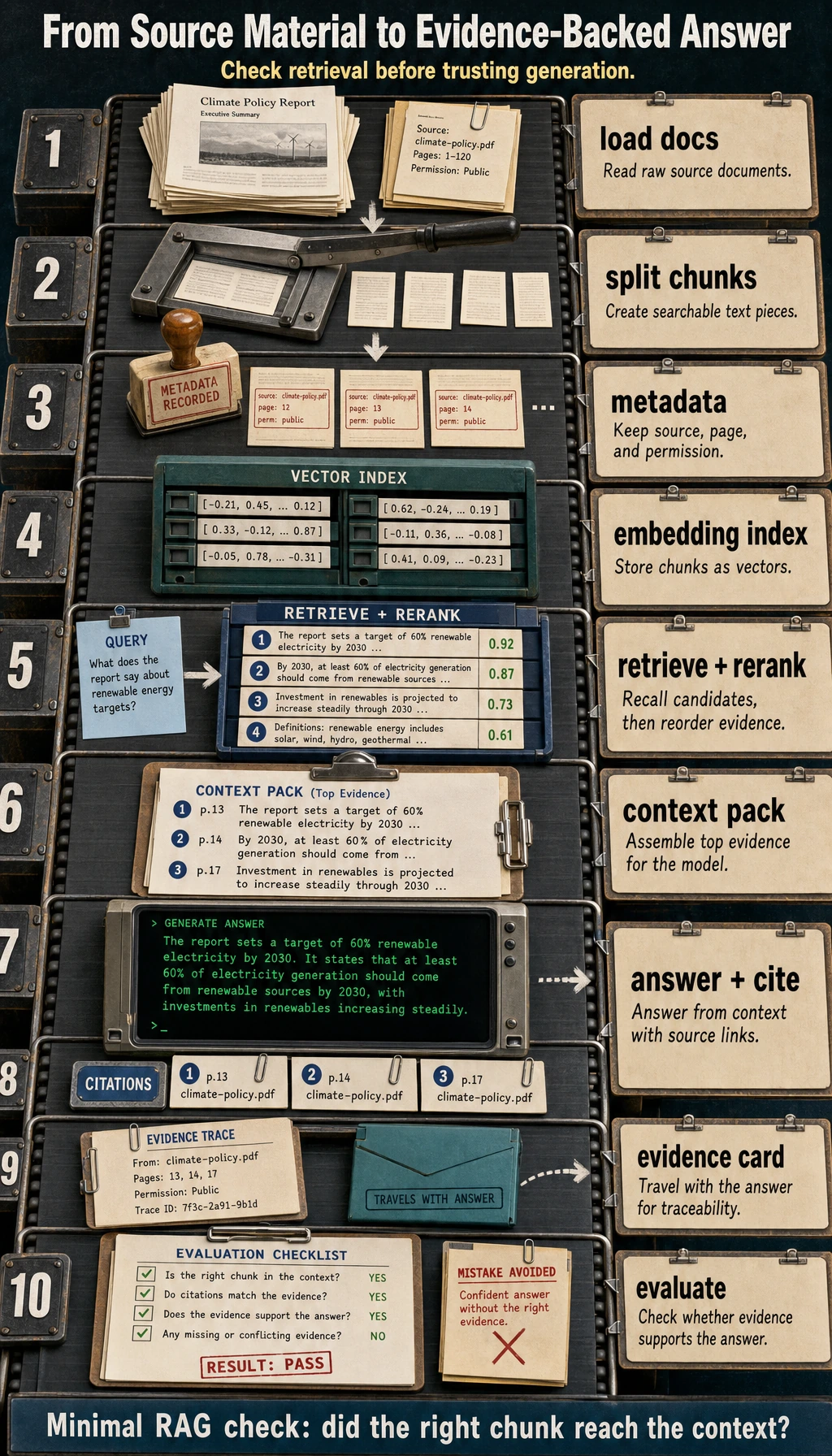

RAG data-to-answer pipeline

RAG means Retrieval-Augmented Generation. In plain language:

The user asks a question.
The system retrieves related document chunks.
The system gives those chunks to the model.
The model answers based on the chunks.
The final answer shows citations so people can check the source.

The most important beginner idea is this: if the final answer is wrong, do not blame the model first. Print the retrieved chunks first. If retrieval is wrong, generation cannot save the result reliably.

Step 1: Create a Tiny Project Folder

Open a terminal and run:

mkdir ch08_rag_workshop
cd ch08_rag_workshop
touch rag_app_workshop.py

You only need Python 3.10 or newer. This first script uses only the Python standard library.

Step 2: Copy the Full Offline RAG Script

Document parsing and format routing map

In a real project, documents may come from Markdown, PDF, Word, PPT, HTML, or databases. In this first workshop, we use four in-memory documents so the flow is easy to see. Each document already has metadata, because later citations, logs, permission checks, and evaluation all depend on it.

Before copying the full script, use the next diagram to follow only chunk_documents(). When you read the code, move your eyes from DOCUMENTS to sentences, then to each chunk record. The key habit is that source and roles travel with every chunk; retrieval and permission checks are safer when metadata is not reconstructed later.

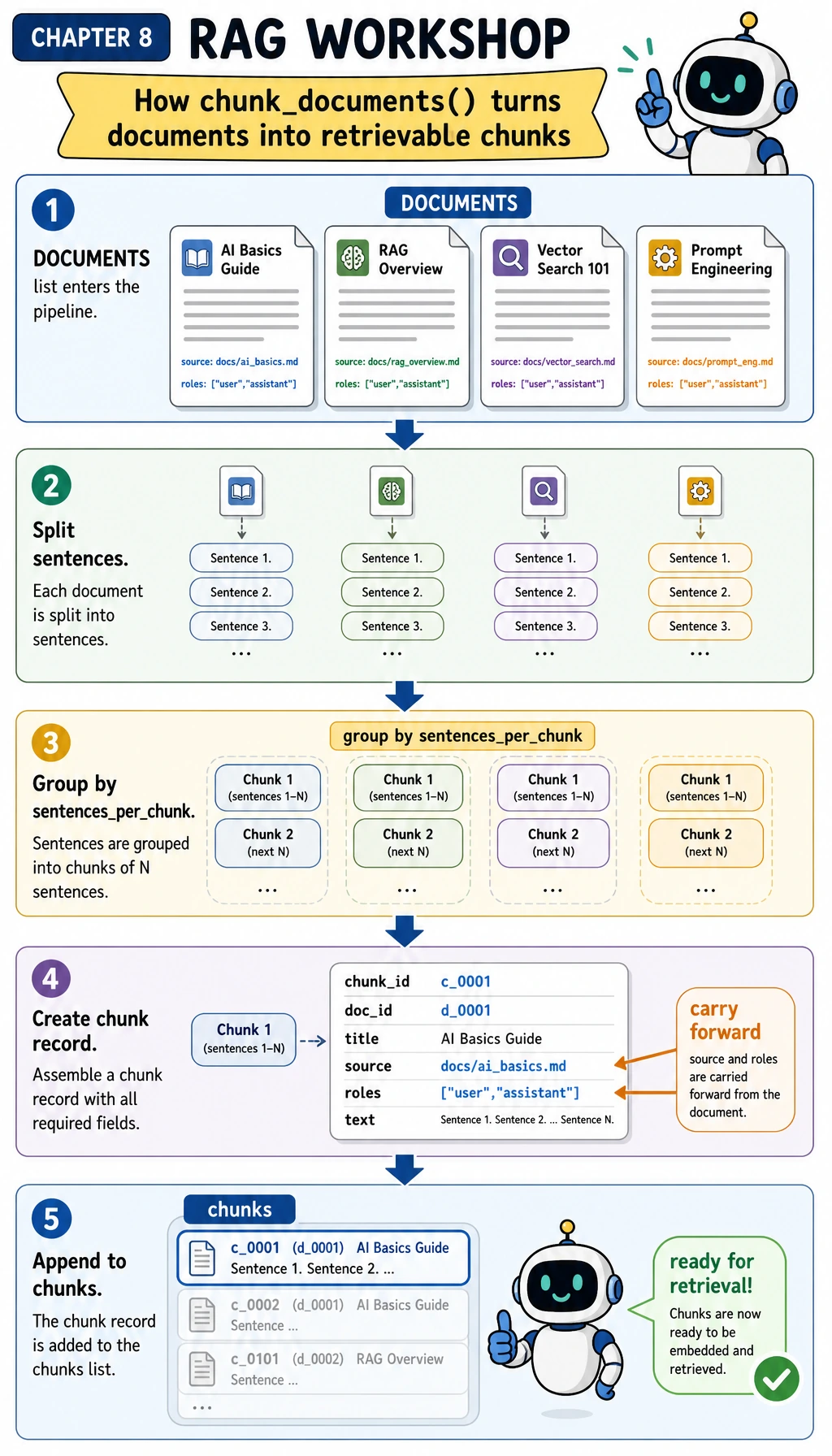

RAG workshop chunk_documents execution flow map

Copy this into rag_app_workshop.py:

import re
from collections import Counter


DOCUMENTS = [
    {
        "doc_id": "refund-policy",
        "title": "Course refund policy",
        "source": "handbook.md#refund",
        "roles": ["public"],
        "text": (
            "Refund requests are accepted within 14 days of enrollment when the learner has completed less than 20 percent of the course. "
            "Approved refunds are returned to the original payment method within 5 business days."
        ),
    },
    {
        "doc_id": "api-key-setup",
        "title": "API key setup guide",
        "source": "setup.md#keys",
        "roles": ["public"],
        "text": (
            "Store the API key in an environment variable named OPENAI_API_KEY before running the application. "
            "Never paste production keys into Markdown files, browser screenshots, or public issue trackers."
        ),
    },
    {
        "doc_id": "office-hours",
        "title": "Course support hours",
        "source": "support.md#hours",
        "roles": ["public"],
        "text": (
            "Live office hours happen every Wednesday at 19:00 Taipei time. "
            "Learners should bring the question, the command they ran, and the exact error output."
        ),
    },
    {
        "doc_id": "private-roadmap",
        "title": "Private product roadmap",
        "source": "internal.md#roadmap",
        "roles": ["employee"],
        "text": (
            "The beta roadmap targets a private release in Q4 after security review is complete. "
            "Only employees may view roadmap dates before the public announcement."
        ),
    },
]


STOPWORDS = {
    "a", "an", "and", "are", "as", "at", "be", "before", "by", "do", "does",
    "for", "from", "has", "have", "how", "in", "is", "it", "of", "on", "or",
    "should", "the", "they", "to", "what", "when", "where", "which", "with",
}


def normalize(text):
    tokens = []
    for token in re.findall(r"[a-z0-9]+", text.lower()):
        if len(token) > 3 and token.endswith("s"):
            token = token[:-1]
        if token not in STOPWORDS:
            tokens.append(token)
    return tokens


def chunk_documents(documents, sentences_per_chunk=2):
    chunks = []
    for doc in documents:
        sentences = [s.strip() for s in re.split(r"(?<=[.!?])\s+", doc["text"]) if s.strip()]
        for start in range(0, len(sentences), sentences_per_chunk):
            chunk_text = " ".join(sentences[start : start + sentences_per_chunk])
            chunks.append(
                {
                    "chunk_id": f"{doc['doc_id']}#{start // sentences_per_chunk + 1}",
                    "doc_id": doc["doc_id"],
                    "title": doc["title"],
                    "source": doc["source"],
                    "roles": doc["roles"],
                    "text": chunk_text,
                }
            )
    return chunks


def keyword_score(query, chunk):
    query_terms = set(normalize(query))
    chunk_terms = Counter(normalize(chunk["title"] + " " + chunk["text"]))
    return sum(chunk_terms[term] for term in query_terms)


def retrieve(query, chunks, role="public", top_k=2):
    allowed_hits = []
    blocked_hits = []
    for chunk in chunks:
        score = keyword_score(query, chunk)
        if score == 0:
            continue
        hit = {**chunk, "score": score}
        if "public" in chunk["roles"] or role in chunk["roles"]:
            allowed_hits.append(hit)
        else:
            blocked_hits.append(hit)
    allowed_hits.sort(key=lambda hit: (-hit["score"], hit["chunk_id"]))
    blocked_hits.sort(key=lambda hit: (-hit["score"], hit["chunk_id"]))
    return {"hits": allowed_hits[:top_k], "blocked": blocked_hits[:top_k]}


def build_answer(query, retrieval):
    hits = retrieval["hits"]
    if not hits:
        status = "blocked_by_permission" if retrieval["blocked"] else "no_evidence"
        return {
            "status": status,
            "answer": "I do not have enough permitted evidence to answer this question.",
            "citations": [],
        }
    top = hits[0]
    first_sentence = re.split(r"(?<=[.!?])\s+", top["text"])[0]
    return {
        "status": "answered",
        "answer": f"Based on {top['source']}: {first_sentence}",
        "citations": [top["source"]],
    }


def rag_answer(query, chunks, role="public"):
    retrieval = retrieve(query, chunks, role=role, top_k=2)
    answer = build_answer(query, retrieval)
    return {"query": query, "role": role, "retrieval": retrieval, **answer}


EVAL_CASES = [
    {
        "name": "refund_window",
        "question": "How many days do learners have for refunds?",
        "role": "public",
        "expected_status": "answered",
        "expected_source": "handbook.md#refund",
    },
    {
        "name": "api_key_setup",
        "question": "Where should I store the API key?",
        "role": "public",
        "expected_status": "answered",
        "expected_source": "setup.md#keys",
    },
    {
        "name": "private_block",
        "question": "What is the private beta roadmap for Q4?",
        "role": "public",
        "expected_status": "blocked_by_permission",
        "expected_source": None,
    },
]


def evaluate(chunks):
    rows = []
    passed = 0
    for case in EVAL_CASES:
        result = rag_answer(case["question"], chunks, role=case["role"])
        status_ok = result["status"] == case["expected_status"]
        citation_ok = case["expected_source"] is None or case["expected_source"] in result["citations"]
        ok = status_ok and citation_ok
        passed += int(ok)
        rows.append({"name": case["name"], "ok": ok, "status": result["status"], "citations": result["citations"]})
    return passed, rows


def main():
    chunks = chunk_documents(DOCUMENTS)

    print("STEP 1: parse and chunk documents")
    print(f"chunks: {len(chunks)}")
    print(f"first_chunk: {chunks[0]['chunk_id']} -> {chunks[0]['title']}")
    print()

    print("STEP 2: answer with citations")
    result = rag_answer("How many days do learners have for refunds?", chunks)
    print(f"question: {result['query']}")
    print(f"status: {result['status']}")
    print(f"answer: {result['answer']}")
    print(f"citations: {', '.join(result['citations'])}")
    print()

    print("STEP 3: permission and no-evidence checks")
    private_result = rag_answer("What is the private beta roadmap for Q4?", chunks, role="public")
    unknown_result = rag_answer("What is the cafeteria menu today?", chunks, role="public")
    print(f"private_question_as_public: {private_result['status']}")
    print(f"unknown_question: {unknown_result['status']}")
    print()

    print("STEP 4: mini evaluation")
    passed, rows = evaluate(chunks)
    for row in rows:
        mark = "PASS" if row["ok"] else "FAIL"
        citations = ", ".join(row["citations"]) if row["citations"] else "none"
        print(f"{row['name']}: {mark} ({row['status']}, {citations})")
    print(f"passed: {passed}/{len(rows)}")


if __name__ == "__main__":
    main()

Step 3: Run It and Compare the Output

Run:

python3 rag_app_workshop.py

Expected output:

STEP 1: parse and chunk documents
chunks: 4
first_chunk: refund-policy#1 -> Course refund policy

STEP 2: answer with citations
question: How many days do learners have for refunds?
status: answered
answer: Based on handbook.md#refund: Refund requests are accepted within 14 days of enrollment when the learner has completed less than 20 percent of the course.
citations: handbook.md#refund

STEP 3: permission and no-evidence checks
private_question_as_public: blocked_by_permission
unknown_question: no_evidence

STEP 4: mini evaluation
refund_window: PASS (answered, handbook.md#refund)
api_key_setup: PASS (answered, setup.md#keys)
private_block: PASS (blocked_by_permission, none)
passed: 3/3

If your output matches, you have already completed the minimum Chapter 8 loop: data enters, chunks are created, retrieval happens, permission filtering runs, an answer is produced with citation, and evaluation verifies the behavior.

Read the evaluation part with this diagram. evaluate() does not judge answer quality by feeling; it runs each item in EVAL_CASES, checks status, checks citations, then counts pass/fail. Notice that private_block passes even with no citation because the expected behavior is blocked_by_permission.

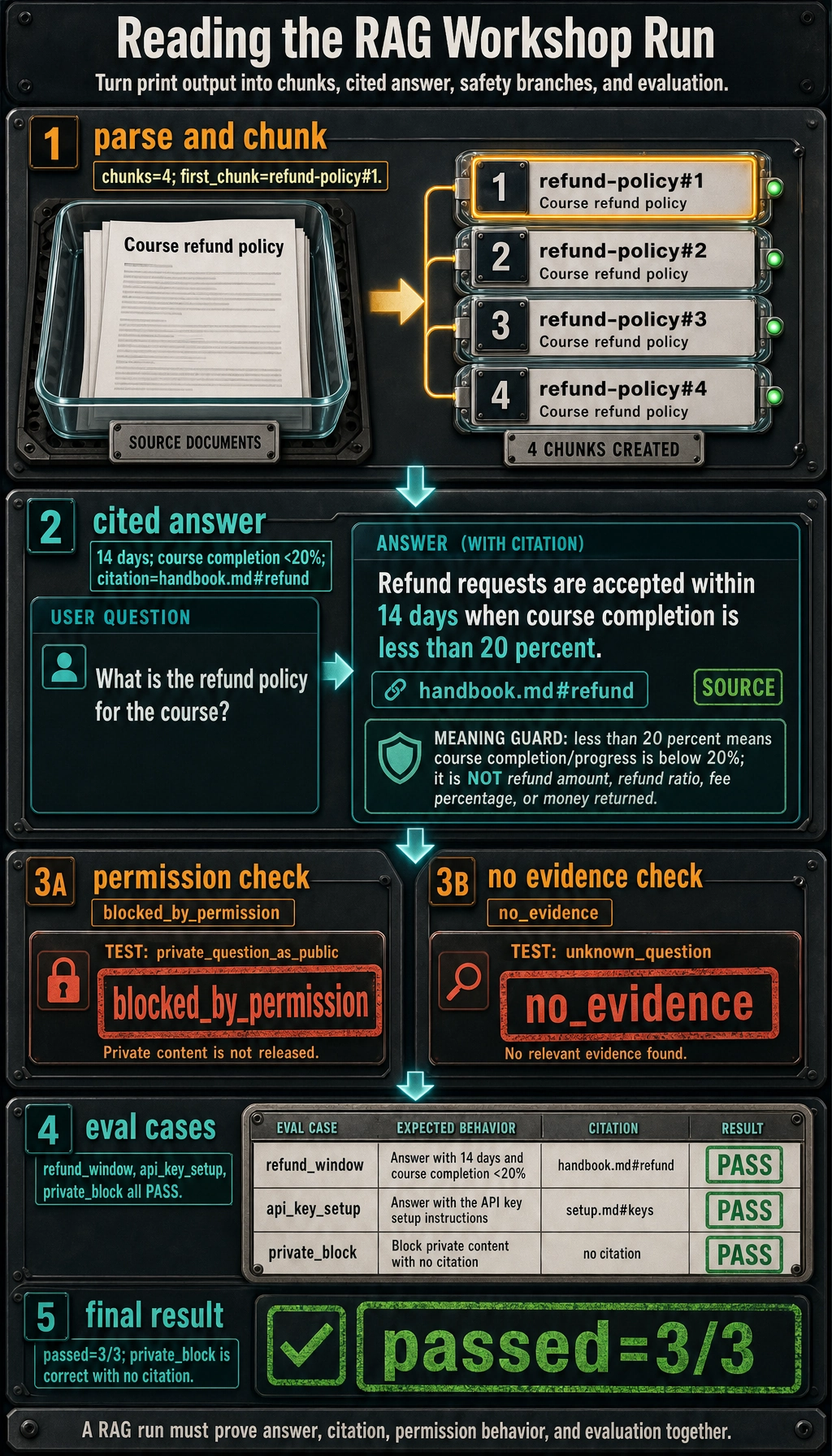

RAG workshop run evidence map

Step 4: Read the Code Like a Pipeline

RAG basics workflow map

Read the script in this order:

Code area	What to inspect	Beginner explanation
`DOCUMENTS`	`doc_id`, `source`, `roles`, `text`	This is your tiny knowledge base
`chunk_documents()`	How document text becomes chunk records	A chunk is the unit retrieved later
`normalize()`	How text becomes comparable tokens	Retrieval needs a shared matching form
`keyword_score()`	How a chunk gets a score	Higher score means more query terms matched
`retrieve()`	Allowed hits and blocked hits	Retrieval quality and permission safety are separate concerns
`build_answer()`	How no-answer and citations are handled	The system must avoid unsupported answers
`EVAL_CASES`	Fixed questions and expected behavior	Evaluation turns “looks okay” into a repeatable check

The current retrieval is deliberately simple. It is not a replacement for embeddings. It is a teaching tool that makes scoring visible. Later, when you replace keyword_score() with embeddings or hybrid search, the surrounding RAG structure can remain similar.

Step 5: Observe Permission and Citation Behavior

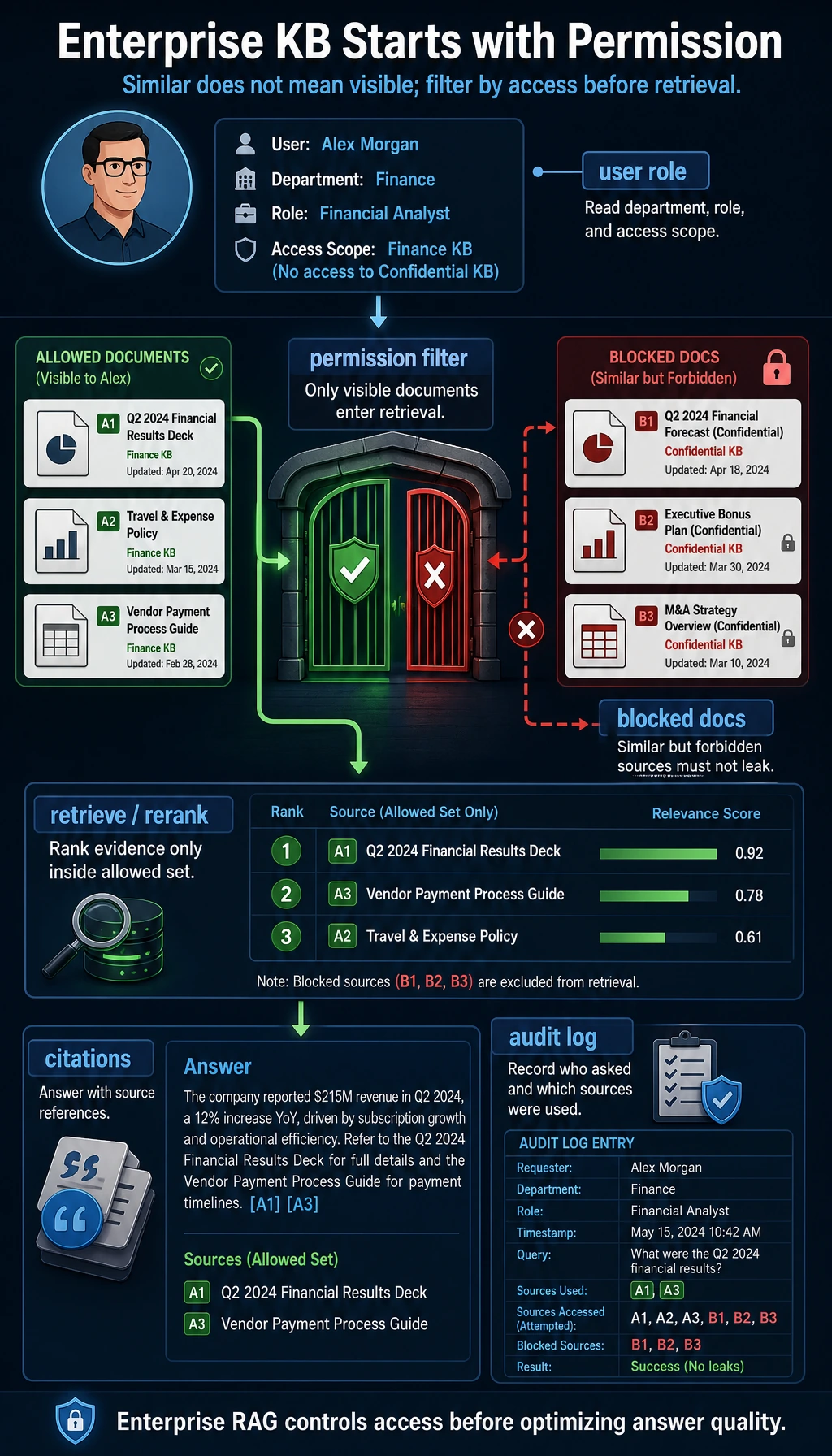

Enterprise knowledge base permission and citation map

Now zoom into the decision branch inside retrieve(). A matched chunk is not automatically evidence. It first has to pass the role check. If it matches but is private for this user, it goes to blocked_hits, not into the answer context.

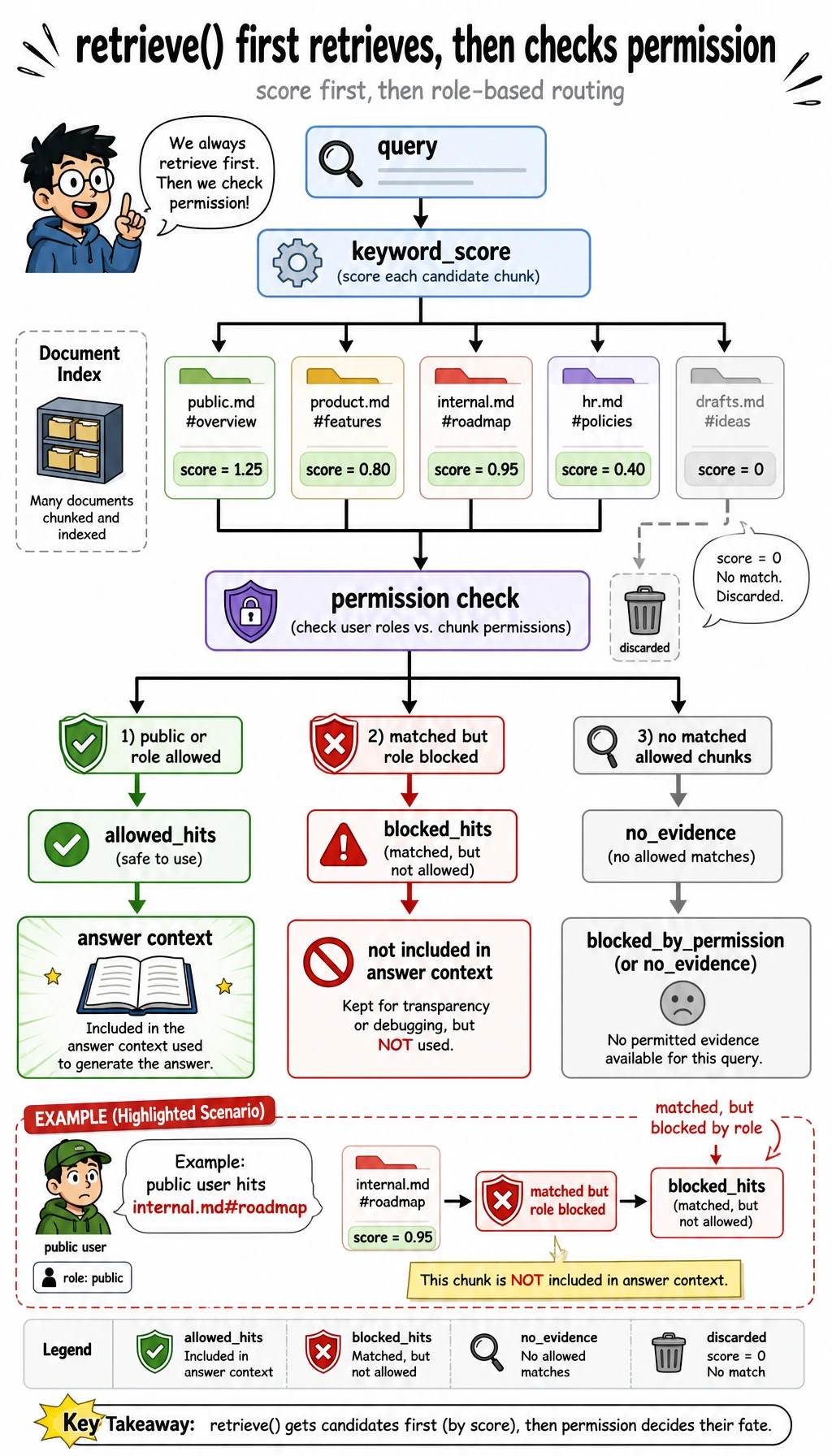

RAG workshop retrieve permission branch map

Look at this document:

{
    "doc_id": "private-roadmap",
    "source": "internal.md#roadmap",
    "roles": ["employee"],
    "text": "The beta roadmap targets a private release in Q4 ..."
}

The public user asks:

What is the private beta roadmap for Q4?

The keyword search can find a matching private chunk, but retrieve() puts it into blocked_hits, not allowed_hits. That is why the output is:

private_question_as_public: blocked_by_permission

This distinction matters in real projects. no_evidence means the system did not find usable evidence. blocked_by_permission means evidence may exist, but this user is not allowed to see it. These statuses should be logged differently.

Step 6: Add Trace Thinking Before Adding Frameworks

Assistant session and tool trace map

In real LLM applications, a trace is the record of what happened during one request. Even if you do not store a log file yet, you should be able to explain this sequence:

Trace stage	In this script	What to log later
Input	`query`, `role`	User ID, session ID, request ID
Parse	`chunk_documents()`	Document version and parser name
Retrieve	`retrieve()`	Top-k chunks, scores, query rewrite
Permission	`allowed_hits`, `blocked_hits`	Role, policy, blocked source count
Answer	`build_answer()`	Status, citations, model name
Evaluate	`evaluate()`	Pass/fail, failure reason

This is why Chapter 8 is application engineering, not just prompting. A reliable system needs visible intermediate states.

Step 7: Upgrade Path to Embeddings, Vector Databases, and APIs

Vector record and metadata filter map

Once the offline script works, replace one part at a time:

Current simple part	Later production part	Keep the same habit
In-memory `DOCUMENTS`	Markdown/PDF/Word parser plus storage	Preserve source metadata
Sentence chunking	Heading-aware or token-aware chunking	Keep chunk IDs stable
`keyword_score()`	Embeddings, hybrid search, or reranking	Print top-k and scores
`roles` list	Real authentication and authorization	Filter before answering
Extractive answer	Model call with a grounded prompt	Require citations
`EVAL_CASES`	Larger eval set and regression checks	Use the same questions after changes

Do not replace everything at once. If you change parsing, embedding, vector database, prompt, and model in the same edit, you will not know what caused an improvement or regression.

Step 8: Optional OpenAI Responses API Upgrade

Robust LLM API client loop

The offline script is the required beginner path. After it works, you can replace build_answer() with a real model call. Current OpenAI documentation recommends using the Responses API, and the models page currently points general complex reasoning and coding work to gpt-5.5. Keep the model configurable so you can switch to a cheaper or course-standard model later.

Install dependencies:

python3 -m venv .venv
source .venv/bin/activate
pip install "openai>=2" "pydantic>=2"
export OPENAI_API_KEY="your_api_key_here"
export OPENAI_MODEL="gpt-5.5"

Create ask_with_openai.py:

import json
import os

from openai import OpenAI


client = OpenAI()

query = "How many days do learners have for refunds?"
context = [
    {
        "source": "handbook.md#refund",
        "text": "Refund requests are accepted within 14 days of enrollment when the learner has completed less than 20 percent of the course.",
    }
]

response = client.responses.create(
    model=os.getenv("OPENAI_MODEL", "gpt-5.5"),
    input=[
        {
            "role": "system",
            "content": (
                "Answer only from the provided context. "
                "If the context is insufficient, return status no_evidence. "
                "Always include citations from the source fields."
            ),
        },
        {
            "role": "user",
            "content": json.dumps({"question": query, "context": context}, ensure_ascii=False),
        },
    ],
    text={
        "format": {
            "type": "json_schema",
            "name": "rag_answer",
            "strict": True,
            "schema": {
                "type": "object",
                "additionalProperties": False,
                "properties": {
                    "status": {"type": "string", "enum": ["answered", "no_evidence"]},
                    "answer": {"type": "string"},
                    "citations": {"type": "array", "items": {"type": "string"}},
                },
                "required": ["status", "answer", "citations"],
            },
        }
    },
)

print(response.output_text)

Run:

python3 ask_with_openai.py

Expected shape:

{"status":"answered","answer":"Refund requests are accepted within 14 days of enrollment when the learner has completed less than 20 percent of the course.","citations":["handbook.md#refund"]}

If the model returns text without citations, treat that as a failed check. In a production project, validate the output, retry with a stricter instruction, or return a controlled error instead of showing an unsupported answer.

Step 9: Function Calling and Structured Output Mental Model

Function calling validation and dispatch map

In this workshop, retrieve() is a normal Python function. In a model-driven application, a model may decide to call tools such as search_knowledge_base, get_user_profile, or create_ticket.

The safe pattern is:

Stage	What happens	Safety point
Schema	Define the tool input fields	Reject missing or unknown fields
Validation	Check role, source, and allowed action	Do not trust model arguments blindly
Dispatch	Run the actual function	Keep side effects controlled
Observation	Return result to the model	Keep private data filtered
Final answer	Answer with citations or a no-answer status	Validate before displaying

The offline script already teaches the same habit: retrieval, permission, answer, and evaluation are separate steps.

Step 10: Troubleshooting Checklist

RAG layer failure debug map

Symptom	Likely cause	What to check	Fix
`chunks: 0`	Documents did not parse	Print `DOCUMENTS` and sentence split result	Fix input text or parser
Correct document exists but retrieval misses it	Query terms do not match chunk terms	Print `normalize(query)` and chunk tokens	Add synonyms, embeddings, or query rewrite
Answer has no citation	Source metadata was lost	Inspect chunk records	Keep `source` in every chunk
Private document appears in public answer	Permission filter is after answer generation	Inspect `retrieve()` order	Filter before prompt/model call
Unknown question gets a confident answer	No-answer handling is missing	Test `What is the cafeteria menu today?`	Return `no_evidence` when hits are empty
Evaluation gets worse after a change	Too many parts changed at once	Compare git diff and eval output	Change one layer at a time

Step 11: Practice Tasks

RAG experiment and evaluation loop

Complete these in order:

Level	Task	Passing standard
Easy	Add one public document and one evaluation case	`passed` count increases and the new citation appears
Standard	Add `logs/retrieval_logs.jsonl` output	Each question records query, role, status, scores, and citations
Standard	Add a `top_k` configuration variable	You can compare `top_k=1` and `top_k=2` results
Challenge	Replace `keyword_score()` with embeddings	Evaluation still runs with the same cases
Challenge	Add a small FastAPI endpoint	`/ask` returns `status`, `answer`, `citations`, and trace ID

Operation guide and checkpoints

Easy pass: the new document is retrievable, cited, and covered by a new evaluation case.
Logging pass: every request has enough trace data to debug retrieval and permissions.
top_k pass: the comparison explains the recall/noise trade-off, not just that the output changed.
Embedding/FastAPI challenge pass: evaluation still works and the API returns a stable schema with a trace ID.
The completion standard is met only if README, run command, and evidence make the project reproducible.

Workshop Completion Standard

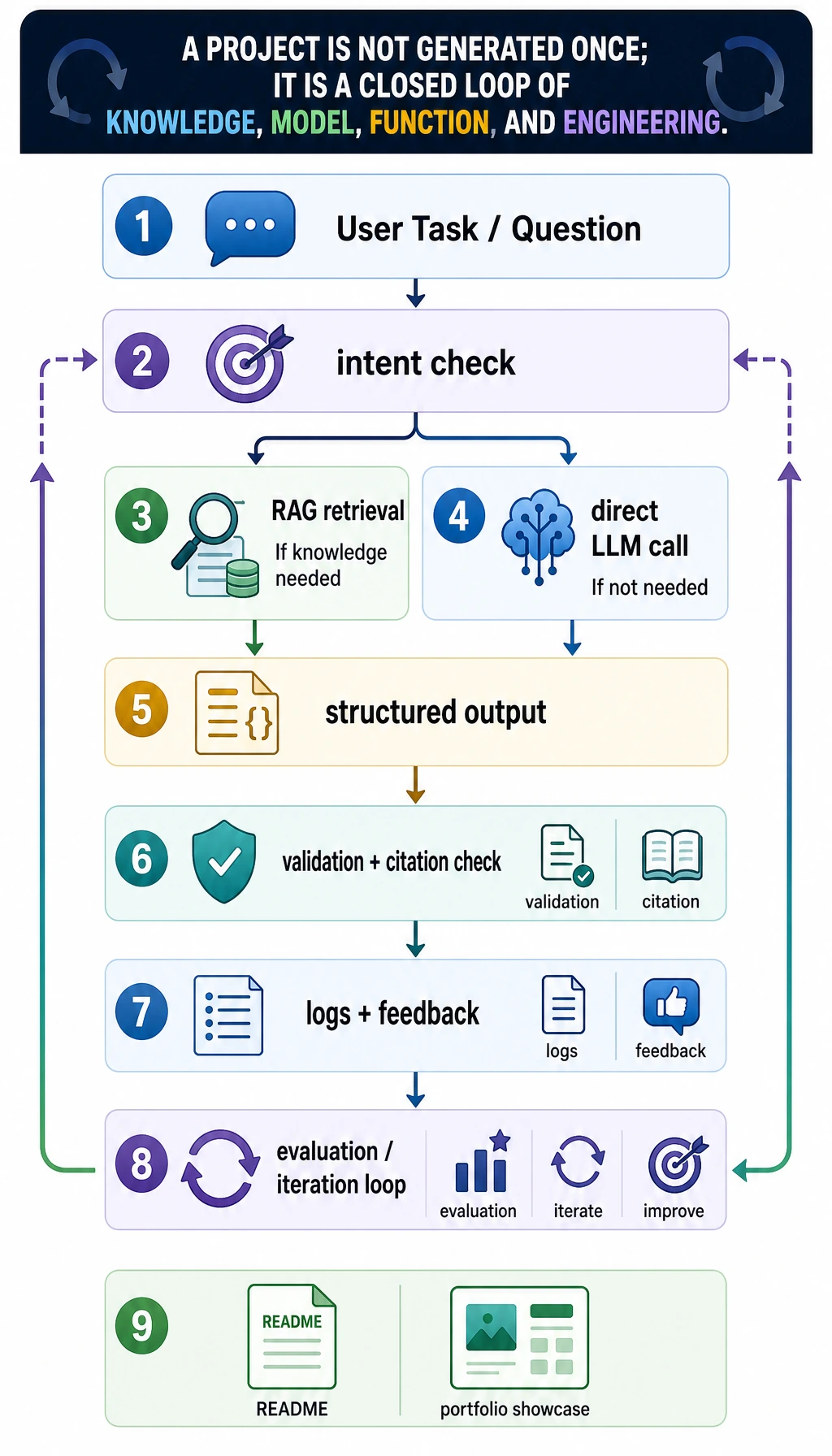

LLM application project delivery loop

You have completed this Chapter 8 hands-on workshop when you can:

Run python3 rag_app_workshop.py and get the expected output.
Explain what chunk, metadata, top_k, citation, trace, and evaluation set mean.
Show why a public user cannot access internal.md#roadmap.
Add one new document and one new evaluation case without breaking the existing tests.
Explain which part you would replace first when moving to embeddings, a vector database, or a real model API.

Keep this small project as your Chapter 8 baseline. When later pages introduce LangChain, vector databases, deployment, monitoring, or Agent, compare them back to this script: what part did the framework replace, and what responsibility still belongs to your application code?

Evidence to Keep

Keep this page’s proof of learning as a small evidence card:

Project Goal: user task and business boundary
Baseline: simplest prompt/RAG/app version first
Evaluation: fixed cases, retrieval evidence, answer quality, and citation check
Failure Log: at least one failed case with likely cause
Deliverable: README, run command, screenshots/logs, next step
