12.5.3 Hands-on: Build a Reproducible Multimodal Creative Package

Before you connect real image, video, or speech models, first build a small workflow that proves you understand the product loop: input, prompt planning, asset generation, version records, review, export, and failure cases.

This workshop uses only the Python standard library and generates SVG mock assets locally. That is intentional: the goal is to make the workflow reproducible before you replace the SVG baseline with image generation, TTS, video generation, or a multimodal model API.

What You Will Build

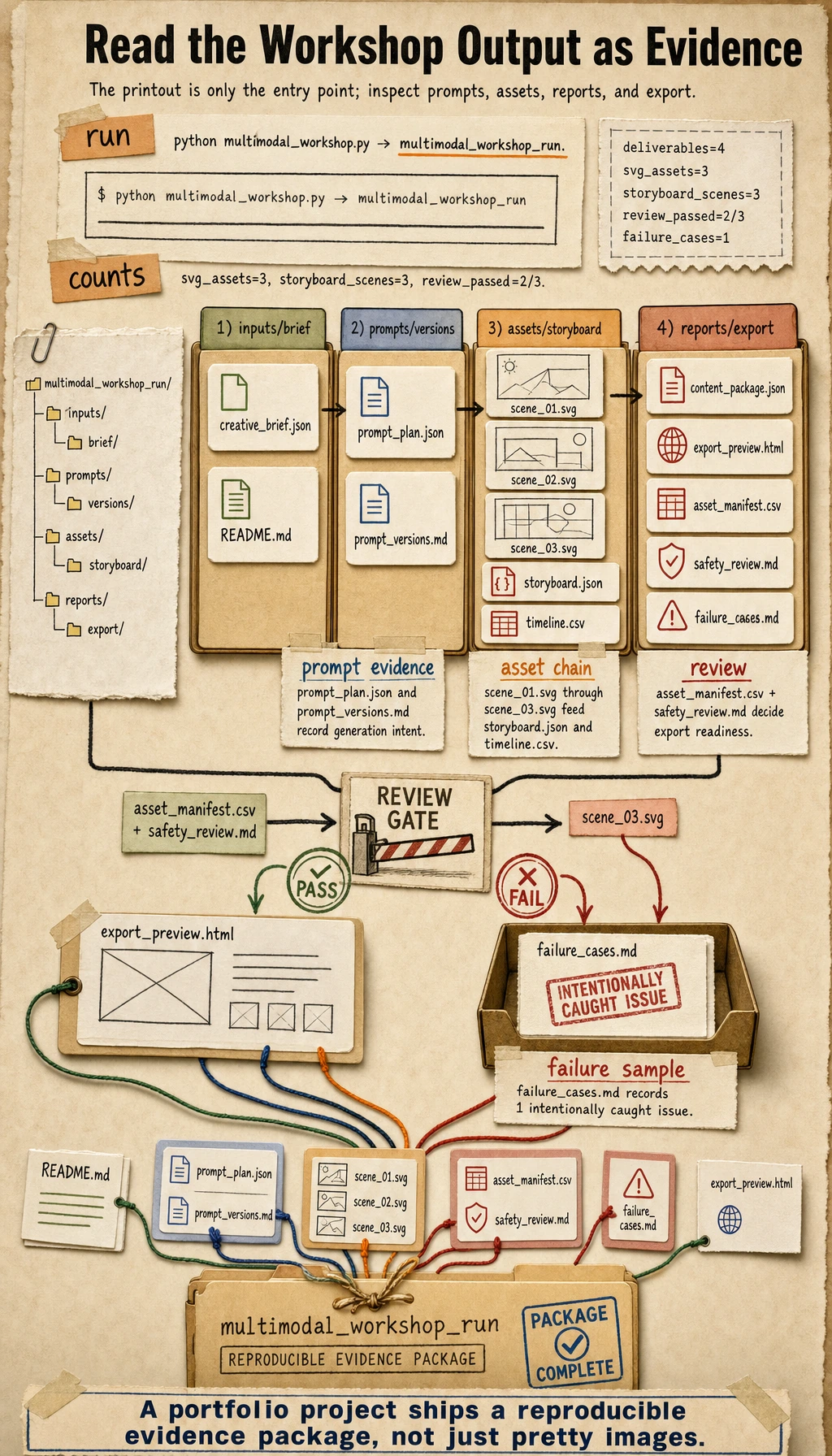

You will create this folder:

multimodal_workshop_run/
  inputs/
    creative_brief.json
  prompts/
    prompt_plan.json
    prompt_versions.md
  assets/
    scene_01.svg
    scene_02.svg
    scene_03.svg
  outputs/
    storyboard.json
    timeline.csv
    content_package.json
    export_preview.html
  reports/
    asset_manifest.csv
    safety_review.md
    failure_cases.md
  README.md

The most important result is not the SVG itself. The important result is that every generated asset has a prompt, source record, review result, export boundary, and failure note.

Step 0: Read the Product Loop

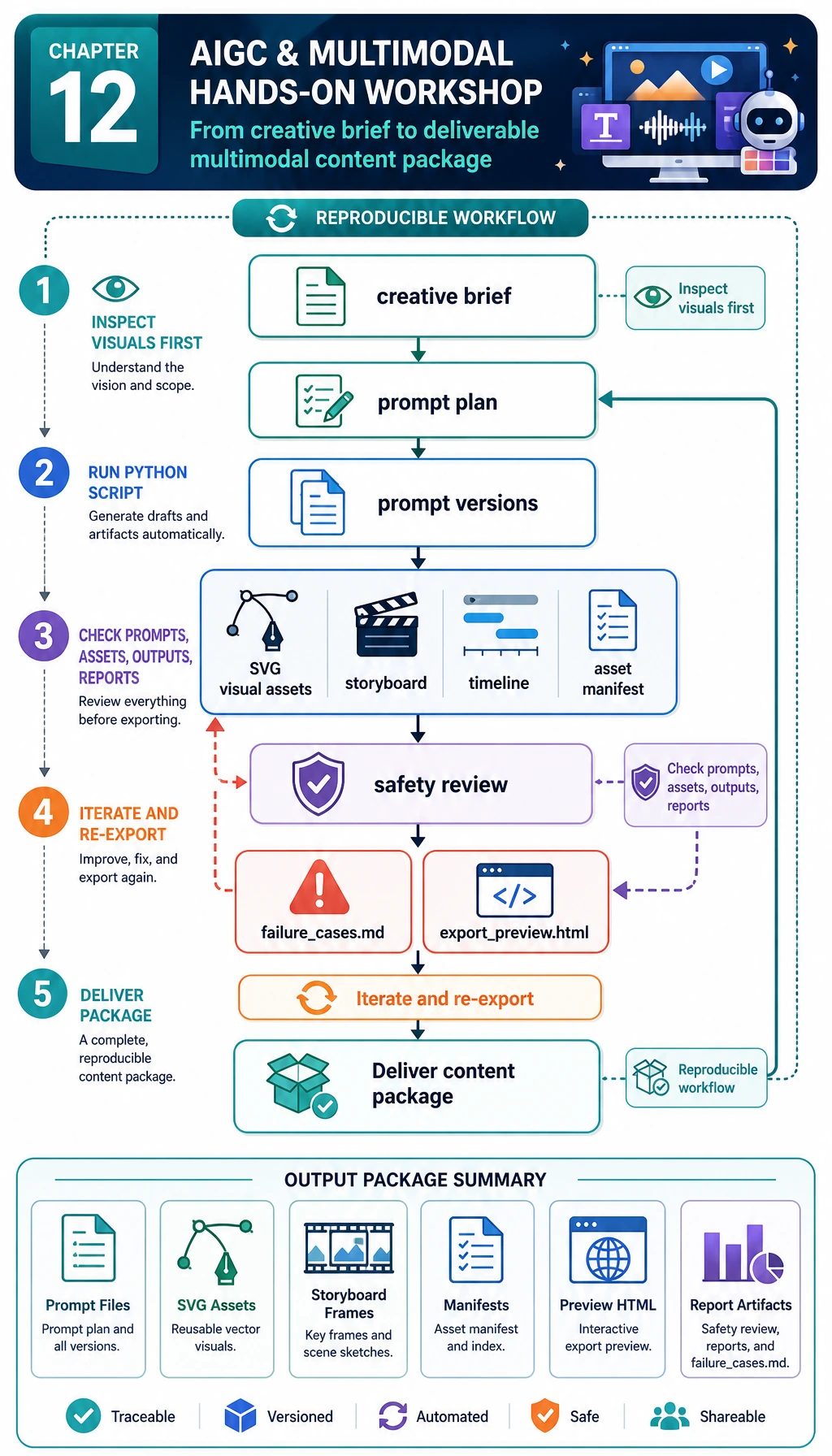

The practical loop is:

1. Write a creative brief.

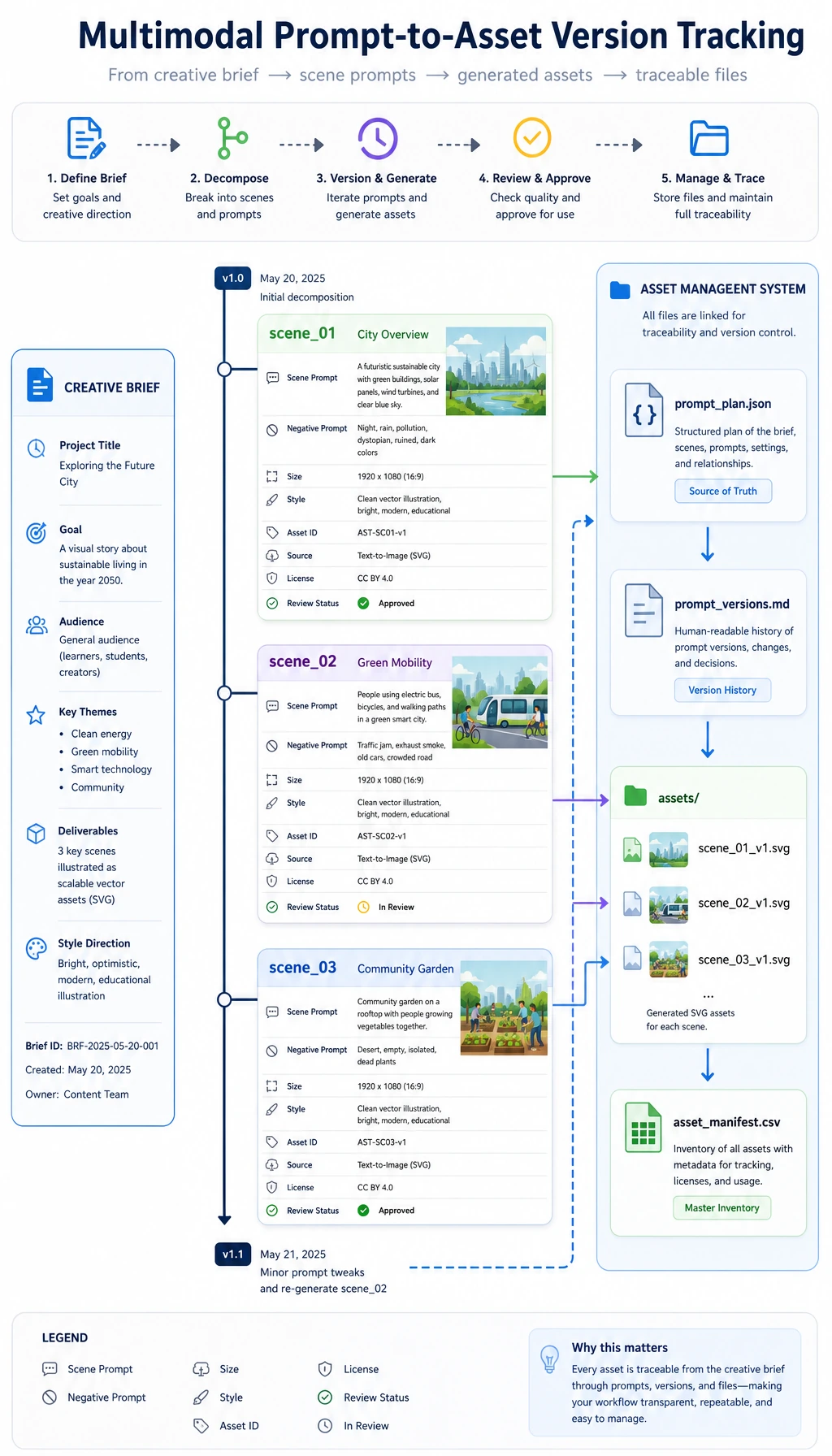

2. Split the brief into scene-level prompts.
3. Generate baseline visual assets.
4. Build a storyboard and timeline.

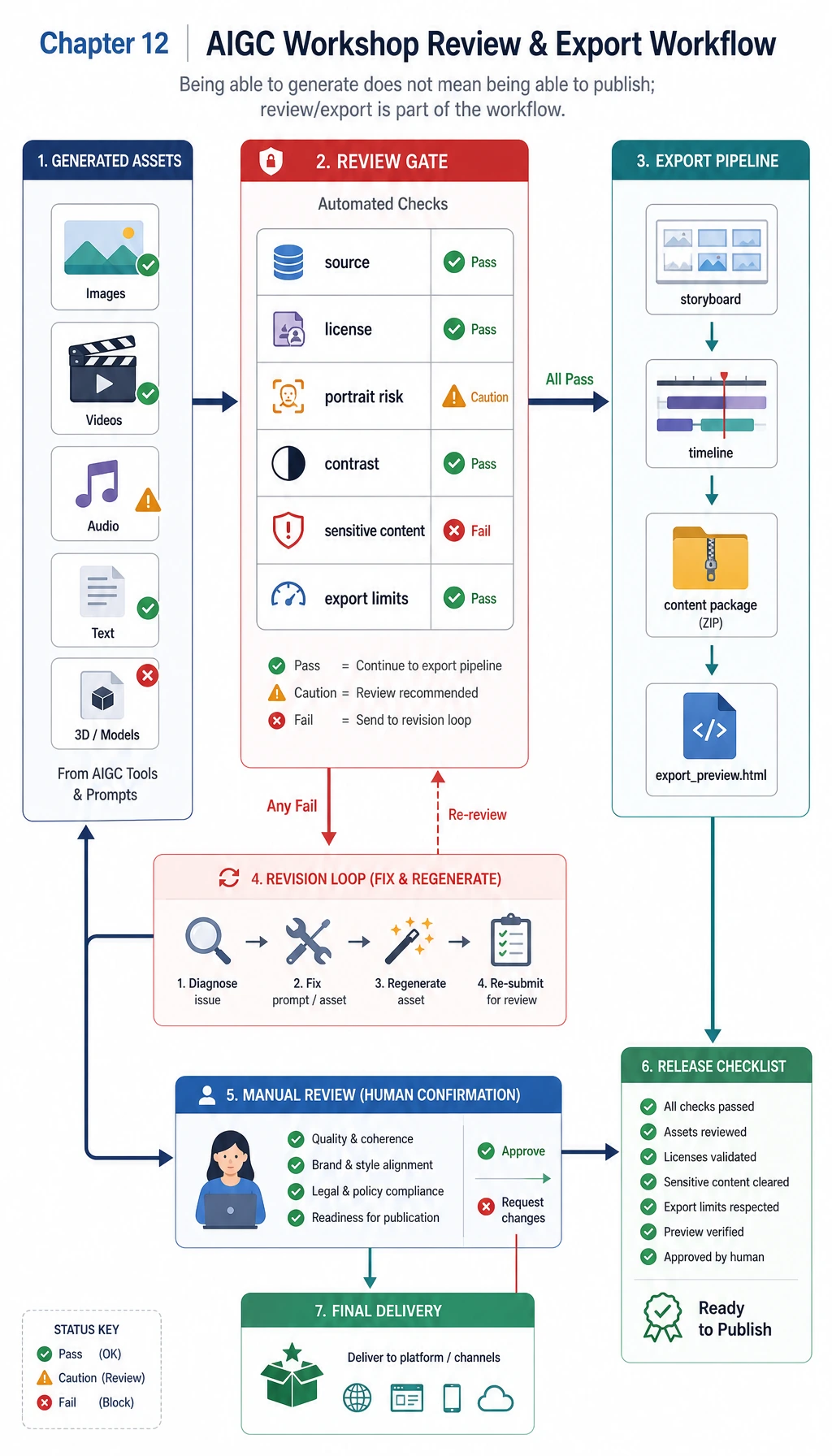

5. Review asset sources, licenses, portrait risks, contrast, and export limits.
6. Export an HTML preview and a content package.
7. Save failure cases for the next iteration.

Step 1: Create the Folder and File

mkdir multimodal-workshop
cd multimodal-workshop
python3 -m venv .venv
source .venv/bin/activate

No pip install is needed. Create multimodal_workshop.py and paste the complete script below.

Step 2: Run the Complete Script

from __future__ import annotations

import csv
import html
import json
import shutil
from pathlib import Path

RUN_DIR = Path("multimodal_workshop_run")
if RUN_DIR.exists():
    shutil.rmtree(RUN_DIR)
INPUT_DIR = RUN_DIR / "inputs"
PROMPT_DIR = RUN_DIR / "prompts"
ASSET_DIR = RUN_DIR / "assets"
OUTPUT_DIR = RUN_DIR / "outputs"
REPORT_DIR = RUN_DIR / "reports"
for folder in [INPUT_DIR, PROMPT_DIR, ASSET_DIR, OUTPUT_DIR, REPORT_DIR]:
    folder.mkdir(parents=True, exist_ok=True)

BRIEF = {
    "project_id": "course-launch-multimodal-kit",
    "topic": "AI learning assistant launch kit",
    "audience": "beginners learning AI full-stack development",
    "goal": "create a small content package for a course landing page and short video storyboard",
    "tone": "clear, practical, optimistic",
    "deliverables": ["poster SVG", "three-shot storyboard", "review checklist", "export preview HTML"],
    "constraints": ["no real person likeness", "no external copyrighted assets", "show source and review records"],
}

SCENES = [
    {
        "id": "scene_01",
        "title": "From scattered materials to one learning assistant",
        "visual_prompt": "A clean course dashboard combining text notes, screenshots, and voice notes into one AI learning assistant workspace.",
        "copy": "Turn scattered study materials into a guided AI learning workflow.",
        "duration_sec": 5,
        "background": "#f7f3e8",
        "accent": "#2563eb",
        "text_color": "#1f2937",
        "source": "script_generated_svg",
        "license": "generated_by_script_for_course_demo",
        "uses_real_person": False,
    },
    {
        "id": "scene_02",
        "title": "Review before export",
        "visual_prompt": "A multimodal review desk with prompt versions, asset records, copyright checks, and export options.",
        "copy": "Save prompts, assets, human review, and export limits before sharing.",
        "duration_sec": 6,
        "background": "#e8eef7",
        "accent": "#93c5fd",
        "text_color": "#bfdbfe",
        "source": "script_generated_svg",
        "license": "generated_by_script_for_course_demo",
        "uses_real_person": False,
    },
    {
        "id": "scene_03",
        "title": "Ready for a portfolio demo",
        "visual_prompt": "A final portfolio package showing poster, storyboard, safety checklist, and README ready for presentation.",
        "copy": "A usable AIGC project is a workflow, not a single pretty output.",
        "duration_sec": 5,
        "background": "#ecfdf5",
        "accent": "#059669",
        "text_color": "#064e3b",
        "source": "script_generated_svg",
        "license": "generated_by_script_for_course_demo",
        "uses_real_person": False,
    },
]

REVIEW_RULES = [
    "source_recorded",
    "license_recorded",
    "no_real_person_likeness",
    "sufficient_contrast",
    "export_limits_written",
]


def write_json(path: Path, data: object) -> None:
    path.write_text(json.dumps(data, indent=2, ensure_ascii=False), encoding="utf-8")


def write_csv(path: Path, rows: list[dict[str, object]], fieldnames: list[str]) -> None:
    with path.open("w", newline="", encoding="utf-8") as f:
        writer = csv.DictWriter(f, fieldnames=fieldnames)
        writer.writeheader()
        writer.writerows(rows)


def hex_to_rgb(color: str) -> tuple[int, int, int]:
    color = color.lstrip("#")
    return tuple(int(color[i:i + 2], 16) for i in (0, 2, 4))


def relative_luminance(color: str) -> float:
    def channel(value: int) -> float:
        value = value / 255
        return value / 12.92 if value <= 0.03928 else ((value + 0.055) / 1.055) ** 2.4

    r, g, b = (channel(v) for v in hex_to_rgb(color))
    return 0.2126 * r + 0.7152 * g + 0.0722 * b


def contrast_ratio(left: str, right: str) -> float:
    l1 = relative_luminance(left)
    l2 = relative_luminance(right)
    lighter = max(l1, l2)
    darker = min(l1, l2)
    return (lighter + 0.05) / (darker + 0.05)


def wrap_text(text: str, width: int = 46) -> list[str]:
    words = text.split()
    lines = []
    current = ""
    for word in words:
        trial = f"{current} {word}".strip()
        if len(trial) > width and current:
            lines.append(current)
            current = word
        else:
            current = trial
    if current:
        lines.append(current)
    return lines


def svg_text_lines(lines: list[str], x: int, y: int, size: int, fill: str) -> str:
    chunks = []
    for index, line in enumerate(lines):
        chunks.append(
            f'<text x="{x}" y="{y + index * int(size * 1.35)}" font-size="{size}" fill="{fill}" font-family="Arial, sans-serif">{html.escape(line)}</text>'
        )
    return "\n".join(chunks)


def create_svg(scene: dict[str, object], path: Path) -> None:
    title_lines = wrap_text(str(scene["title"]), 30)
    copy_lines = wrap_text(str(scene["copy"]), 44)
    prompt_lines = wrap_text(str(scene["visual_prompt"]), 58)
    svg = f'''<svg xmlns="http://www.w3.org/2000/svg" width="1200" height="675" viewBox="0 0 1200 675">
  <rect width="1200" height="675" fill="{scene['background']}"/>
  <rect x="64" y="64" width="1072" height="547" rx="24" fill="#ffffff" opacity="0.86"/>
  <circle cx="1000" cy="154" r="74" fill="{scene['accent']}" opacity="0.18"/>
  <circle cx="964" cy="204" r="42" fill="{scene['accent']}" opacity="0.28"/>
  <rect x="96" y="110" width="236" height="156" rx="18" fill="{scene['accent']}" opacity="0.16"/>
  <rect x="126" y="142" width="176" height="18" rx="9" fill="{scene['accent']}" opacity="0.62"/>
  <rect x="126" y="178" width="132" height="18" rx="9" fill="{scene['accent']}" opacity="0.42"/>
  <rect x="126" y="214" width="154" height="18" rx="9" fill="{scene['accent']}" opacity="0.42"/>
  <path d="M370 188 C470 104, 606 104, 706 188 S940 272, 1040 188" fill="none" stroke="{scene['accent']}" stroke-width="12" stroke-linecap="round" opacity="0.48"/>
  <rect x="762" y="112" width="256" height="176" rx="22" fill="{scene['accent']}" opacity="0.12"/>
  <path d="M806 230 L864 170 L916 222 L946 194 L990 244" fill="none" stroke="{scene['accent']}" stroke-width="10" stroke-linecap="round" stroke-linejoin="round" opacity="0.68"/>
  {svg_text_lines(title_lines, 96, 352, 42, scene['text_color'])}
  {svg_text_lines(copy_lines, 96, 458, 28, scene['text_color'])}
  <rect x="96" y="548" width="1008" height="38" rx="19" fill="#111827" opacity="0.06"/>
  {svg_text_lines(prompt_lines, 118, 574, 18, '#374151')}
</svg>
'''
    path.write_text(svg, encoding="utf-8")


def build_prompt_plan(brief: dict[str, object], scenes: list[dict[str, object]]) -> list[dict[str, object]]:
    plan = []
    for index, scene in enumerate(scenes, start=1):
        plan.append({
            "version": f"v{index}",
            "scene_id": scene["id"],
            "task": "image_generation_prompt",
            "prompt": scene["visual_prompt"],
            "negative_prompt": "no real person likeness, no brand logo, no copyrighted character, no unreadable text",
            "size": "1200x675",
            "style": brief["tone"],
            "status": "ready_for_model_or_svg_baseline",
        })
    return plan


def review_scene(scene: dict[str, object]) -> tuple[dict[str, object], list[str]]:
    contrast = contrast_ratio(str(scene["background"]), str(scene["text_color"]))
    checks = {
        "source_recorded": bool(scene.get("source")),
        "license_recorded": bool(scene.get("license")),
        "no_real_person_likeness": not bool(scene.get("uses_real_person")),
        "sufficient_contrast": contrast >= 4.5,
        "export_limits_written": True,
    }
    failures = [name for name, passed in checks.items() if not passed]
    return {
        "scene_id": scene["id"],
        "title": scene["title"],
        "source": scene["source"],
        "license": scene["license"],
        "contrast_ratio": round(contrast, 2),
        "passed": not failures,
        **checks,
    }, failures


def build_storyboard(scenes: list[dict[str, object]]) -> list[dict[str, object]]:
    elapsed = 0
    storyboard = []
    for scene in scenes:
        start = elapsed
        end = start + int(scene["duration_sec"])
        elapsed = end
        storyboard.append({
            "scene_id": scene["id"],
            "start_sec": start,
            "end_sec": end,
            "visual": scene["visual_prompt"],
            "voiceover": scene["copy"],
            "asset_file": f"assets/{scene['id']}.svg",
        })
    return storyboard


def build_html_preview(brief: dict[str, object], scenes: list[dict[str, object]], review_rows: list[dict[str, object]]) -> str:
    cards = []
    for scene, review in zip(scenes, review_rows):
        status = "PASS" if review["passed"] else "REVIEW"
        cards.append(f'''
<section class="card">
  <img src="../assets/{scene['id']}.svg" alt="{html.escape(str(scene['title']))}">
  <h2>{html.escape(str(scene['title']))}</h2>
  <p>{html.escape(str(scene['copy']))}</p>
  <p><strong>Review:</strong> {status} | contrast {review['contrast_ratio']}</p>
</section>''')
    return f'''<!doctype html>
<html lang="en">
<head>
  <meta charset="utf-8">
  <title>{html.escape(str(brief['topic']))}</title>
  <style>
    body {{ font-family: Arial, sans-serif; margin: 0; background: #f8fafc; color: #111827; }}
    main {{ max-width: 960px; margin: 0 auto; padding: 32px; }}
    .card {{ background: white; border: 1px solid #e5e7eb; border-radius: 8px; padding: 18px; margin-bottom: 18px; }}
    img {{ width: 100%; border-radius: 6px; border: 1px solid #e5e7eb; }}
  </style>
</head>
<body>
<main>
  <h1>{html.escape(str(brief['topic']))}</h1>
  <p>{html.escape(str(brief['goal']))}</p>
  {''.join(cards)}
</main>
</body>
</html>
'''


def main() -> None:
    write_json(INPUT_DIR / "creative_brief.json", BRIEF)
    prompt_plan = build_prompt_plan(BRIEF, SCENES)
    write_json(PROMPT_DIR / "prompt_plan.json", prompt_plan)
    prompt_md = ["# Prompt Versions", ""]
    for item in prompt_plan:
        prompt_md.append(f"## {item['version']} - {item['scene_id']}")
        prompt_md.append(f"- Prompt: {item['prompt']}")
        prompt_md.append(f"- Negative prompt: {item['negative_prompt']}")
        prompt_md.append(f"- Status: {item['status']}")
        prompt_md.append("")
    (PROMPT_DIR / "prompt_versions.md").write_text("\n".join(prompt_md), encoding="utf-8")

    review_rows = []
    failure_cases = []
    for scene in SCENES:
        asset_path = ASSET_DIR / f"{scene['id']}.svg"
        create_svg(scene, asset_path)
        review, failures = review_scene(scene)
        review_rows.append(review)
        if failures:
            failure_cases.append({
                "scene_id": scene["id"],
                "title": scene["title"],
                "failures": failures,
                "suspected_cause": "visual design or missing asset metadata does not meet export rules",
                "fix_action": "adjust colors, source records, license notes, or review thresholds, then rerun the script",
            })

    write_csv(REPORT_DIR / "asset_manifest.csv", review_rows, ["scene_id", "title", "source", "license", "contrast_ratio", "passed", *REVIEW_RULES])
    storyboard = build_storyboard(SCENES)
    write_json(OUTPUT_DIR / "storyboard.json", storyboard)
    write_csv(OUTPUT_DIR / "timeline.csv", storyboard, ["scene_id", "start_sec", "end_sec", "visual", "voiceover", "asset_file"])
    write_json(OUTPUT_DIR / "content_package.json", {"brief": BRIEF, "prompts": prompt_plan, "storyboard": storyboard, "review": review_rows})
    (OUTPUT_DIR / "export_preview.html").write_text(build_html_preview(BRIEF, SCENES, review_rows), encoding="utf-8")

    safety_lines = ["# Safety Review", "", "| Scene | Source | License | Contrast | Result |", "|---|---|---|---:|---|"]
    for row in review_rows:
        result = "PASS" if row["passed"] else "NEEDS REVIEW"
        safety_lines.append(f"| {row['scene_id']} | {row['source']} | {row['license']} | {row['contrast_ratio']} | {result} |")
    safety_lines.append("")
    safety_lines.append("Export limits: course demo only; replace SVG baseline assets with reviewed model outputs before public release.")
    (REPORT_DIR / "safety_review.md").write_text("\n".join(safety_lines), encoding="utf-8")

    failure_lines = ["# Failure Cases", ""]
    if not failure_cases:
        failure_lines.append("No failure cases were triggered. Add a boundary sample before using this as a portfolio report.")
    for index, case in enumerate(failure_cases, start=1):
        failure_lines.append(f"## Case {index}: {case['scene_id']}")
        failure_lines.append(f"- Title: {case['title']}")
        failure_lines.append(f"- Failures: {', '.join(case['failures'])}")
        failure_lines.append(f"- Suspected cause: {case['suspected_cause']}")
        failure_lines.append(f"- Fix action: {case['fix_action']}")
        failure_lines.append("")
    (REPORT_DIR / "failure_cases.md").write_text("\n".join(failure_lines), encoding="utf-8")

    readme = f"""# Multimodal Workshop Run

Run command:

~~~bash
python multimodal_workshop.py
~~~

Artifacts:

- inputs/creative_brief.json
- prompts/prompt_plan.json and prompts/prompt_versions.md
- assets/*.svg
- outputs/storyboard.json
- outputs/export_preview.html
- reports/asset_manifest.csv
- reports/safety_review.md
- reports/failure_cases.md

Summary:

- scenes: {len(SCENES)}
- generated_svg_assets: {len(list(ASSET_DIR.glob('*.svg')))}
- review_passed: {sum(1 for row in review_rows if row['passed'])}/{len(review_rows)}
- failure_cases: {len(failure_cases)}
"""
    (RUN_DIR / "README.md").write_text(readme, encoding="utf-8")

    print("STEP 1: project brief")
    print(f"topic: {BRIEF['topic']}")
    print(f"deliverables: {len(BRIEF['deliverables'])}")
    print("")
    print("STEP 2: generated assets")
    print(f"svg_assets: {len(list(ASSET_DIR.glob('*.svg')))}")
    print(f"storyboard_scenes: {len(storyboard)}")
    print(f"review_passed: {sum(1 for row in review_rows if row['passed'])}/{len(review_rows)}")
    print(f"failure_cases: {len(failure_cases)}")
    print("")
    print("STEP 3: files to inspect")
    print(f"prompt_plan: {PROMPT_DIR / 'prompt_plan.json'}")
    print(f"asset_manifest: {REPORT_DIR / 'asset_manifest.csv'}")
    print(f"safety_review: {REPORT_DIR / 'safety_review.md'}")
    print(f"export_preview: {OUTPUT_DIR / 'export_preview.html'}")


if __name__ == "__main__":
    main()

Run it:

python multimodal_workshop.py

Expected output:

STEP 1: project brief
topic: AI learning assistant launch kit
deliverables: 4

STEP 2: generated assets
svg_assets: 3
storyboard_scenes: 3
review_passed: 2/3
failure_cases: 1

STEP 3: files to inspect
prompt_plan: multimodal_workshop_run/prompts/prompt_plan.json
asset_manifest: multimodal_workshop_run/reports/asset_manifest.csv
safety_review: multimodal_workshop_run/reports/safety_review.md
export_preview: multimodal_workshop_run/outputs/export_preview.html

Step 3: Inspect the Brief and Prompt Records

Open inputs/creative_brief.json. This is the user requirement in structured form: topic, audience, goal, tone, deliverables, and constraints.

Then open prompts/prompt_plan.json and prompts/prompt_versions.md. A real AIGC project should not lose the prompt once an image or video is generated. The prompt is part of the project evidence.

Step 4: Inspect the Assets and Storyboard

Open assets/scene_01.svg, assets/scene_02.svg, and assets/scene_03.svg in your browser. They are baseline SVG assets generated by the script, and they behave like generated assets in the workflow.

Open outputs/storyboard.json and outputs/timeline.csv. These files explain how visual assets become a short video or landing-page sequence.

Step 5: Read the Review Files

Open reports/asset_manifest.csv. Each row stores:

Field	Meaning
source	Where the asset came from
license	Whether the asset can be used in this demo
contrast_ratio	Whether text is readable enough
passed	Whether the asset can move to export

Then open reports/safety_review.md. This file is where you record copyright, portrait rights, content safety, and export boundaries.

Step 6: Open the Export Preview

Open outputs/export_preview.html in a browser. It is not a full app, but it proves that the project can move from creative requirement to exportable package.

In a real upgrade, you can replace:

Baseline module	Real project replacement
Baseline SVG asset	Image generation API or local image model
Storyboard JSON	Video generation workflow
Copy text	LLM-generated copy with review
Safety checklist	Human review plus policy checks
HTML preview	Frontend creative workspace

Step 7: Read the Failure Report

Open reports/failure_cases.md. This workshop intentionally makes one scene fail the contrast check. That is useful because a portfolio project should show how you catch problems, not only how you produce pretty outputs.

For each failure, ask:

1. Is the material source recorded?
2. Is the license or usage scope clear?
3. Does the asset contain a real person or brand risk?
4. Is the generated content readable and exportable?
5. Does the project state what must be manually confirmed before publishing?

Evidence to Keep

Keep this page’s proof of learning as a small evidence card:

Brief

user goal, audience, assets, constraints, and export format

Artifacts

source files, prompts, generated candidates, selected output, and rejected versions

Review

factual check, copyright/portrait/sensitive-content check, and human decision

Integration

RAG record, Agent trace, creative package, storyboard, or export preview

Expected Output

reproducible asset package with README, review checklist, and failure notes

Common Errors

Symptom	Likely cause	Fix
Generated assets cannot be reused	No source or license record	Add asset_manifest.csv and review every asset
Prompt versions are lost	Prompt only exists in chat history	Save prompt_plan.json before generation
Video script feels incoherent	No storyboard or timeline	Write storyboard.json before generation
Output looks good but cannot be published	No copyright, portrait, or safety review	Add safety_review.md and export limits
Users cannot compare versions	Assets overwrite each other	Add scene IDs, prompt versions, and output folders

Practice Tasks

1. Fix scene_02 colors so all scenes pass the contrast review.
2. Add scene_04 and extend the storyboard timeline.
3. Add a field called manual_reviewer to the safety review.
4. Replace one SVG with an image generated by your preferred image model, but keep the same manifest and review files.
5. Add one intentionally risky asset and confirm that it enters failure_cases.md.

Operation guide and checkpoints

1. scene_02 passes when the foreground/background contrast meets the same review rule as the other scenes and the manifest records the change.
2. scene_04 should be added to the storyboard with an id, purpose, duration/order, required assets, prompt version, and review result so the timeline remains reproducible.
3. manual_reviewer belongs in the safety review record, not only in a README note. It should identify who reviewed or which role approved the asset.
4. Replacing an SVG is acceptable only if the generated image keeps the same manifest entry, source/prompt record, selected output path, and review files.
5. The intentionally risky asset should not silently pass. A good result is that it appears in failure_cases.md with the reason, risk category, and next action.

## Completion Standard

You have completed this workshop when you can explain:

• what the creative brief controls;
• why prompts and assets need version records;
• how a storyboard turns assets into a video or page sequence;
• why safety review is part of the workflow, not an afterthought;
• which files prove the project is reproducible.

This is the smallest useful baseline for Chapter 12: a multimodal project that can be generated, reviewed, exported, and explained.
