12.1.1 Multimodal Roadmap: Encode, Align, Use

Multimodal AI is not just “chat with an image.” A useful system turns images, text, audio, or video into structured observations, aligns them with the task, then sends the result into retrieval, review, creation, or automation.

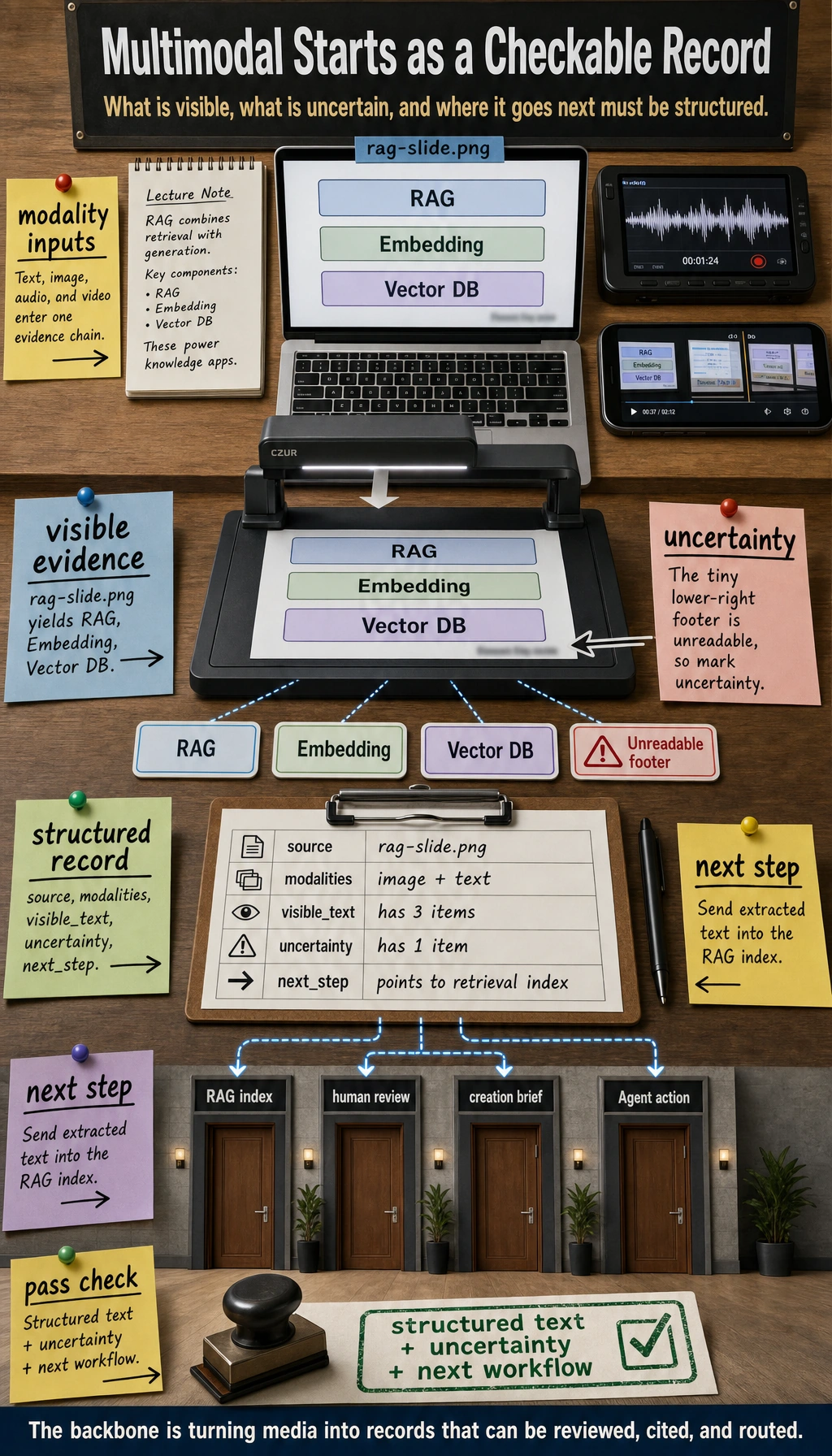

See the Pipeline First

The first habit is to ask: what modality comes in, what evidence is visible, what is uncertain, and where does the structured result go next?

Run a Simulated Vision Record

import json

visible_text = ["RAG", "Embedding", "Vector DB"]
record = {
    "source": "rag-slide.png",
    "modalities": ["image", "text"],
    "visible_text": visible_text,
    "next_step": "send extracted text to retrieval index",
    "uncertainty": ["small footer text is unreadable"],
}

print(json.dumps(record, indent=2))

Expected output:

{
  "source": "rag-slide.png",
  "modalities": [
    "image",
    "text"
  ],
  "visible_text": [
    "RAG",
    "Embedding",
    "Vector DB"
  ],
  "next_step": "send extracted text to retrieval index",
  "uncertainty": [
    "small footer text is unreadable"
  ]
}

This tiny record is enough to practice the product shape before you connect a real vision model.

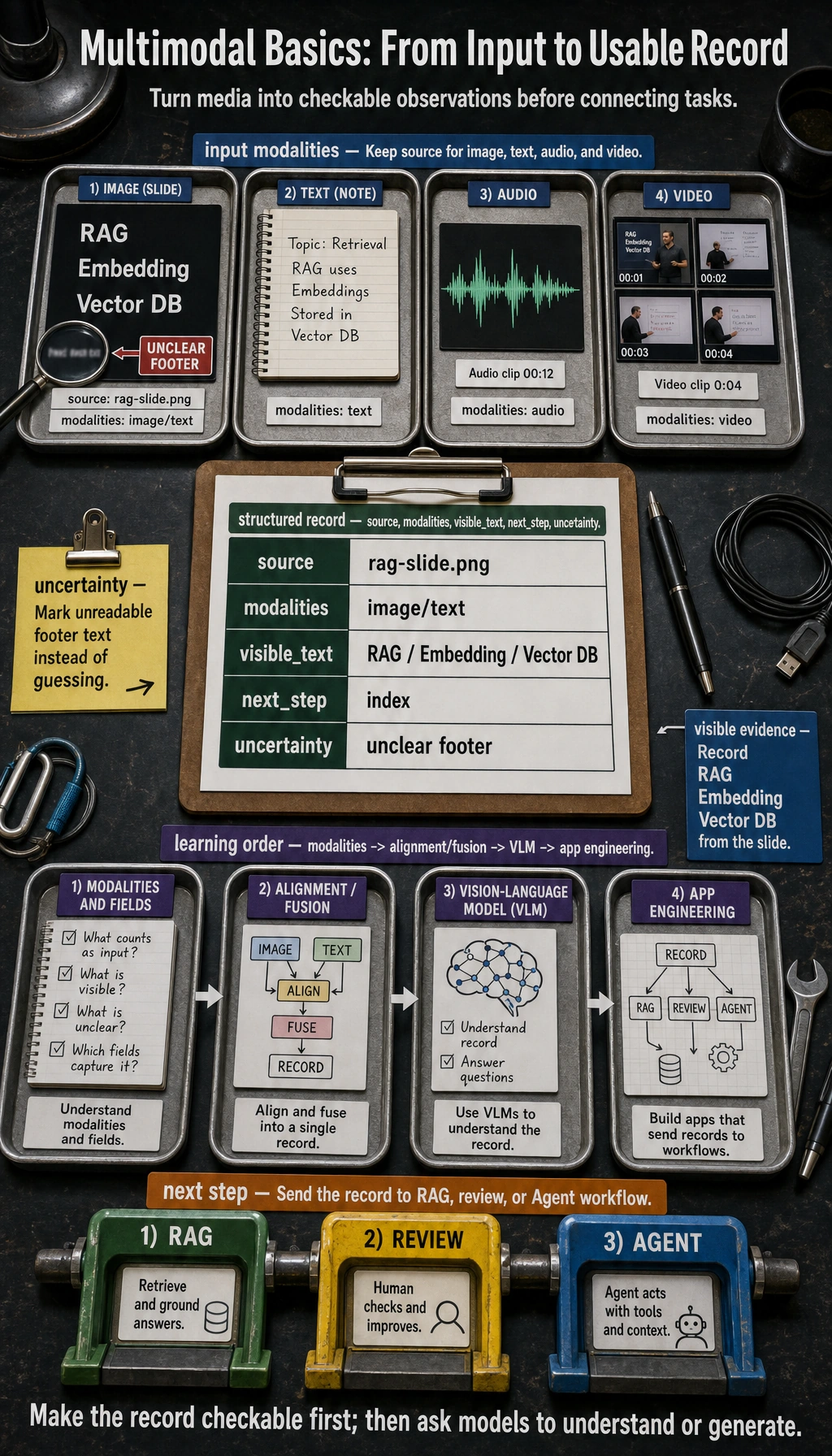

Learn in This Order

Step	Read	Practice Output
1	Modalities and representations	List image/text/audio/video inputs and their structured fields

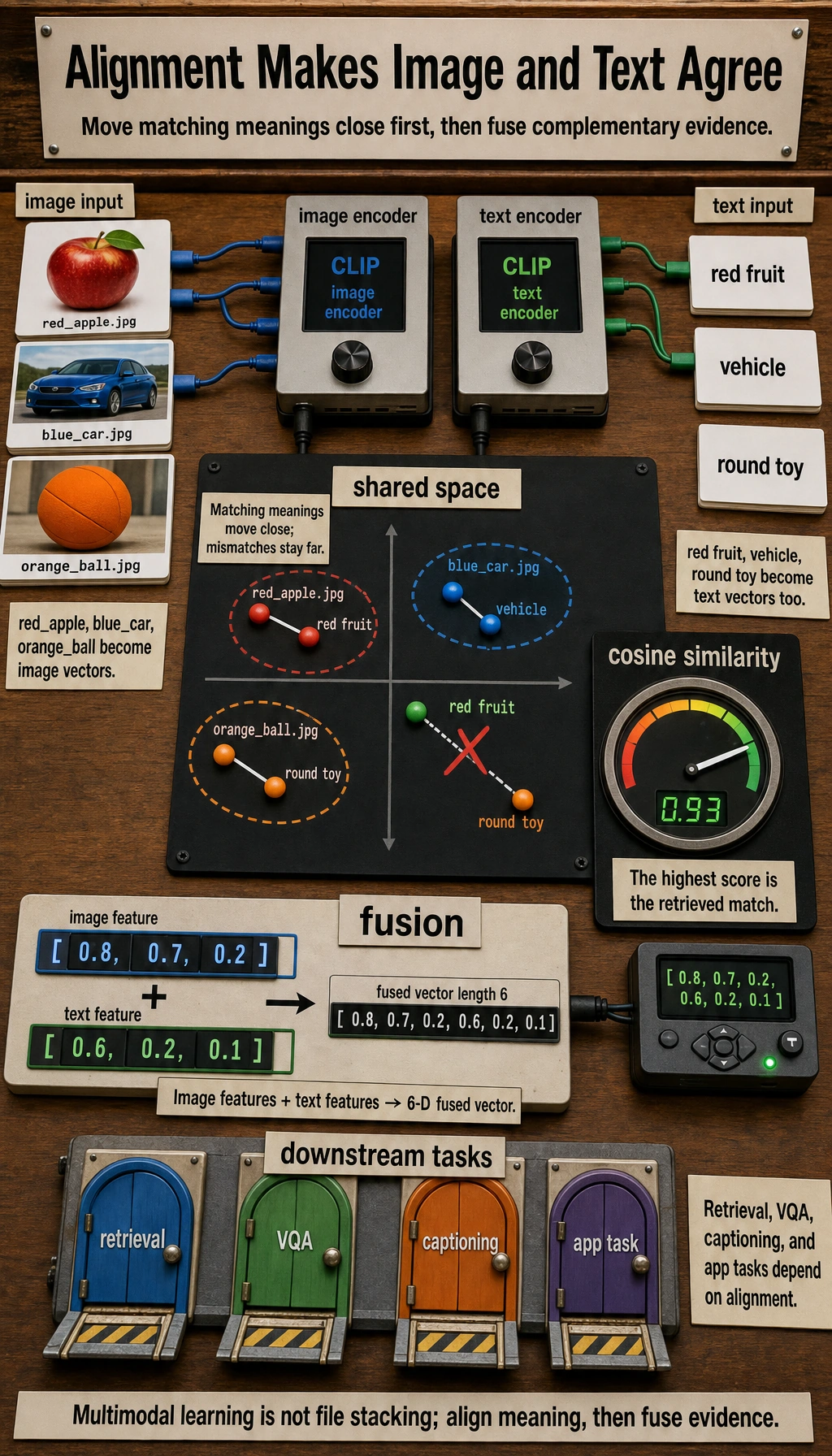

2	Alignment and fusion	Explain how image evidence connects to text tasks
3	Multimodal applications	Build a screenshot or document understanding record

Evidence to Keep

Keep this page’s proof of learning as a small evidence card:

Source Asset

image, screenshot, PDF, audio, video, or text input with version/source note

Structured Record

visible text, objects, regions, timestamp, transcript, or uncertainty

Fusion Result

answer, retrieval record, route decision, or multimodal feature comparison

Failure Check

missing source, OCR error, alignment mistake, uncertainty, or unsupported claim

Expected Output

structured record that can be cited or reviewed later

Pass Check

You pass this chapter when you can turn one image or screenshot into structured text, mark uncertainty, and explain how the result enters a RAG, review, or Agent workflow.

Check reasoning and explanation

1. A passing answer names the modalities involved, the input-output contract, and how text, image, audio, or video evidence is aligned.
2. The evidence should include a real media artifact or trace, plus a note on quality, safety, and failure cases.
3. A good self-check explains whether the task needs generation, understanding, retrieval, tool orchestration, or human review rather than treating every multimodal problem as the same kind of demo.
