7.4.4 Pretraining Engineering [Optional]

Learning Objectives

Understand the biggest difference between pretraining engineering and ordinary small experiments
Understand why data sharding, streaming reads, and checkpoint resume are necessary
Use a runnable example to see how to recover training state after an interruption
Build a basic understanding of throughput, fault recovery, and data version management

Why does pretraining quickly go from “writing a model” to “building a system”?

Because the data is large, the training time is long, and the cost of failure is high

In a small experiment, you might only train on:

A few thousand steps
One local dataset
A few minutes or a few hours

But pretraining usually means:

A very long training cycle
A very large amount of data
Many shards
A high cost when training is interrupted

At that point, the hard part is no longer just whether the model forward pass is correct, but also:

Can data be supplied steadily?
Can training resume after interruption?
Is the throughput stable at each step?

An analogy: not running a program once, but operating a production line

Pretraining is more like a factory production line:

Data shards are like raw material warehouses
The dataloader is like a conveyor belt
Checkpoints are like progress save points
Fault recovery is like restarting after a power outage

If any link is unstable, the overall cost will grow quickly.

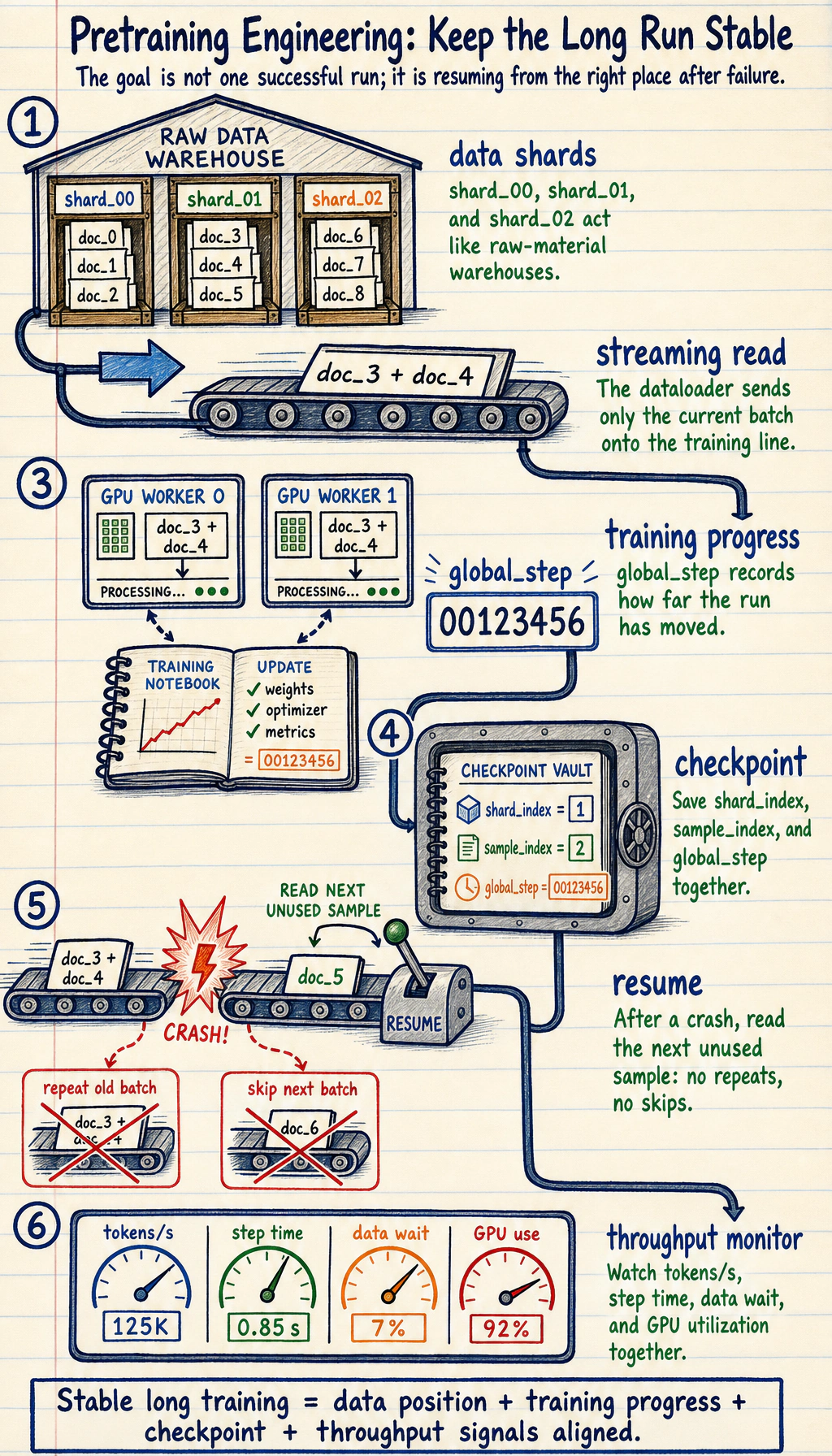

Pretraining engineering production line diagram

The three most important problems in pretraining engineering

How do you feed the data in?

When the dataset is very large, it is usually not loaded into memory all at once. Instead, people use:

Sharded storage
Streaming reads
Reading and packing into token blocks on the fly

What if training is interrupted?

Long training runs can hardly guarantee that nothing will ever go wrong. So checkpointing is not just “saving occasionally,” but something that must include:

Model parameters
Optimizer state
Global step count
Data reading position

Only then can recovery after interruption be correct.

Why does throughput matter?

Because pretraining is very time-consuming. If token throughput per second is unstable, your training plan and cost estimate will drift.

In engineering practice, people often keep an eye on:

tokens/s
step time
data wait time
GPU utilization

First, run a minimal example of “sharding + resume”

The example below simulates a very small pretraining data stream:

Data is split into shards
One batch is taken at a time
Training is “interrupted” halfway through
The state is saved and then resumed

Although it is only a toy version, it captures the most important recovery logic in pretraining engineering.

shards = {
    "shard_00": ["doc_0", "doc_1", "doc_2"],
    "shard_01": ["doc_3", "doc_4", "doc_5"],
    "shard_02": ["doc_6", "doc_7", "doc_8"],
}


def stream_batches(shard_map, batch_size, state=None):
    shard_names = sorted(shard_map)
    shard_index = 0 if state is None else state["shard_index"]
    sample_index = 0 if state is None else state["sample_index"]
    global_step = 0 if state is None else state["global_step"]

    while shard_index < len(shard_names):
        shard_name = shard_names[shard_index]
        shard_data = shard_map[shard_name]

        while sample_index < len(shard_data):
            batch = shard_data[sample_index: sample_index + batch_size]
            next_sample_index = sample_index + batch_size

            next_state = {
                "shard_index": shard_index,
                "sample_index": next_sample_index,
                "global_step": global_step + 1,
            }

            if next_sample_index >= len(shard_data):
                next_state["shard_index"] = shard_index + 1
                next_state["sample_index"] = 0

            yield shard_name, batch, next_state

            sample_index = next_sample_index
            global_step += 1

        shard_index += 1
        sample_index = 0


saved_state = None

print("first run:")
for shard_name, batch, state in stream_batches(shards, batch_size=2):
    print(f"step={state['global_step']:02d} shard={shard_name} batch={batch}")
    if state["global_step"] == 3:
        saved_state = state
        print("simulate crash, save state =", saved_state)
        break

print("\nresume:")
for shard_name, batch, state in stream_batches(shards, batch_size=2, state=saved_state):
    print(f"step={state['global_step']:02d} shard={shard_name} batch={batch}")

Expected output:

first run:
step=01 shard=shard_00 batch=['doc_0', 'doc_1']
step=02 shard=shard_00 batch=['doc_2']
step=03 shard=shard_01 batch=['doc_3', 'doc_4']
simulate crash, save state = {'shard_index': 1, 'sample_index': 2, 'global_step': 3}

resume:
step=04 shard=shard_01 batch=['doc_5']
step=05 shard=shard_02 batch=['doc_6', 'doc_7']
step=06 shard=shard_02 batch=['doc_8']

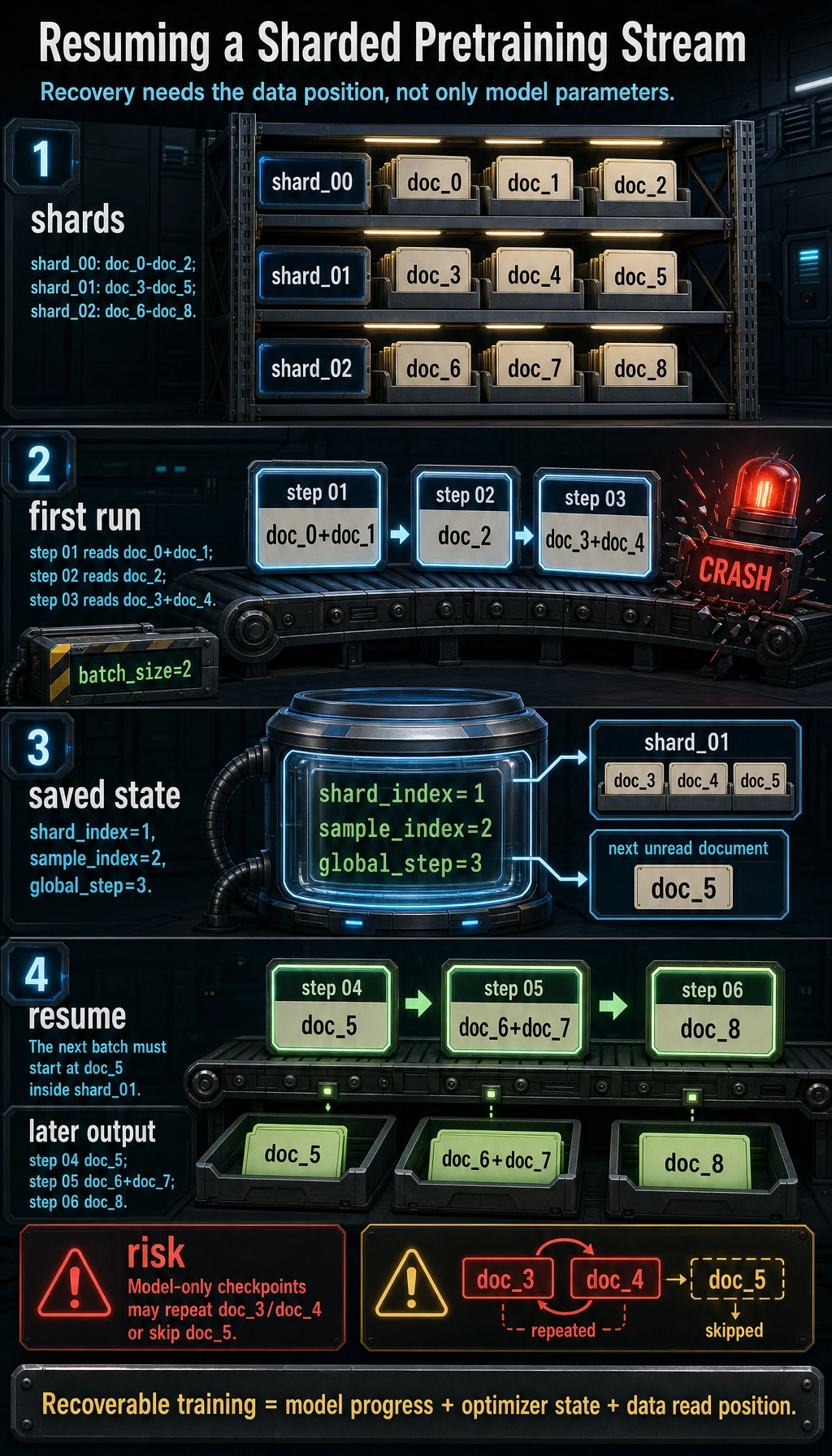

Pretraining shard resume result map

Why is this code more educational than just listing a few shard names?

Because it corresponds to one of the most realistic problems in pretraining:

If training stops halfway, where should it continue reading from after recovery?

If you only save model parameters and not the data position, recovery may:

Re-read the same batch of data
Or skip over part of the data directly

Both will affect training stability.

Why does `state` need to record three things at the same time?

Here we save:

shard_index
sample_index
global_step

They answer:

Which shard has been read?
Where inside the shard are we?
How far has training progressed?

This is the minimal recoverable state.

What else is usually saved in real systems?

Usually also:

Model parameters
Optimizer state
Learning rate scheduler state
Random seeds
Mixed-precision scaler

Why is data sharding almost the default approach?

Because data cannot all fit into memory at once

When the corpus reaches TB scale, “read everything into memory and then train” is simply unrealistic.

So data is split into many shards:

Easier to read in parallel
Easier to recover from failures
Easier to manage versions

Sharding also helps multiple workers run in parallel

In multi-GPU or multi-worker training, different workers can:

Read different shards
Or read different sections of the same shard

This makes data supply more stable.

A very common pitfall: shards are too uneven

If some shards are much larger and some are much smaller, then it is easy for:

Some workers to finish reading very quickly
Other workers to keep dragging behind

This eventually shows up as:

Throughput jitter
GPUs waiting for data

Why is streaming reading more practical than “tokenize everything first, then read”?

Because preprocessing itself can be expensive

In large-scale corpora, tokenization is not free either. If you try to preprocess all the data at once, you often run into:

Storage pressure
Difficulty switching data versions
High cost of rerunning

So many systems use:

Pre-sharding + streaming reads
Or partial preprocessing plus partial online processing

But streaming reads also bring new problems

For example:

Whether the data order is shuffled enough
Whether multiple workers read duplicates
Whether checkpoint recovery is consistent

That is why the data pipeline itself must be designed very carefully.

Why does throughput directly affect training results?

Unstable throughput means many resources are wasted

If the training time per step changes a lot, common reasons may be:

The dataloader is too slow
Shard switching is expensive
I/O is unstable
Worker load is uneven

This directly slows down total training time.

A more hidden problem: the training plan becomes inaccurate

Pretraining is often planned by:

Total training tokens
Expected wall time
Expected checkpoint points

If throughput is unstable, your:

Learning rate schedule
Checkpoint interval
Budget estimate

may all drift as well.

A very simple throughput log example

step_logs = [
    {"step": 1, "tokens": 8192, "seconds": 0.40},
    {"step": 2, "tokens": 8192, "seconds": 0.39},
    {"step": 3, "tokens": 8192, "seconds": 0.78},
]

for log in step_logs:
    tps = log["tokens"] / log["seconds"]
    print(f"step={log['step']} tokens/s={tps:.0f}")

Expected output:

step=1 tokens/s=20480
step=2 tokens/s=21005
step=3 tokens/s=10503

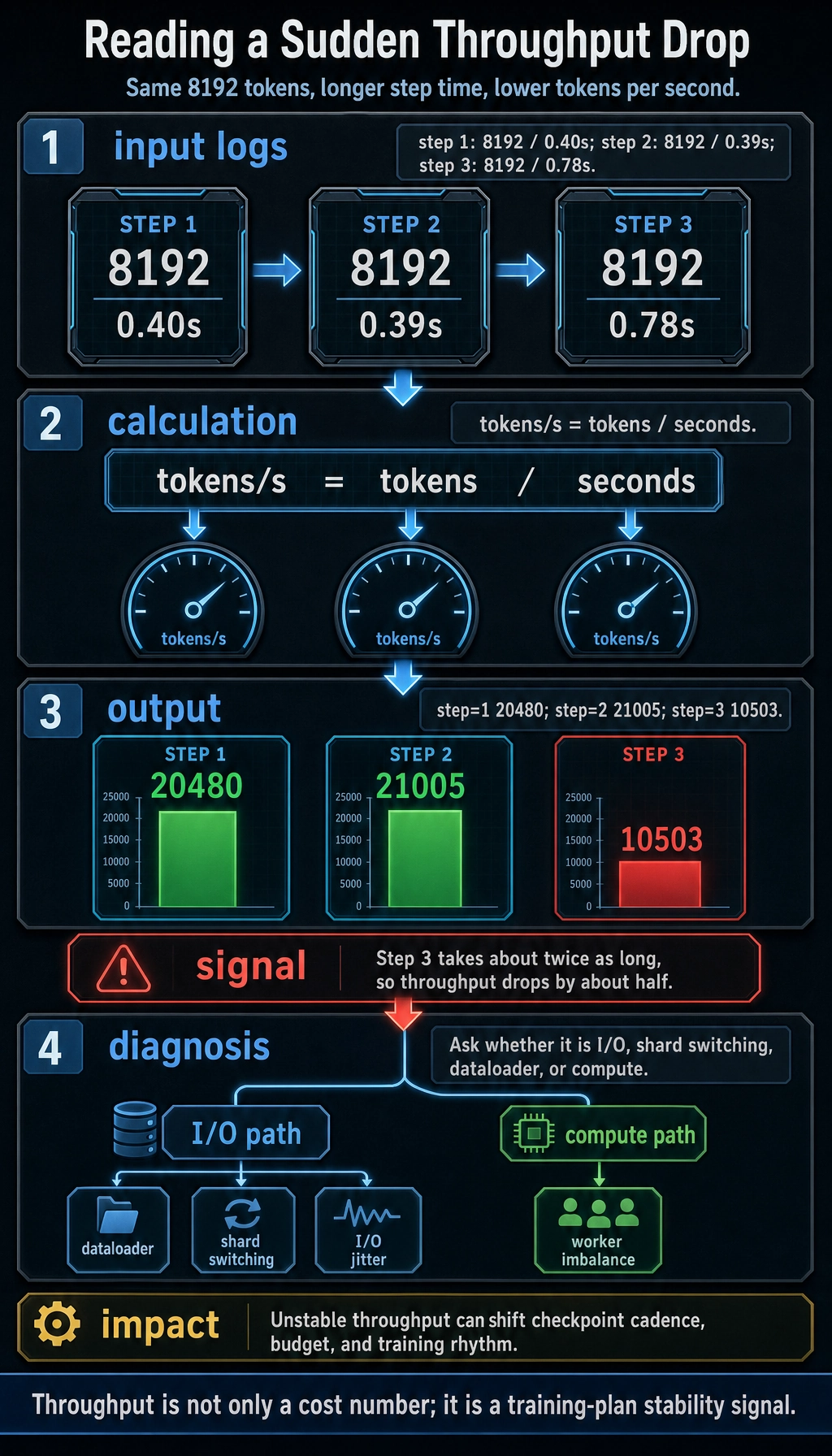

Pretraining throughput jitter result map

If you see step 3 drop significantly, engineers need to keep digging:

Is it an I/O issue?
Or a compute issue?

Two easily overlooked things in pretraining engineering

Data version management

If you cannot clearly state:

Which version of the data was used for the current training run
What the cleaning rules were
How the mixing ratios were set

then later changes in results are almost impossible to attribute.

Recoverability testing

Many teams carefully test:

Whether the model can be trained

but do not carefully test:

Whether it can resume reliably after interruption

Yet for long training runs, recovery ability is often required, not optional.

Common misunderstandings

Misunderstanding 1: First write the model correctly, and fix the engineering later

For pretraining, engineering is not a later decoration, but the prerequisite for actually getting the experiment to run.

Misunderstanding 2: It is enough to save only the model parameters in a checkpoint

Not enough. Without data position and optimizer state, recovery will likely be inconsistent.

Misunderstanding 3: Throughput is only a cost issue and does not affect training quality

Throughput does not directly determine the loss, but it does affect the training plan, stability, and resource utilization, which in turn affects overall results and experiment rhythm.

Evidence to Keep

Keep this page’s proof of learning as a small evidence card:

Shards: data split and resume point
Throughput: tokens/sec or batch progress estimate
Checkpoint: what is saved and when resume happens
Failure Mode: crash, duplicated shard, slow input, or metric drift
Ops Note: pretraining is a data/compute system, not only model code

Summary

The most important thing in this section is not to memorize distributed training jargon, but to build a realistic judgment first:

Pretraining is not just a slightly longer script, but a systems engineering chain that must continuously supply data, support checkpoint recovery, and maintain stable throughput.

Once you build this awareness, when you look at:

Data sharding
Streaming
Checkpoints
Throughput monitoring

you will no longer treat them as “peripheral chores.”

Exercises

Change the batch_size in the example to 1 or 3, and observe how the recovery state changes.
Why does saving only the model parameters, without saving the data reading position, make training recovery unreliable?
Think about it: if some shards are much larger and some are much smaller, what impact will that have on throughput?
Explain in your own words: why does pretraining engineering eventually become “building a system” rather than just “writing a model”?

Reference implementation and walkthrough

Changing batch_size changes how many samples are consumed per step, so the saved recovery state should point to a different next sample or shard offset. The important observation is whether resume continues from the right place without skipping or repeating data.
Model weights alone tell you what the model learned, but not which data has already been consumed. After a crash, the run may silently repeat samples, skip samples, or change the training distribution.
Uneven shards create stragglers. Some workers finish early and wait, throughput becomes unstable, and the effective data mixture can drift if scheduling is not controlled.
Pretraining requires coordinated data pipelines, distributed compute, checkpointing, monitoring, failure recovery, quality control, and cost management. The model code is only one component inside that system.
