9.1.5 Agent System Architecture

Learning Objectives

After completing this section, you will be able to:

• Explain the core components commonly found in an Agent system
• Understand the basic execution loop of a single-Agent architecture
• Run a mini architecture example with state and tool registration
• Know why real systems cannot do without observability and guardrails

---

An Agent Is Not Just “a Model”

The most basic misconception: thinking an Agent is just an LLM + Prompt

A truly usable Agent system usually also needs at least:

• a tool layer
• state management
• an execution loop
• error handling
• safety constraints

The model is important, but it is more like one part of the brain, not the whole system.

You can think of an Agent as a small operating system

It contains:

• a decision center
• a toolbox
• a notebook
• execution logs
• safety rules

That is also why once an Agent enters the engineering stage, it is no longer just about “writing prompts.”

---

Common Core Components

Planner / Decision Maker

Responsible for deciding:

• how to break down the current task
• what to do next
• whether to call a tool

In simple systems, this part may be handled directly by the LLM. In scenarios that require stronger control, it may also be handled by a combination of rules + LLM.

Tool Layer / Tools Layer

This is the key to letting an Agent take action.

Tools may include:

• search
• database queries
• API calls
• file read/write
• calculators

Without tools, many Agents can only “talk” and cannot actually “do.”

---

State, Memory, and Context

State: where the current task is now

State usually records:

• user goal
• completed steps
• intermediate results
• number of retry attempts after failures

This is not the same as “long-term memory.” It is more like the workspace for the current task.

Memory: what is kept across turns

Memory is more about:

• user preferences
• historical projects
• long-term context

Many basic Agents do not necessarily need complex memory at the beginning, but almost all of them need state.

---

A Standard Execution Loop

The minimal loop: perceive, decide, act, observe

flowchart LR
    A["Input goal"] --> B["Decide next step"]
    B --> C["Call tool / generate action"]
    C --> D["Get result and update state"]
    D --> B
    D --> E["Output after the end condition is met"]

    style A fill:#e3f2fd,stroke:#1565c0,color:#333
    style B fill:#fff3e0,stroke:#e65100,color:#333
    style C fill:#f3e5f5,stroke:#6a1b9a,color:#333
    style D fill:#fffde7,stroke:#f9a825,color:#333
    style E fill:#e8f5e9,stroke:#2e7d32,color:#333

Why is this loop so important?

Because the essence of an Agent is not “answer once,” but:

Continuously adjust actions based on intermediate results.

This is one of the fundamental differences between an Agent and a normal chatbot.

Reading Tip

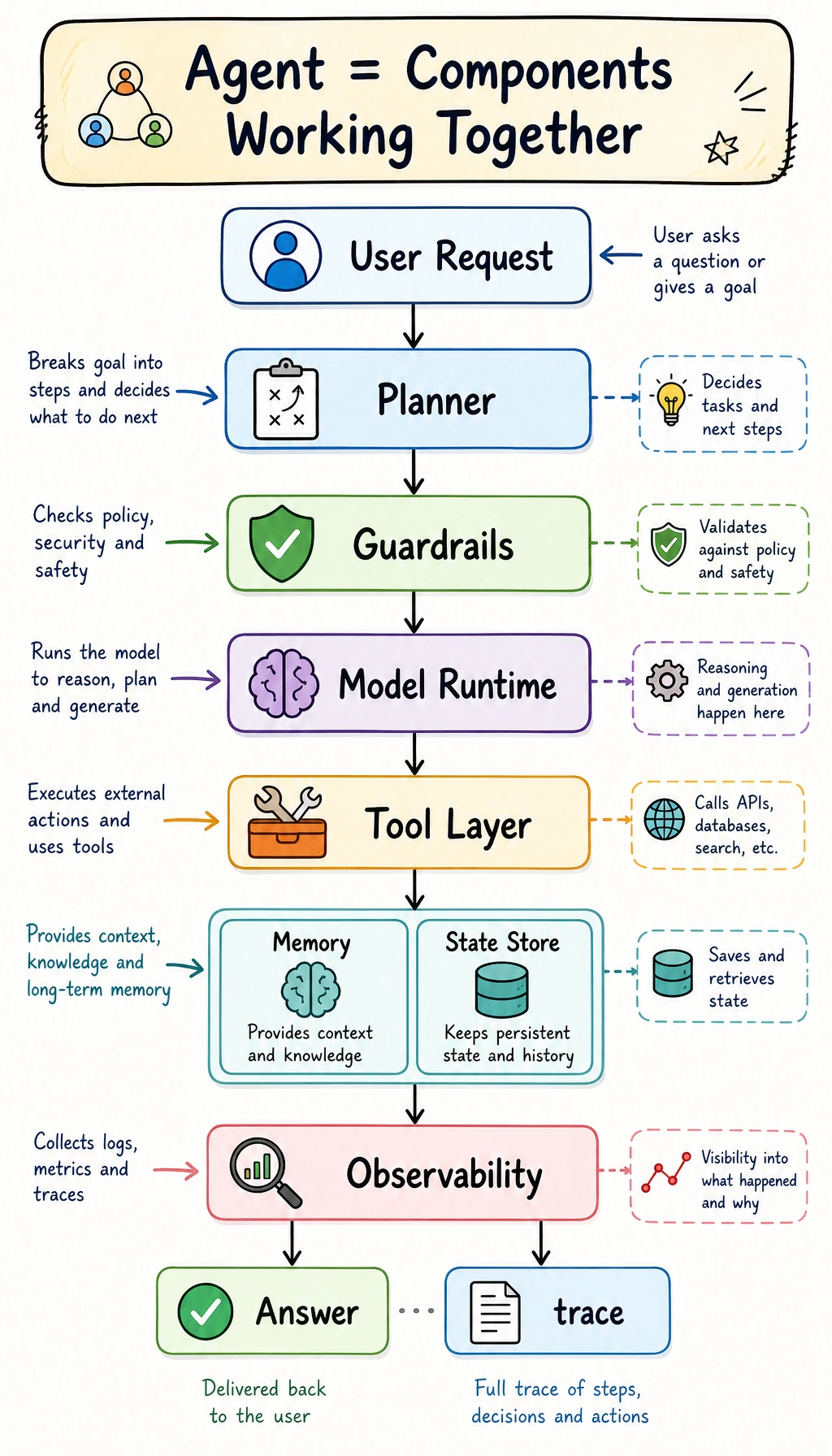

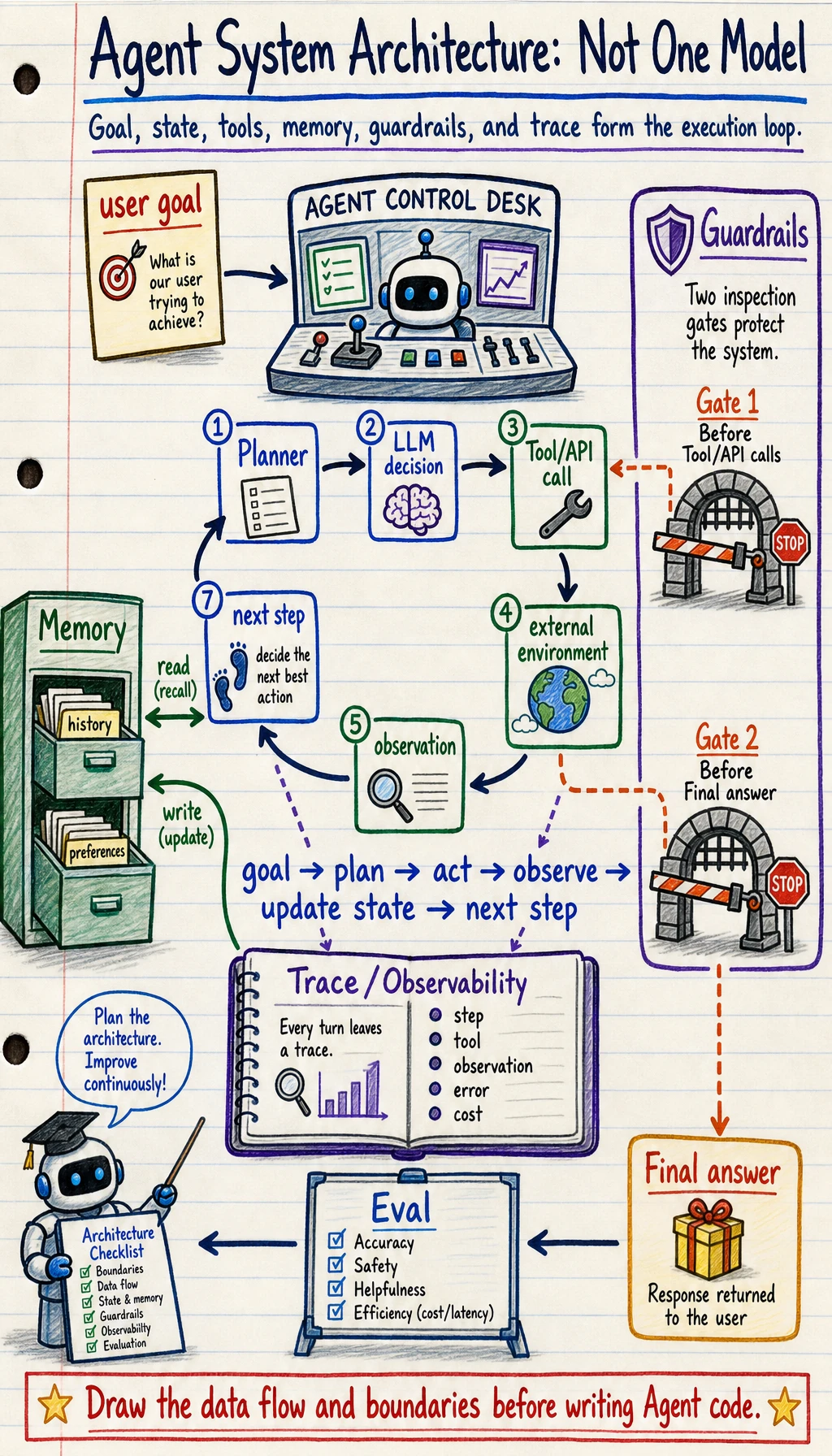

Think of this diagram as the “anatomy of a production Agent”: the Planner decides the next step, the Tool Layer handles actions, Memory and State record context, Guardrails decide what is allowed, and Observability makes every step traceable.

---

A Mini Runnable Architecture Example

In the example below, we explicitly write out:

• a tool registry
• state
• decision logic
• an execution loop

import ast
import operator

OPS = {
    ast.Add: operator.add,
    ast.Sub: operator.sub,
    ast.Mult: operator.mul,
    ast.Div: operator.truediv,
}


def safe_calculate(expression):
    def visit(node):
        if isinstance(node, ast.Expression):
            return visit(node.body)
        if isinstance(node, ast.Constant) and isinstance(node.value, (int, float)):
            return node.value
        if isinstance(node, ast.BinOp) and type(node.op) in OPS:
            return OPS[type(node.op)](visit(node.left), visit(node.right))
        if isinstance(node, ast.UnaryOp) and isinstance(node.op, ast.USub):
            return -visit(node.operand)
        raise ValueError("unsupported_expression")

    return visit(ast.parse(expression, mode="eval"))


def tool_weather(city):
    data = {"Beijing": "Sunny, 22°C", "Shanghai": "Cloudy, 25°C"}
    return data.get(city, "No weather information available for this city")

def tool_calc(expression):
    return str(safe_calculate(expression))

TOOLS = {
    "weather": tool_weather,
    "calc": tool_calc
}

def decide_next_action(state):
    query = state["query"]
    if state["done"]:
        return None

    if "weather" in query and not state["steps"]:
        city = "Beijing" if "Beijing" in query else "Shanghai"
        return {"tool": "weather", "args": city}

    if "calculate" in query and not state["steps"]:
        expression = query.replace("calculate", "").strip()
        return {"tool": "calc", "args": expression}

    return {"tool": None, "args": None}

def run_agent(query):
    state = {
        "query": query,
        "steps": [],
        "observations": [],
        "done": False
    }

    while not state["done"]:
        action = decide_next_action(state)
        if action is None or action["tool"] is None:
            state["done"] = True
            break

        tool_name = action["tool"]
        args = action["args"]
        result = TOOLS[tool_name](args)

        state["steps"].append(action)
        state["observations"].append(result)
        state["done"] = True

    if state["observations"]:
        return state, state["observations"][-1]
    return state, "No executable action"

state, answer = run_agent("calculate 23 * 8")
print("State:", state)
print("Final answer:", answer)

Expected output:

State: {'query': 'calculate 23 * 8', 'steps': [{'tool': 'calc', 'args': '23 * 8'}], 'observations': ['184'], 'done': True}
Final answer: 184

This example is small, but it already contains the core feel of an Agent architecture.

---

Guardrails: Why Are Safety Rails Essential?

Because Agents take actions

And action means risk.

For example:

• calling the wrong tool
• repeating execution
• unauthorized access
• accidentally deleting data

So common guardrails in real systems include:

• tool whitelists
• parameter validation
• maximum step limits
• human approval checkpoints

The simplest guardrail example

import ast
import operator

OPS = {
    ast.Add: operator.add,
    ast.Sub: operator.sub,
    ast.Mult: operator.mul,
    ast.Div: operator.truediv,
}


def safe_calculate(expression):
    def visit(node):
        if isinstance(node, ast.Expression):
            return visit(node.body)
        if isinstance(node, ast.Constant) and isinstance(node.value, (int, float)):
            return node.value
        if isinstance(node, ast.BinOp) and type(node.op) in OPS:
            return OPS[type(node.op)](visit(node.left), visit(node.right))
        if isinstance(node, ast.UnaryOp) and isinstance(node.op, ast.USub):
            return -visit(node.operand)
        raise ValueError("unsupported_expression")

    return visit(ast.parse(expression, mode="eval"))


def safe_eval(expression):
    allowed_chars = set("0123456789+-*/(). ")
    if not set(expression) <= allowed_chars:
        return "The expression contains disallowed characters"
    return str(safe_calculate(expression))

print(safe_eval("3 * (4 + 5)"))
print(safe_eval("__import__('os').system('rm -rf /')"))

Expected output:

27
The expression contains disallowed characters

The core idea of guardrails is not to make the system completely error-free, but to narrow the scope of possible mistakes.

---

Observability: Why Do We Need to See What the Agent Is Doing?

Because multi-step systems are hard to debug when they are opaque

At minimum, you want to see:

• what decision was made at each step
• which tool was called
• what the tool returned
• why the process ended

The minimum observability information usually includes

• input
• action
• observation
• final output
• time cost

Many Agent projects get stuck in the end not because the model is too weak, but because the system itself cannot clearly see where it went wrong.

---

Single Agent and Multi-Agent

A single Agent is usually what you should learn first

Most systems should first make a single Agent solid:

• easier to debug
• easier to converge
• clearer architecture

Multi-Agent is not the default upgrade path

Only when a task is truly suitable for division of labor is Multi-Agent worth considering.

For example:

• Planning Agent
• Execution Agent
• Review Agent

If the task is not complex, Multi-Agent may instead increase coordination costs.

---

Common Beginner Mistakes

Starting with Multi-Agent before understanding Single Agent

This usually makes debugging much harder.

Mixing up state and memory

State is more about the current task, while memory is more about accumulation across tasks.

Having no logging or replay mechanism

Once the system fails, you can only guess.

---

Evidence to Keep

Keep this page’s proof of learning as a small evidence card:

Agent Boundary

how this differs from chatbot or fixed workflow

Goal State Action

goal, current state, next action, observation

Architecture Parts

planner, tools, memory, guardrails, evaluator

Failure Check

over-autonomy, vague goal, missing state, or no trace

Next Action

build the smallest traceable single-agent loop

Summary

The most important takeaway from this section is:

The key to an Agent architecture is not just “whether it can call tools,” but whether it can organize decision-making, execution, state, guardrails, and observability into a stable closed loop.

That is why real Agent engineering is both a model problem and a system design problem.

---

Exercises

1. Add a docs_search tool to the mini Agent.
2. Add a “maximum step count” limit to run_agent().
3. Think about it: if tools often time out, what mechanisms should be added at the architecture level?

Reference implementation and walkthrough

1. docs_search should define query input, permission and filter rules, result format, and no-evidence behavior.
2. The maximum step limit should stop infinite loops and return a trace explaining where execution stopped.
3. Add timeouts, retries with backoff, circuit breakers, fallback paths, queue limits, and observability for tool latency and error rates.
