9.5.2 MCP Protocol Overview

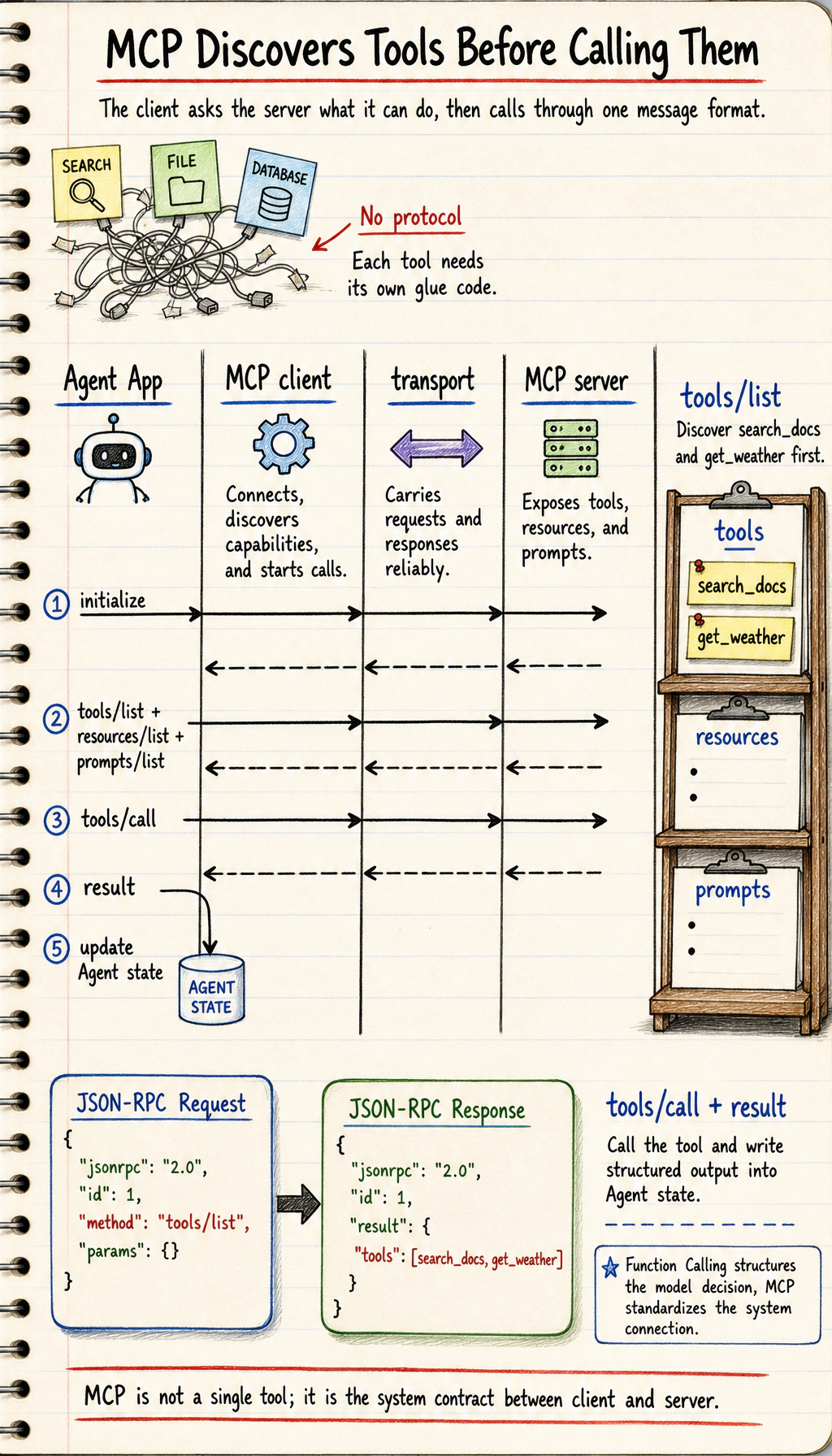

MCP client-server message flow

Learning Objectives

Understand why writing tool integration code on its own can quickly become messy
Understand the core problem MCP is trying to solve
Distinguish the roles of client, server, tool, and transport
Read a minimal MCP-style message example
Build the right intuition for MCP use cases and boundaries

Why do we need MCP?

First, what happens when there is “no protocol”?

If you connect 3 tools to an Agent system:

Search
File system
Database

The most likely situation is:

Each tool has a different interface format
Each tool uses a different way to describe parameters
Error handling is implemented separately for each one
If you switch clients, you have to rewrite the adaptation layer

At first, this may still feel manageable, but as tools increase, the system quickly becomes:

Every time you add a tool, you also add a pile of glue code.

What is the purpose of a protocol?

The purpose of a protocol is not to “make the name sound more advanced,” but to:

Allow different systems to exchange information according to a shared set of rules.

You can compare it to:

USB for peripherals
HTTP for web requests
SQL for database queries

What MCP wants to do is:

Become the “universal port” for tool integration.

What problem is MCP answering?

You can boil it down to three questions:

How does the client know which tools are available on the server?
How does the client call those tools in a unified format?
How are tool call results and context returned?

In other words, MCP is not about one specific tool. It is about:

How the client and the tool server communicate reliably.

The most important MCP roles

Client

The client is the initiator. It is usually responsible for:

Discovering tools
Selecting tools
Starting calls
Receiving results

In real systems, the client is often:

An Agent framework
A chat client
An IDE plugin

Server

The server is the capability provider. It is usually responsible for:

Exposing tools
Receiving call requests
Executing tool logic
Returning results

Tool

A tool is a concrete capability exposed by the server, such as:

search_docs
read_file
run_sql

Transport

The transport layer determines how the client and server send messages back and forth. For example:

Standard input/output
Local process communication
Network connections

Remember this sentence first:

The client decides whether to use a tool, and the server provides the tool.

First, look at a minimal MCP-style message

MCP-style interaction usually has a very clear structure. Here, we will use a simplified JSON-RPC-style message to build intuition.

request = {
    "jsonrpc": "2.0",
    "id": 1,
    "method": "tools/list",
    "params": {}
}

response = {
    "jsonrpc": "2.0",
    "id": 1,
    "result": {
        "tools": [
            {"name": "search_docs", "description": "Search course documents"},
            {"name": "get_weather", "description": "Query weather"}
        ]
    }
}

print(request)
print(response)

Expected output:

{'jsonrpc': '2.0', 'id': 1, 'method': 'tools/list', 'params': {}}
{'jsonrpc': '2.0', 'id': 1, 'result': {'tools': [{'name': 'search_docs', 'description': 'Search course documents'}, {'name': 'get_weather', 'description': 'Query weather'}]}}

The most important thing in this example is not the field names, but the structure

It teaches you that:

Requests and responses come in pairs
Each message has a clear method name
The result field is not arbitrary text, but structured data

This is the stability that a protocol brings.

Why is “tool discovery” such a big deal?

Without a protocol, the client usually has to hard-code in advance:

Tool names
Parameter formats
Return formats

This leads to:

Strong coupling between client and server
Code changes every time the tool set changes

One important value of MCP is:

Discover first, then call.

In other words, the client does not need to hard-code all tool details ahead of time. It can ask through the protocol:

What tools do you have?
How is each tool described?

This makes the tool ecosystem more flexible.

What is the relationship between MCP and Function Calling?

These two concepts are easy to mix up.

Function Calling is more like a “structured calling ability at the model layer”

It focuses on:

Whether the model can produce a structured calling intent

For example:

{
  "name": "search_docs",
  "arguments": {"query": "refund policy"}
}

MCP is more like a “tool integration protocol at the system layer”

It focuses on:

How the client and server discover tools
How tools are described
How tools are called
How results are returned

So more accurately:

Function Calling solves “how the model emits a structured call,” while MCP solves “how the system standardizes tool integration.”

They can be used together, but they are not the same thing.

What scenarios is MCP good for?

Especially suitable for

Lots of tool types
Lots of client types
A need for unified tool integration
A need to expand the tool ecosystem later

For example:

IDE assistants
Desktop Agents
Internal enterprise tool platforms

Cases where you may not need MCP right away

If you only have:

A small script
Two or three built-in tools
No need for multiple client integrations

Then a local tool-calling layer may already be enough.

So do not think of MCP as something you “must” use. Instead, understand it as:

When the tool ecosystem and integration complexity grow, protocol-based design becomes increasingly valuable.

A more down-to-earth analogy: MCP is like a “tool power strip”

You can think of it this way:

A tool is like an appliance
The client is the person using these appliances
MCP is like a universal power strip and interface standard

Without a universal power strip:

Every appliance has a different connector
Every time you plug one in, you have to adapt again

With a universal power strip:

New appliances are easier to connect
The user does not need to relearn a new set of rules each time

That is the engineering value of a protocol.

Evidence to Keep

Keep this page’s proof of learning as a small evidence card:

Capability: resource, prompt, or tool exposed by server
Contract: schema, transport, permissions, and error shape
Call Trace: discovery, invocation, response, and failure handling
Failure Check: incompatible schema, missing auth, unsafe tool, or server error
Integration Action: validate server contract before adding autonomy

Common beginner mistakes

Thinking MCP is a specific tool library

It is not. It is first and foremost a protocol and an interaction convention.

Thinking that once you have MCP, tools will automatically work

They will not. The protocol solves the integration layer. You still need to handle calling strategy, permissions, and evaluation yourself.

Mixing up MCP and Function Calling as if they were the same thing

They are related, but they are at different levels.

Summary

The most important thing in this section is not to memorize the word “protocol,” but to understand:

The core value of MCP is to make discovery, description, calling, and result exchange between the client and the tool server into a more unified system contract.

Once you build this intuition, later when you learn architecture, servers, clients, and ecosystems, you will not just feel like you are looking at a pile of interface names.

Exercises

Explain in your own words the roles of client, server, tool, and transport.
Think about why “tool discovery” itself is worth being standardized by a protocol.
If your system only has 2 fixed tools, why might you not need MCP yet?
Explain in your own words the difference between MCP and Function Calling.

Solution approach and explanation

A reasonable answer is: the client is the caller that owns the user goal and chooses when to use capabilities; the server exposes capabilities with a contract; a tool is one executable capability; transport is the channel that carries discovery, calls, and responses.
Tool discovery is worth standardizing because the client needs to know what exists, what parameters are valid, what errors look like, and what permission boundaries apply before it can safely plan a call.
With only two fixed tools, hand-written integration may be simpler, easier to debug, and cheaper to maintain. MCP starts to pay off when tools change, multiply, come from different teams, or need reusable discovery and contracts.
Function Calling is usually the model-facing mechanism for selecting a structured function call. MCP is a broader client-server protocol for discovering and invoking external capabilities. In practice they can work together, but they sit at different layers.
